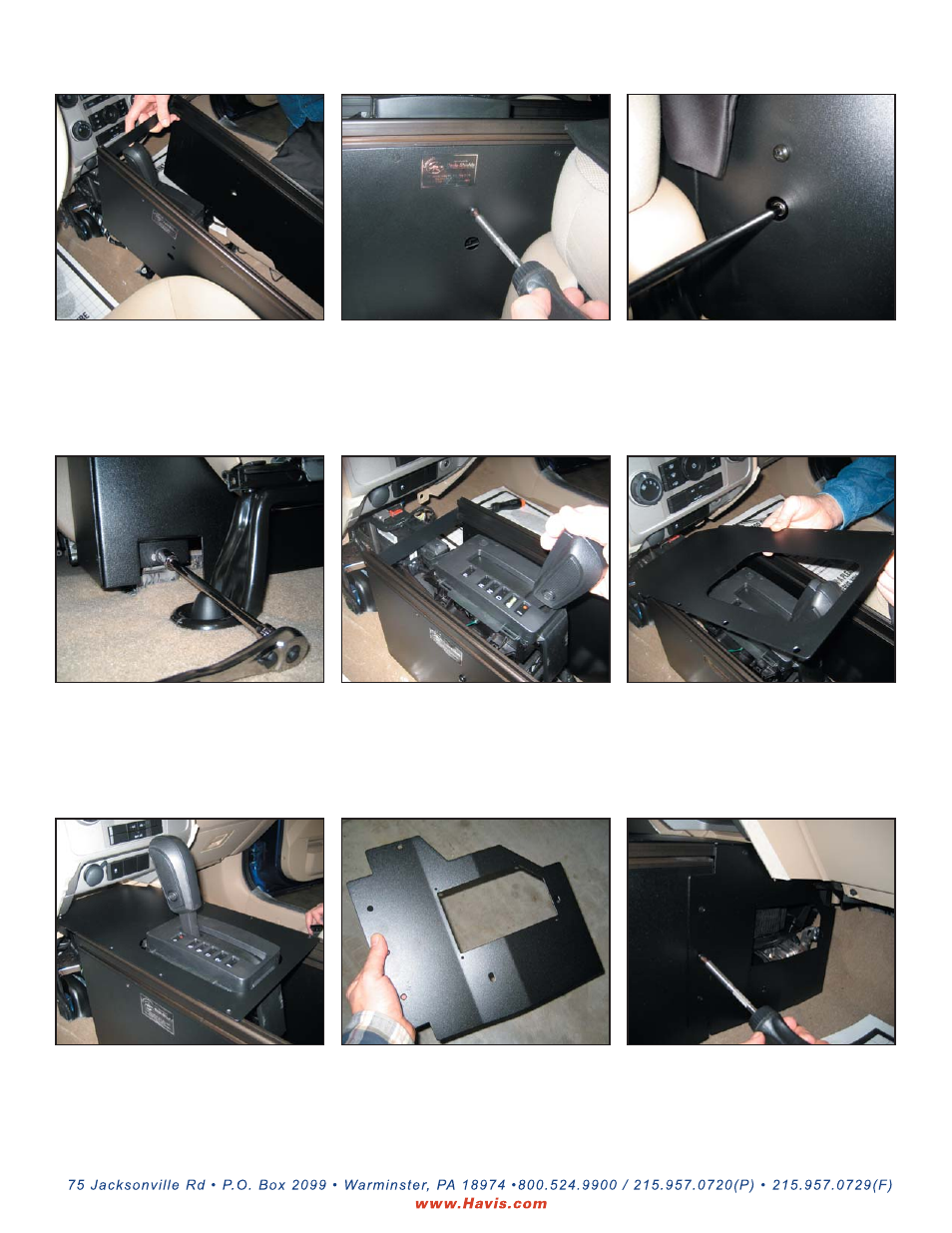

Place new console housing
between seats
Tighten screws that attaches “Z”
bracket to OEM mount
Attach to “Z” brackets with 1/4 x
3/4 Phillips head bolts
Make sure plate is evenly spaced to
allow trim bezel remounting
**DO NOT ATTACH YET**
Attach to console with #8 x 1/4”
fl at head sheet metal screws
Passenger side fi ller panel
Attach rear lower console to OEM
fl oor mount with OEM hardware
(10mm socket)
Place front console cover plate
around shift lever
Move shift lever to rear position
3
