Connections to other equipment (continued) – Hitachi 42PD380TA-P2 User Manual

Page 17

background image

14

Rear lower of the Plasma Television

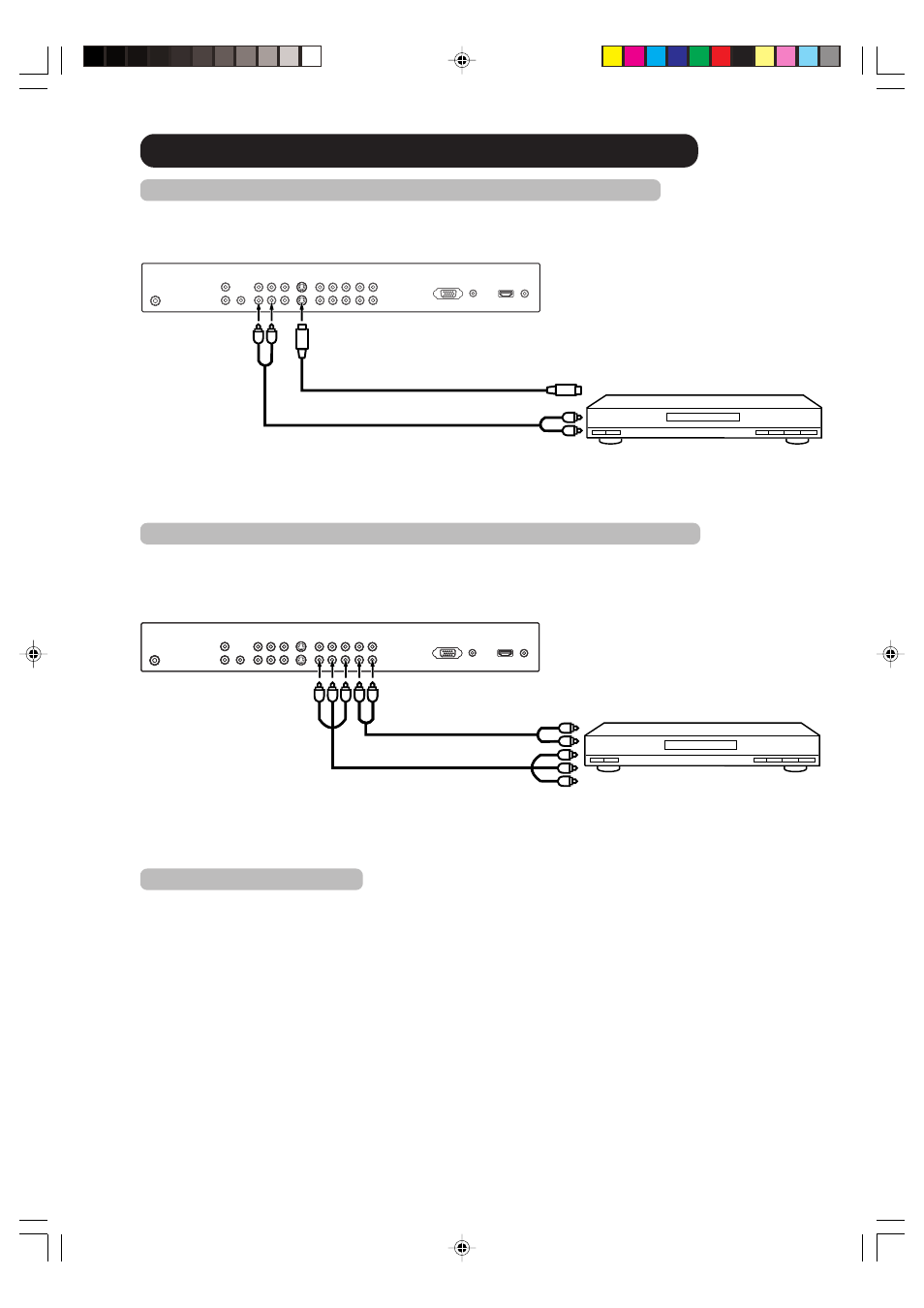

If your DVD player or Satellite receiver has a S-Video out jack, connect cords as shown.

Rear lower of the Plasma Television

To S-Video OUT

Audio cord (not supplied)

To Audio OUT

S-Video cord (not supplied)

To S-VIDEO IN 1 (or 2)

If your DVD player has component video out jacks, connect your Plasma Television to a DVD player using
a component video cord. It can greatly enhance picture quality and performance.

To Component OUT

To Audio OUT

Audio cord (not supplied)

Video cord (not supplied)

To AUDIO

IN 1 (or 2)

To COMPONENT-1

(or 2)

Connections to other equipment (continued)

To connect the Plasma Television to a DVD player/Satellite receiver

To connect the Plasma Television to a DVD player with component video

Note:

Component Video input of this unit are for use of device which output interlaced signals (PAL: 576i/1080i
or NTSC: 480i/1080i) and progressive signals (PAL: 576p/720p or NTSC: 480p/720p).
