Antenna connection

Note: Before you connect something:
• To avoid every possible damage, turn off the TV-unit with Main Power Switch and then pull the power

plug out.

• Arrange the desired connection.
• When the connection made up firmly and correctly, connect the unit to AC100-240V, 50/60Hz and turn

the unit on.

• For safety, install an external aerial conforming to AS1417.1 (applicable for Australia only).

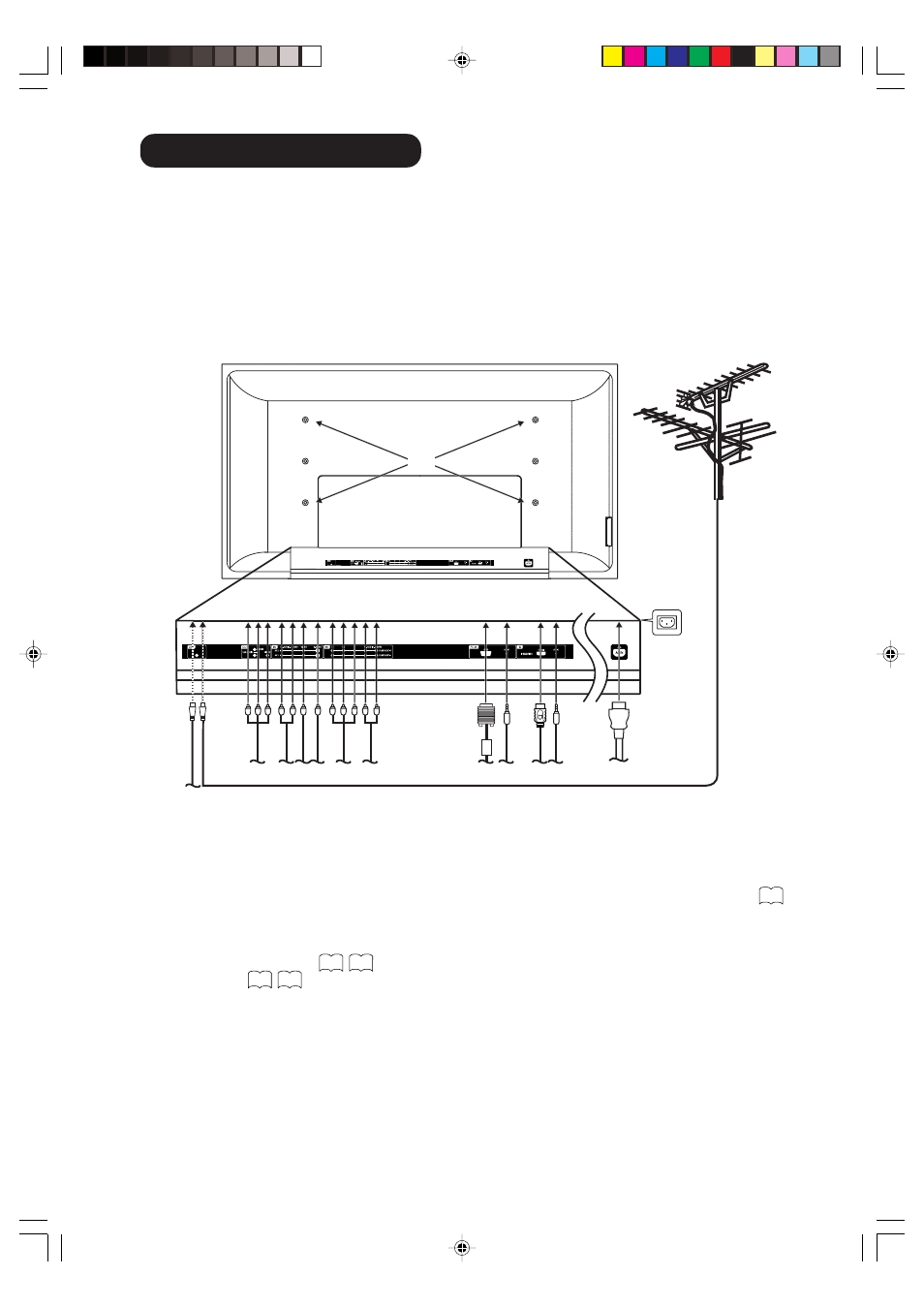

Connect the antenna as shown below. Connect the unit with an outdoor antenna (H) or a cable-net (A). In
case of reception disturbance, consult with a specialist of antenna.

(A) Antenna connection: The built-in Hyperband CATV tuner can receive all analog cable television

programs.

(B) Variable Audio/Video output: To connect with an audio amplifier and external speakers, and adjust

the audio level using the TV’s remote control.
To control the audio, turn on the TV and the stereo amplifier, and turn off the TV's built-in speakers

Signal from Video output jack are composite video signals.

(C) AV1/AV2 input: To the connection of audio and composite video/S-video cables.
(D) COMPONENT-1/2 input: To the connection of audio and component cables.
(E) PC Monitor input (PC):

(F) HDMI input:

(G) Power supply: Connect the supplied power cable. Connect to AC100-240V, 50/60Hz.

Never repair a damaged AC power cord with isolation-tape. Have a specialist exchange with a new AC
power cord. Do not let your pet loose near the cable. To bite isolation is danger of life. Above all, a rat,
a parakeet, a hamster, a rabbit and other toothed animals can bite the cable.

(H) Outdoor antenna: If the outdoor antenna already exists, you can also connect to it for analog TV-

program.

(I) Bracket holes: To fix a wall mounting bracket (not supplied) here, remove the screws. If the unit is

mounted on the wall, contact the shop where you purchased the unit for advice, and leave the
installation work to experts. Incomplete installation work can cause you injuries.

(C)

(A)

(B)

(G)

(F)

(H)

(I)

(D)

(E)
