System Board System Board System Board System Board
System Board Form Factor System Board Form Factor System Board Form Factor System Board Form Factor 14.2 x 11 inches
Processor Socket Processor Socket Processor Socket Processor Socket Dual LGA 1366
CPU Bus Speed CPU Bus Speed CPU Bus Speed CPU Bus Speed QPI: Up to 6.4GT/second, depending on processor
Chipset Chipset Chipset Chipset Intel® 5520
Super I/O Controller Super I/O Controller Super I/O Controller Super I/O Controller SMSC SCH5327, Rev B
Memory Expansion Slots Memory Expansion Slots Memory Expansion Slots Memory Expansion Slots 6 (3 per processor)
Memory Type Supported Memory Type Supported Memory Type Supported Memory Type Supported DDR3, UDIMM (Unbuffered), ECC
Memory Modes Memory Modes Memory Modes Memory Modes NUMA (Non-Uniform Memory Architecture), Memory Node Interleave
Memory Speed Supported Memory Speed Supported Memory Speed Supported Memory Speed Supported 800, 1066, & 1333MHz
Memory Memory Memory Memory
Maximum Memory Supports up to 24GB
Memory Configuration Memory Configuration Memory Configuration Memory Configuration

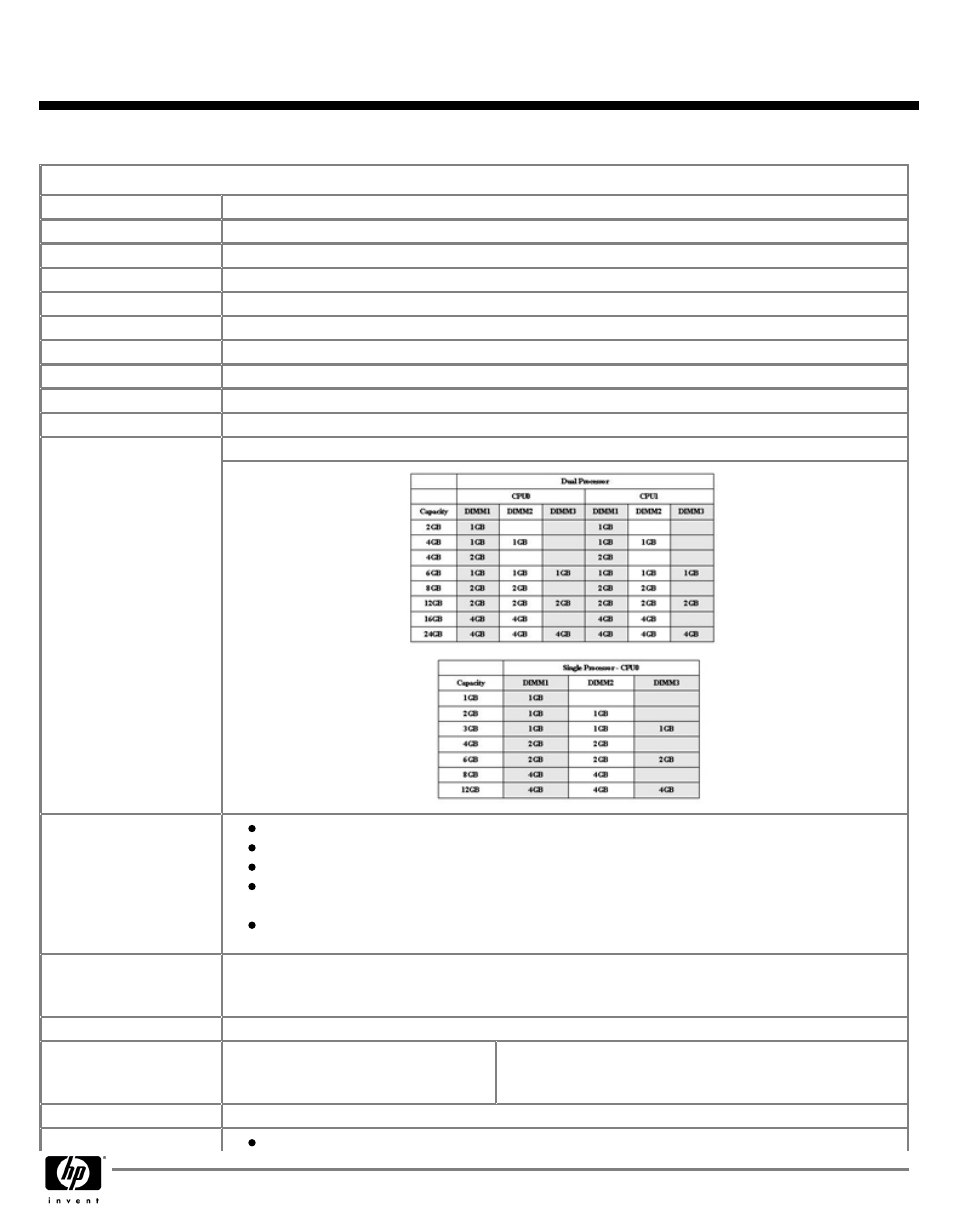

(Supported) Not all memory configurations possible are represented below.
Only ECC DIMMs are supported.
Do not install memory modules into memory slots if corresponding processor is not installed.
Dual processor configurations with memory modules installed for only one processor is not
supported.
The 4GB DIMM for Z400 and Z600 is not compatible with the Z800 4GB DIMM. They are not
interchangeable.
PCI Express Connectors PCI Express Connectors PCI Express Connectors PCI Express Connectors
(Gen2 Rev 0.7 connectors) 2 PCI Express x16 Gen2 graphics
1 PCI Express Gen2 (x8 mechanically, x4 electrically)
1 PCI Express Gen1 (x8 mechanically, x4 electrically)
PCI Connectors PCI Connectors PCI Connectors PCI Connectors (5.0V) 2 full length 33 MHz 32-Bit
Interfaces Supported Interfaces Supported Interfaces Supported Interfaces Supported SATA SATA SATA SATA Integrated 6-channel SATA 3.0Gb/sec controller with RAID 0,
1, 5, 10 and NCQ. (Factory integrated RAID is Microsoft
Windows only)
Serial Attached SCSI Serial Attached SCSI Serial Attached SCSI Serial Attached SCSI Requires Optional PCIe card
Integrated RAID Integrated RAID Integrated RAID Integrated RAID Integrated SATA RAID
QuickSpecs
HP Z600 Workstation HP Z600 Workstation HP Z600 Workstation HP Z600 Workstation
System Technical Specifications
DA - 13277 North America — Version 2 — April 13, 2009 Page 14
