Page 68: Intermittent pilot ignition valve assembly
Heat & Glo • 8000TR-OAK, 8000TR-OAK-IPI, 8000TRLP-OAKIPI • 2057-900 Rev. P • 11/08
68
Intermittent Pilot Ignition
Valve Assembly
Service Parts

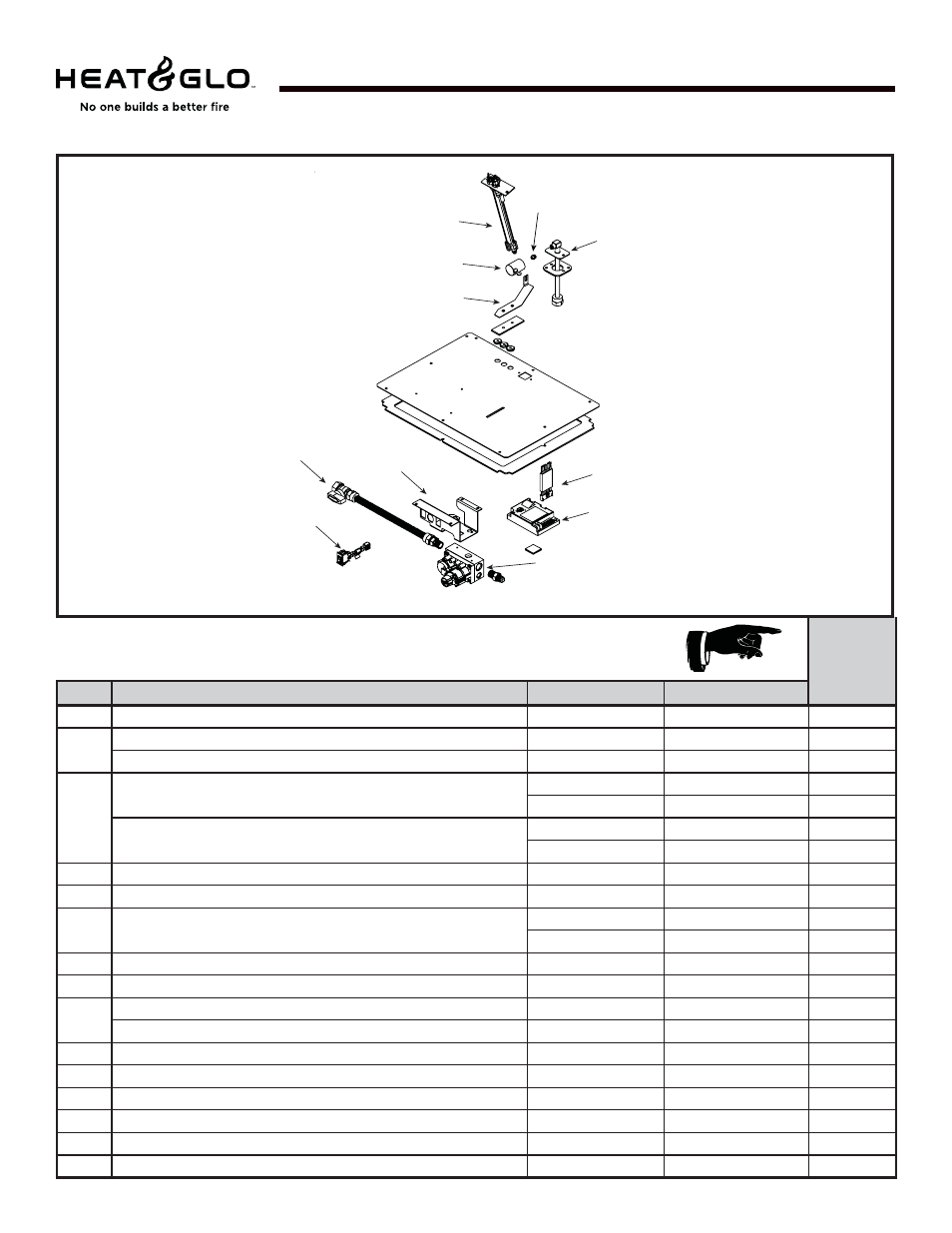

Valve Assembly Diagram/ Parts List
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for
your appliance please provide model number and serial number. All parts listed in this manual may
be ordered from an authorized dealer.
Stocked
at Depot
ITEM
DESCRIPTION
COMMENTS
PART NUMBER
1
12” Flexible Gas Connector
383-302A
Y
2
Burner Orifi ce NG (#31C)
582-831
Y
Burner Orifi ce LP (1.8 mm)
582-818
Y
3
Pilot Assembly NG
Pre 002927628
4021-025
Y
Post 002927628
2090-012
Y
Pilot Assembly LP
Pre 002927628
4021-026
Y
Post 002927628
2090-013
Y
4
Shutter Sleeve (NG)
2026-130
Y
5
Shutter Bracket Assembly
2026-017
Y
6
Valve Bracket
Pre 021116425
2025-101
Post 0021116425
2118-104
7
Flex Ball Valve Assembly
302-320A
Y
8
ON/OFF Rocker Switch
060-521A
Y
9
Valve NG
750-500
Y
Valve LP
750-501
Y
10
Module
593-592
Y
11
Wire Assembly
593-590A
Y
Gasket Assembly
385-402A
Ground Strap
2025-512
Battery Pack
593-594A
Y
3 Volt Transformer
593-593A
Y
8000TR-OAK-IPI
Beginning Manufacturing Date: Feb. 2005
Ending Manufacturing Date: ______
8
1
11
4
3
9
10
6
2
7
5
