Heat & Glo • 8000TR-OAK, 8000TR-OAK-IPI, 8000TRLP-OAKIPI • 2057-900 Rev. P • 11/08 61
16 16
Reference Materials

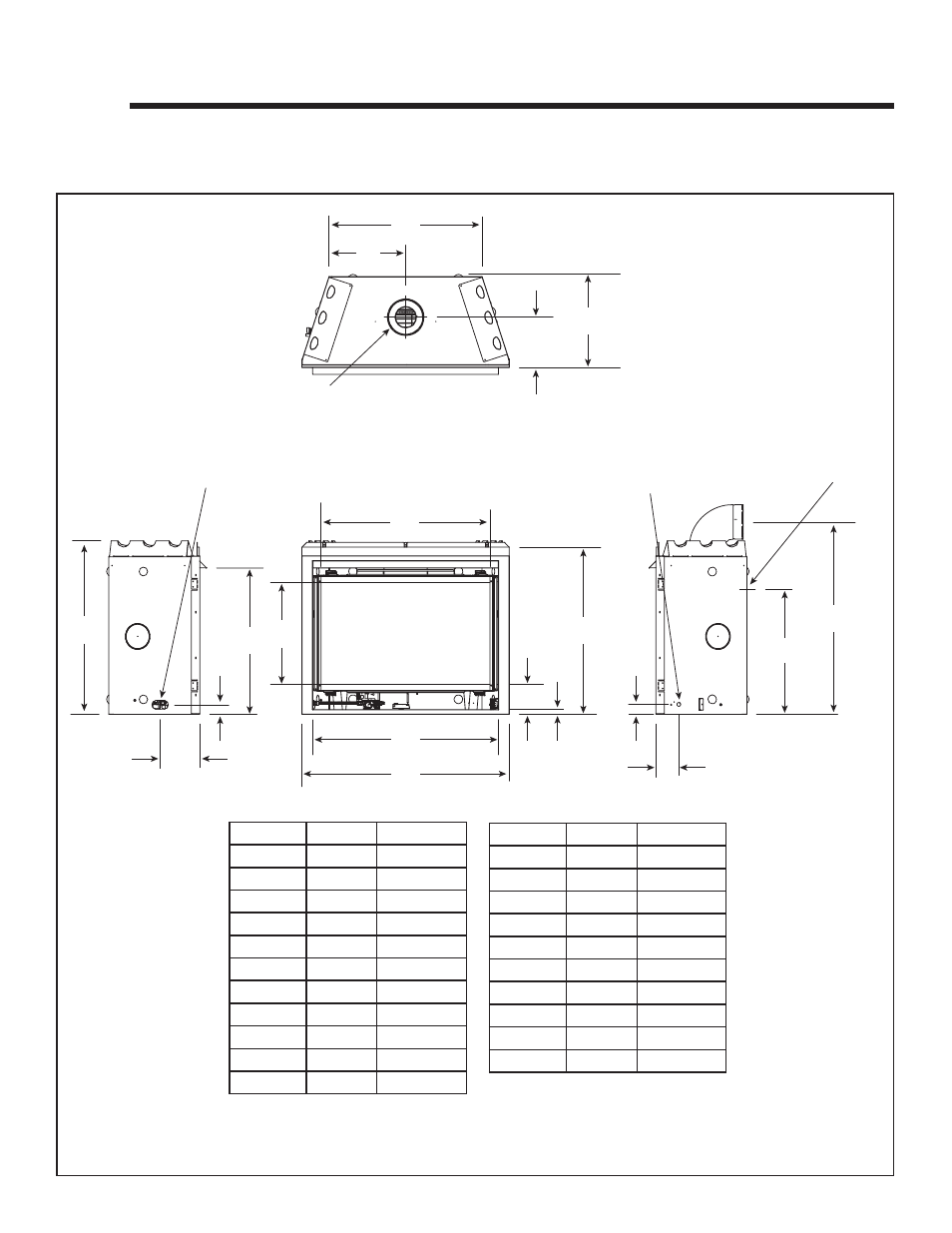

A. Appliance Dimension Diagram
Dimensions are actual appliance dimensions. Use for reference only. For framing dimensions and clearances refer to Section 5.
Figure 16.1 Appliance Dimensions
D
S
P
M
L
N
F
J
K
Ø E
C
B
A
H
G
Q
R
T
O
I
GAS LINE
ACCESS
ELECTRICAL
ACCESS
Ø U
CL
CL
Location Inches Millimeters
L 43 1091
M 48 1221
N 7 177
O 1-1/8 28
P 38-3/4 983
Q 2-1/4 58
R 5-1/4 134
S 28-7/8 733
T 44-1/4 1124
U 8 203
Location Inches Millimeters
A 35-1/2 900
B 17-3/4 450
C 21-1/2 548
D 11-5/8 297
E 8 203
F 40 1019
G 9-1/8 232
H 2-1/4 56
I 33-7/8 860
J 23-1/2 598
K 39-1/4 996
