Heat & Glo • 8000TR-OAK, 8000TR-OAK-IPI, 8000TRLP-OAKIPI • 2057-900 Rev. P • 11/08 19
5 5
Framing and Clearances
A. Selecting Appliance Location
When selecting a location for the appliance it is important to
consider the required clearances to walls (see Figure 5.1).
WARNING! Risk of Fire or Burns! Provide adequate
clearance around air openings and for service access.
Due to high temperatures, the appliance should be locat-
ed out of traffi c and away from furniture and draperies.
NOTICE: Illustrations refl ect typical installations and are
FOR DESIGN PURPOSES ONLY. Illustrations/diagrams
are not drawn to scale. Actual installation may vary due to
individual design preference.

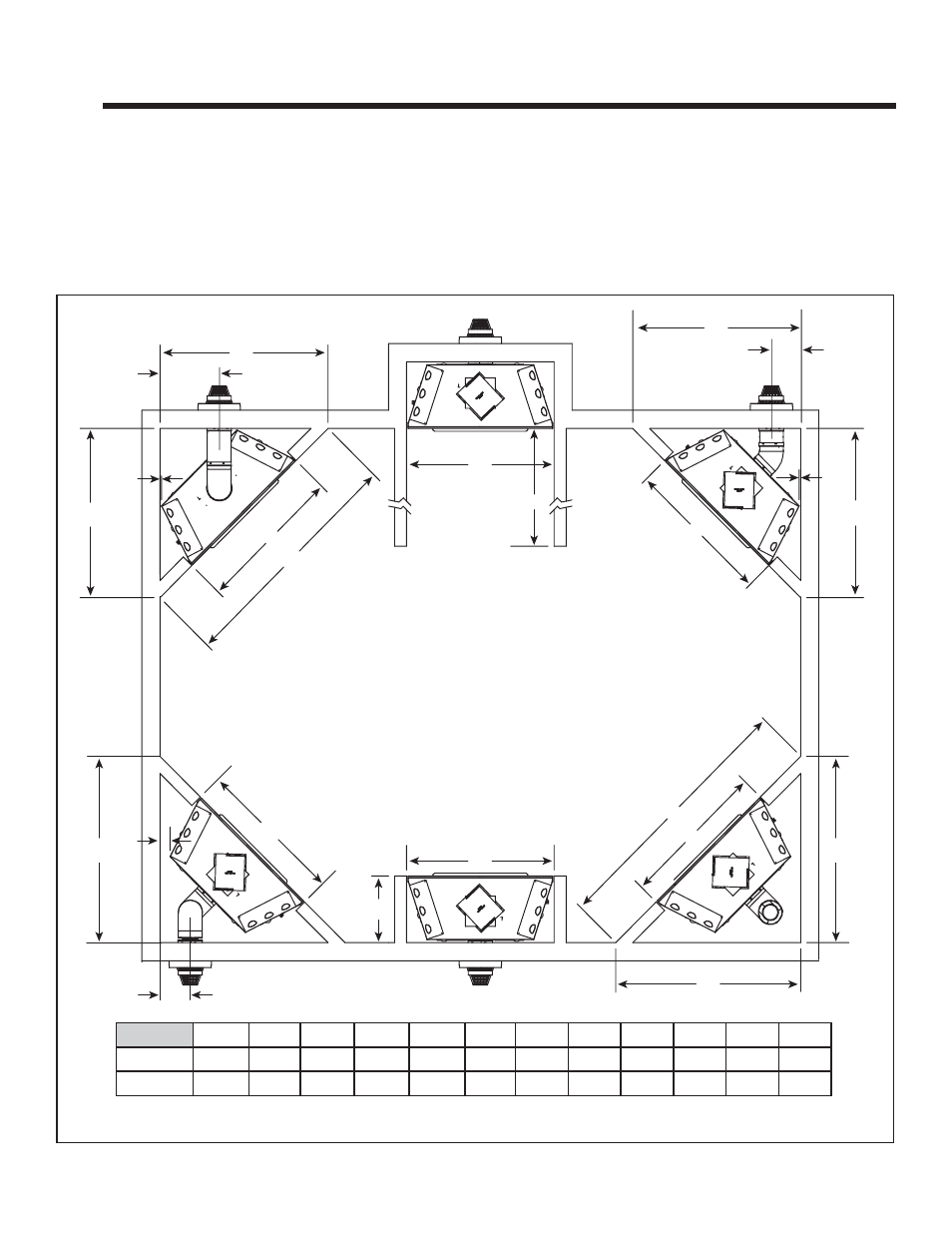

Figure 5.1 Appliance Locations
A B C D E F G H I J K L
Inches 55-7/8 49 79 61-1/2 87 22 1/2 38-7/8 3-3/8 10 13 19-3/4
Millimeters 1419 1245 2007 1562 2210 559 13 987 86 254 330 502
A
A
A
B
B
B
B
B
C
D
E
F
G
B
G
H
I
ALCOVE
INSTALLATION
REAR VENT
NO ELBOWS
TOP VENT
ONE 90° ELBOW
REAR VENT
ONE 45° ELBOW
REAR VENT,
HORIZONTAL TERMINATION,
TWO ELBOWS
REAR VENT
ONE ELBOW
L
D
J
K
D
A
