1. Connect signal from source to both CH A and CH B
inputs.
2. Move Biamp/Stereo switch to Stereo input mode.
3. Move Stereo/Mono switch to Stereo mode.
4. Select desired speaker load (8
Ω
/4
Ω
/2
Ω
) for each
channel – CH A & CH B loads do not need to match.
5. Connect appropriate speaker load 8
Ω
/4
Ω
/2
Ω
to 5-way
binding posts.
6. Adjust CH A & CH B level controls independently.
1. Connect signal from source to CH B input.
2. Move Biamp/Stereo switch to BIAMP input mode.
3. Move Stereo/Mono switch to Stereo mode.
4. Select desired speaker load (8
Ω
/4
Ω
/2
Ω
) for each
channel — CH A and CH B loads do not need to match.
5. Connect appropriate speaker load 8
Ω
/4
Ω
/2
Ω
to 5-way
binding posts.
6. Adjust CH A & CH B level controls independently.
Power
70V
4
Ω
Load
2
Ω
100V
8
Ω
70V
4
Ω
2
Ω
100V
8
Ω
BIAMP STEREO
CH A
IN
—
+
300W
2
Ω
– 8
Ω
Mono,70V,100V
CH B
IN
CH A
OUT
CH B
OUT
+
—
300W
2
Ω
– 8
Ω
—
+
600W
For 70V, 100V, or Mono
• Use CH B input
• Load across RED
terminals
• Set load switches to one
half load impedance
A Division of
Rockford Corp.
Tempe, AZ 85281
Made in the U.S.A.
S R 2 3 0 0
300 W Stereo, 2
Ω
– 8
Ω
600W Mono, 70V,100V
(Mono)
250W
100V-120V~
50-60Hz
250V T7A
Chassis
Float
Audio GND
3
2
1
+
–
+
–
Attention: Utiliser un fusible
de rechange de même type.
CAUTION: For continued
protection from risk of fire,
replace only with same type
and rating of fuse.
4
Ω
– 16
Ω
Wiring Diagrams
Power
70V
4
Ω
Load
2
Ω
100V
8
Ω
70V
4
Ω
2
Ω
100V
8
Ω
BIAMP STEREO
CH A
IN
—
+
300W
2
Ω
– 8
Ω
Mono,70V,100V
CH B
IN
CH A
OUT
CH B
OUT
+
—
300W
2
Ω
– 8
Ω
—
+
600W
For 70V, 100V, or Mono
• Use CH B input
• Load across RED
terminals
• Set load switches to one
half load impedance
A Division of
Rockford Corp.
Tempe, AZ 85281
Made in the U.S.A.
S R 2 3 0 0
300 W Stereo, 2
Ω
– 8
Ω
600W Mono, 70V,100V
(Mono)
250W
100V-120V~
50-60Hz
250V T7A
Chassis
Float
Audio GND
3
2
1
+
–
+
–
Attention: Utiliser un fusible
de rechange de même type.
CAUTION: For continued
protection from risk of fire,
replace only with same type
and rating of fuse.
4
Ω
– 16
Ω

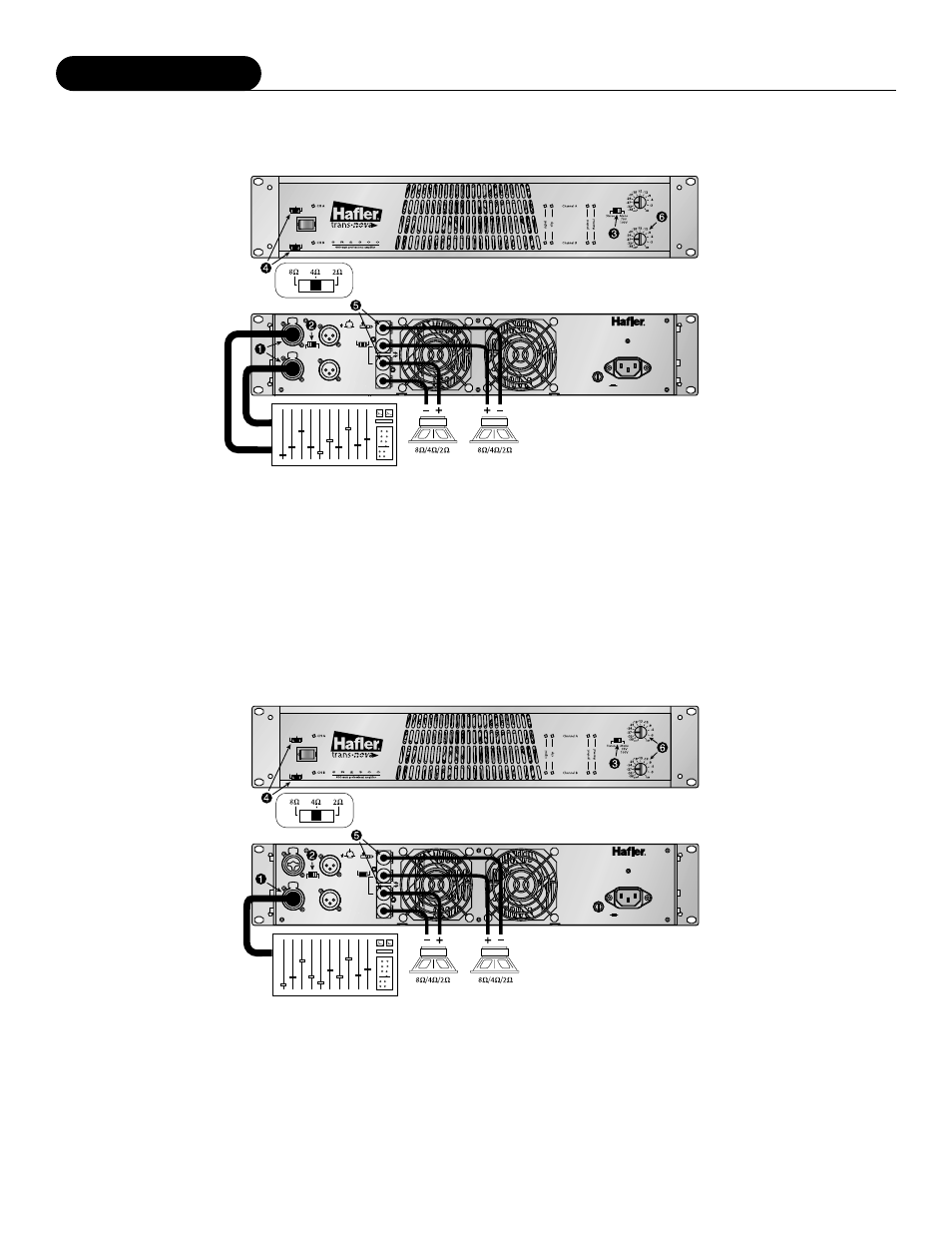

STEREO MODE (SR2300/SR2600)
BIAMP MODE (SR2300/SR2600)
