T7300F/Q7300H SERIES 2000 COMMERCIAL THERMOSTATS AND COMMUNICATING SUBBASES
63-4365 8
Set Temperature
Change
Time/Temp
Set Program
Occupied
Temp
Unoccupied
Start Time Day
System Fan
Copy
Occupied
Start Time
Run
Program
Temporary
Occupied
Continous
Unoccupied
Set Current
Day/Time
Clear
Start Time
Unoccupied
Temp
Heat/Cool
Settings
1-3/8 (35)
6-11/16 (170)
3-3/16 (77)
1-7/8
(47)
4-1/8
(105)
1/16 (2)
7-5/16 (186)
4-5/8
(117)
1-11/16
(43)
7/8
(22)
M16086A

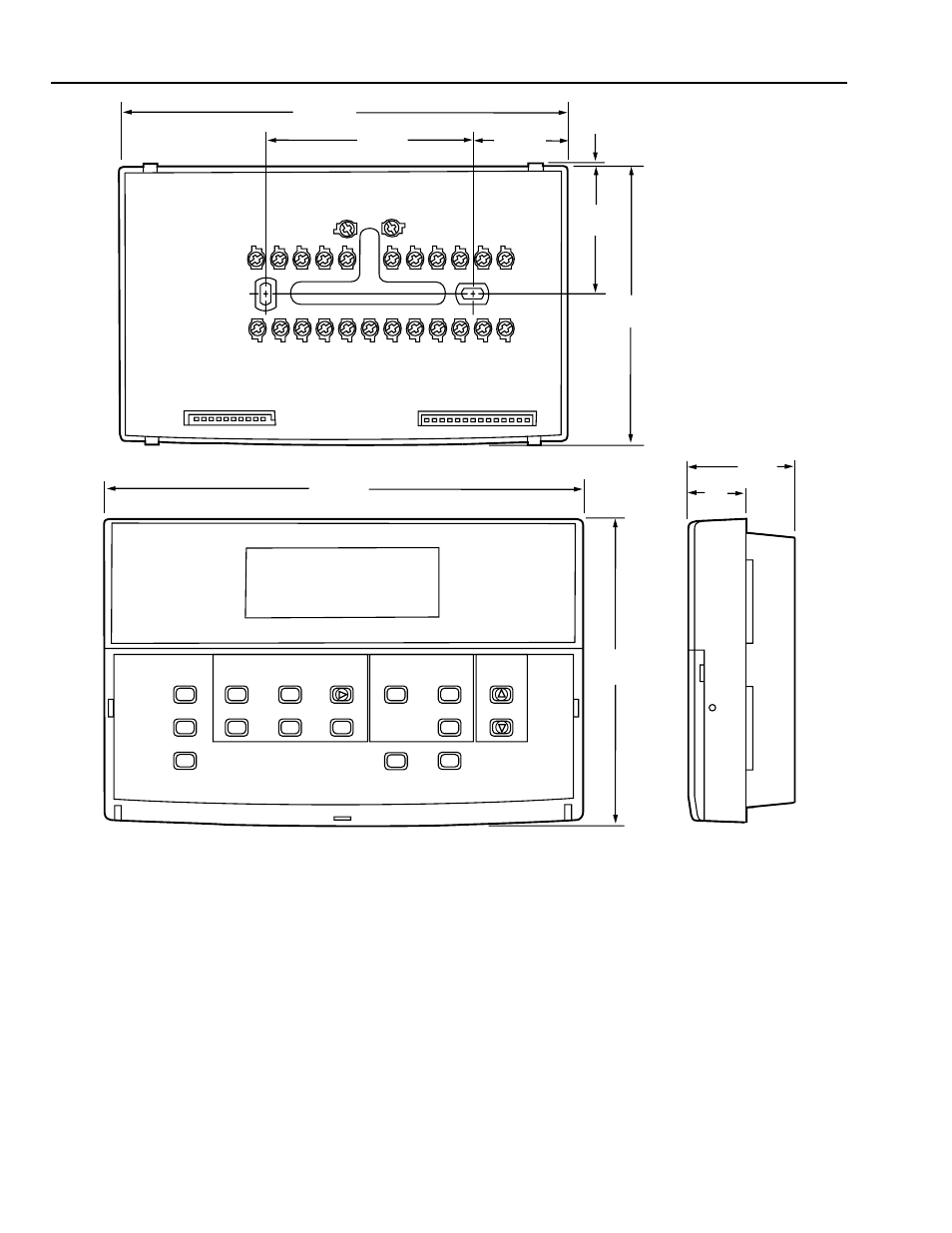

Fig. 3. T7300F/Q7300H dimensions in in. (mm).
Performance Specifications
Electrical Ratings:
Power: 20 to 30 Vac, 50/60 Hz.
System Current: 6 VA maximum at 30 Vac, 50 or 60 Hz.
Temperature Ratings:
Setpoint Range: Heating: 40°F to 90°F (4°C to 32°C;
Cooling: 45°F to 90°F (7°C to 32°C).
Operating: 40°F to 110°F (4°C to 43°C).
Shipping: -20°F to +130°F (-29°C to +54°C).
Display Accuracy: ±1°F (+0.5°C).
Differential:
2°F (1°C).
Humidity Ratings:
5% to 90% RH, noncondensing.
Input/Output Summary:
Table 2 summarizes the T7300F/Q7300H
Thermostat/Subbase inputs and outputs.
