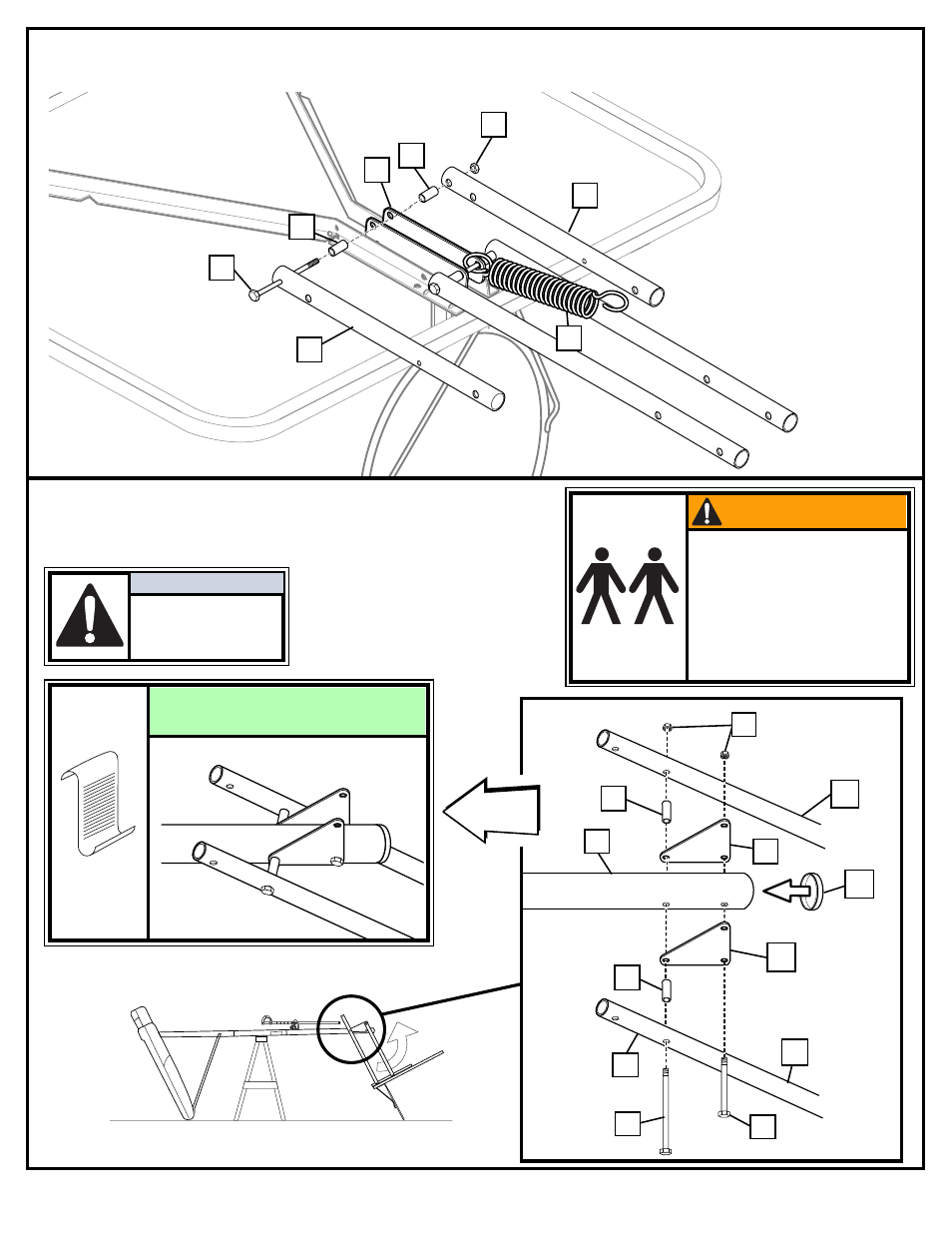

Assemble upper elevator tubes (43) to backboard brackets (34). DO NOT overtighten.
SAWHORSE OR SUPPORT TABLE
Support pole on sawhorse. Attach backboard
assembly to top pole section (4) as shown.
Install pole cap (46).
USE CAUTION; ELEVATOR
ASSEMBLY IS HEAVY.
TWO PEOPLE REQUIRED FOR
THIS PROCEDURE. FAILURE TO
FOLLOW THIS WARNING
COULD RESULT IN SERIOUS
INJURY AND/OR PROPERTY
DAMAGE.
WARNING!
IMPORTANT!:
DO NOT OVER
TIGHTEN
39
48
40
46
40
40
4
45
45
47
38
38
NOTE: STEP 6
