Huffy AR325W - Manual (Page 13)

01/04 P/N 214955E
13
1
11
15
16
11
1
13
13
11
12
13
6
14
13
4
16
37
18
18
16
17

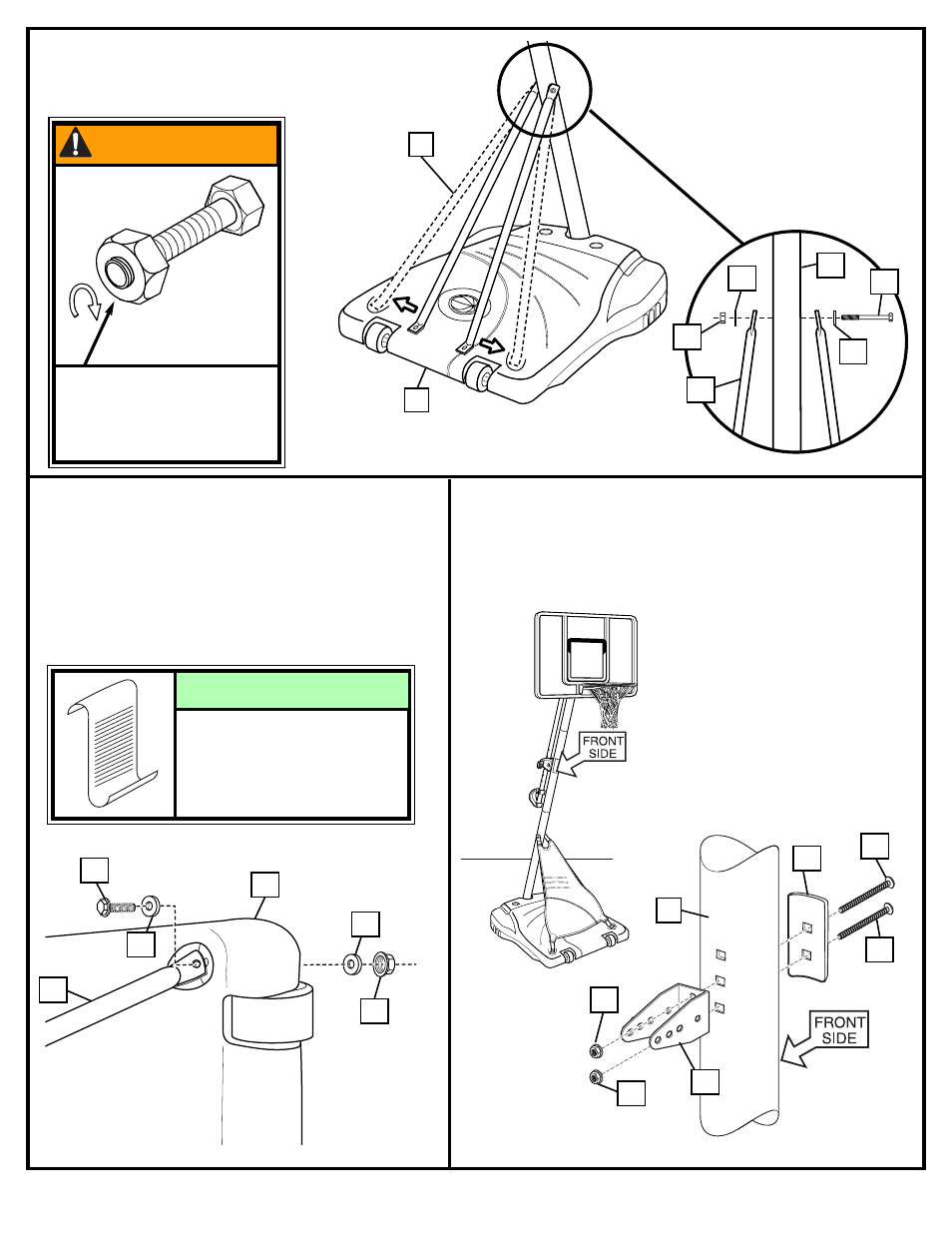

Secure strut tubes (11) to bottom pole
section (6) as shown.
Carefully place unit in the side position and
secure strut (11) to tank (1) as shown.
Completely tighten. Repeat for opposite
side. Upright unit.
Install pole mount bracket (17) and
reinforcement bracket (37) with carriage
bolts (18) as shown. Tighten flange nuts
(16) completely.
TIGHTEN BOLT (14) IN
LOCK NUT (12) UNTIL
FLUSH (EVEN) WITH LOCK
NUT’S OUTER EDGE.
WARNING!
Keep unnecessary pressure
off of the pole assembly when
in this position. Two people
recommended for this
procedure.
NOTE:
9.
10. 11.
