9 GB
INSTALLATION
Connections
Before fixing the hood body to the frame:
• Remove the grease filters from the hood body.
• Remove any activated charcoal filters.
• From below, use the 4 screws 12f (M6 x 10)
provided, to fix the hood body to the frame.
• Fix the Lower Chimney to the Hood Canopy
using the 2 screws 12c (2.9 x 9.5) provided.
ELECTRICAL CONNECTIONS
WARNING -
THIS APPLIANCE MUST BE EARTHED
This appliance must be connected by a competent
person eg. NICEIC registered contractor, in
accordance with latest IEE regulations.
The appliance is supplied with a fitted plug. If the
appliance is to be connected to fixed wiring, it
must be connected to a double-pole control unit
with a minimum switch rating of 5A and
protected by a 3A fuse.
• Connect the hood to the mains through a double
pole switch having a contact gap of at least 3mm.

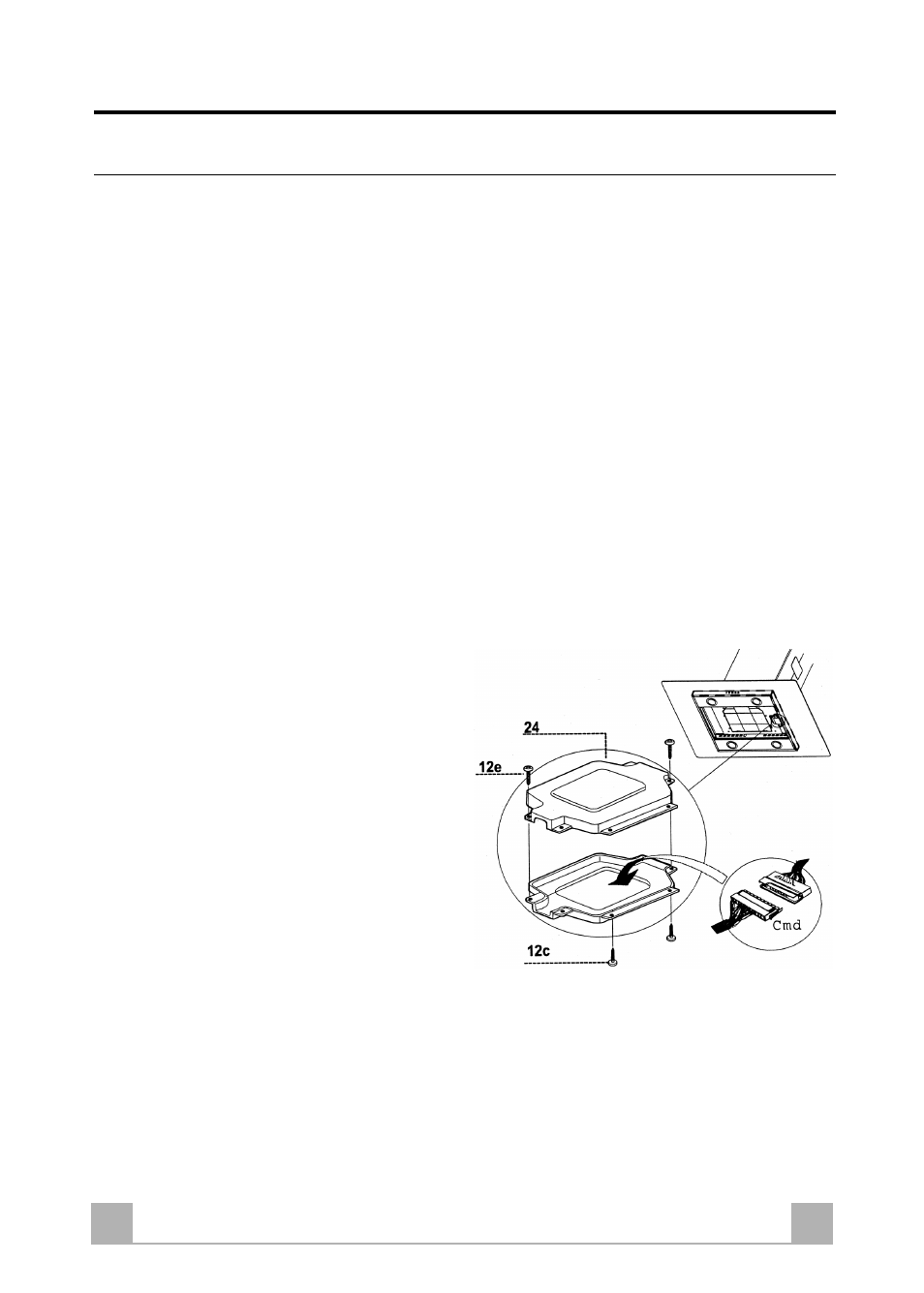

• Connect the control connector Cmd.
• Place the connector in the junction box 24 and
close it using the 2 screws 12e (2.9 x 6.5)
provided.
• Fix the junction box to the hood body using the
2 screws 12c (2.9 x 9.5) provided.
• For the recirculation version, fit the activated
charcoal filter.
• Replace the grease filters.
