INSTALLATION
Connections

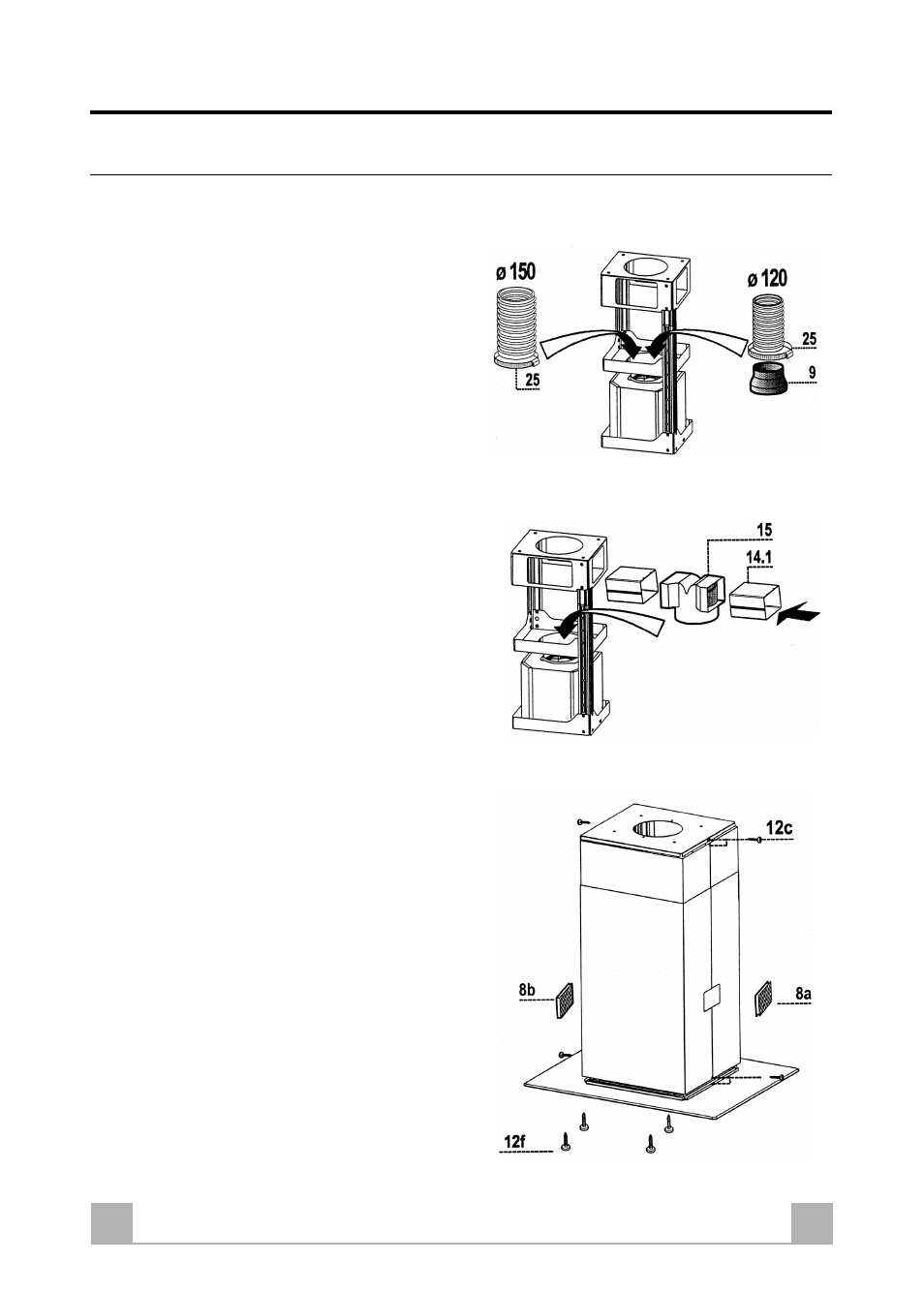

DUCTED VERSION AIR EXHAUST SYSTEM
When installing the ducted version, connect the
hood to the chimney using either a flexible or
rigid pipe ø 150 or 120 mm, the choice of which
is left to the installer.
• To install a ø 120 mm air exhaust connection,
insert the reducer flange 9 on the hood body
outlet.
• Fix the pipe in position using the pipe clamps
25 provided.
• Remove any activated charcoal filters.
RECIRCULATION VERSION AIR OUTLET
• Push the connection 15 onto the air outlet.
• Insert the connection extension pieces laterally
14 in connection 15.
• Place the upper chimney section and fix the
upper part to the Fixing Part of the Upper
Chimney using the 2 screws 12c (2.9 x 9.5)
provided.
• Similarly, position the lower chimney section
and fix the lower part to the frame using the 2
screws 12c (2.9 x 9.5) provided.
Recirculation version
• Make sure that the outlet of the extension pieces
14.1 is horizontally and vertically aligned with
the chimney outlets.
• If this is not the case, remove the lower chimney
section and adjust the position by either
reversing the connection pieces 14.1 or by cutting
the hood body extension 14 along one of the
thinner section channels denoting the pre-fixed
lengths, then reassemble as described previously.
• Fit the directional grids 8a-8b in their housings
making sure that the directional symbols are
towards the top. Also make sure that they are
correctly inserted in the connection extension
pieces 14.1.
