INSTALLATION

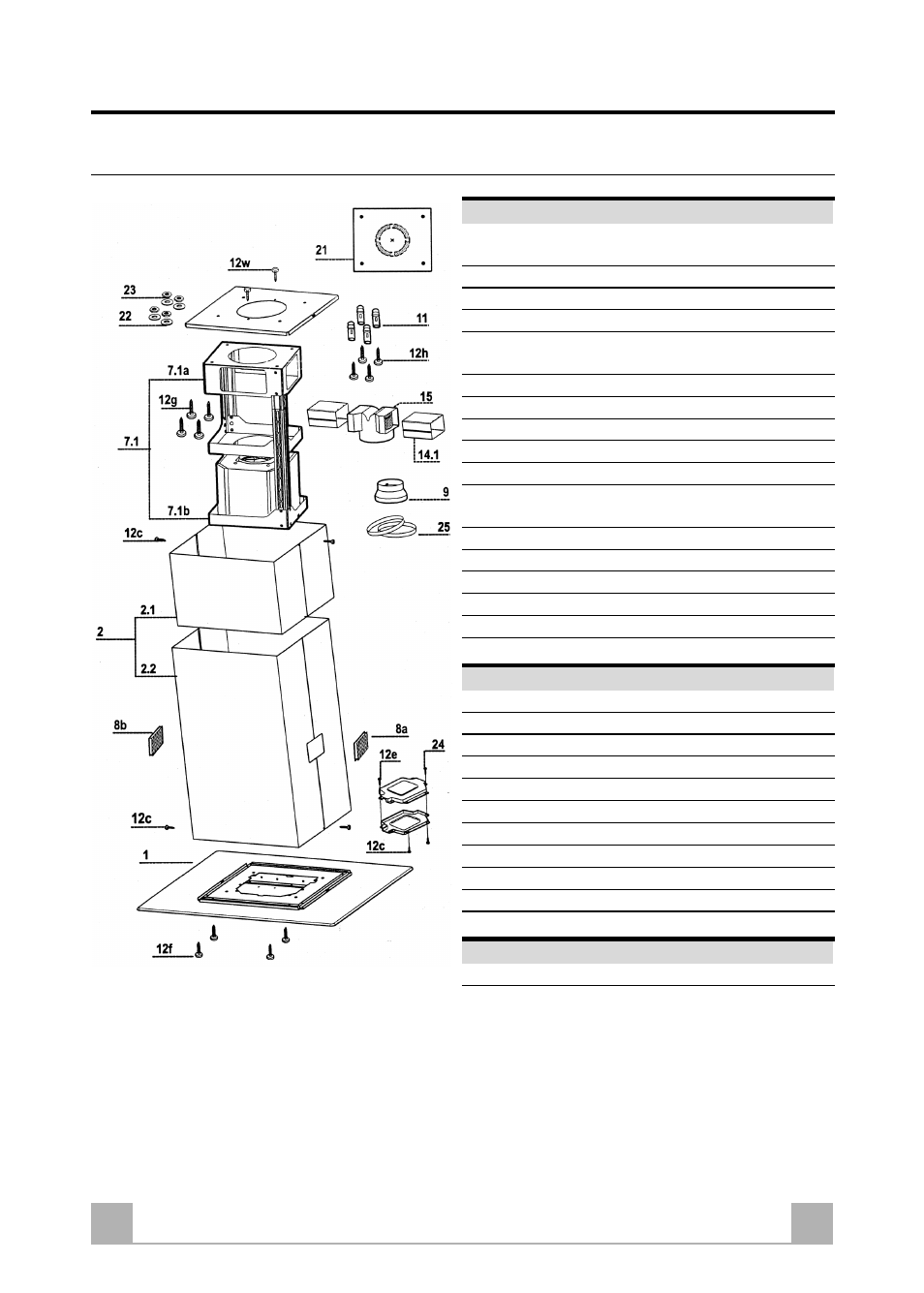

Components
Ref.
Qty Product Components
1
1
Hood Body, complete with: Controls, Light,
Blower, Filters
2
1
Telescopic Chimney comprising:
2.1
1
Upper Section
2.2
1
Lower Section
7.1
1
Telescopic frame complete with extractor,
consisting of:
7.1a
1
Upper Frame
7.1b
1
Lower Frame
8a
1
Right Air Outlet Grill
8b
1
Left Air Outlet Grill
9
1
Reducer Flange ø 150-120 mm
14
1
Hood Body Air Outlet Extension Piece
consisting of two half shells
14.1
1
Air Outlet Connection Extension
15
1
Air Outlet Connection
24
1
Junction box
25
2
Pipe clamps
26
1
Fixing part of the upper chimney
Ref
Qty Installation Components
11
4
Wall Plugs ø 10
12c
6
Screws 2.9 x 9.5
12e
2
Screws 2.9 x 6.5
12f
4
Screws M6 x 10
12g
4
Screws M6 x 80
12h
4
Screws 5.2 x 70
12w
2
Screws M3 x 8
21
1
Drilling Template
22
4
6.4mm int. dia washers
23
4
M6 nuts
Qty Documentation
1
Instruction Manual
