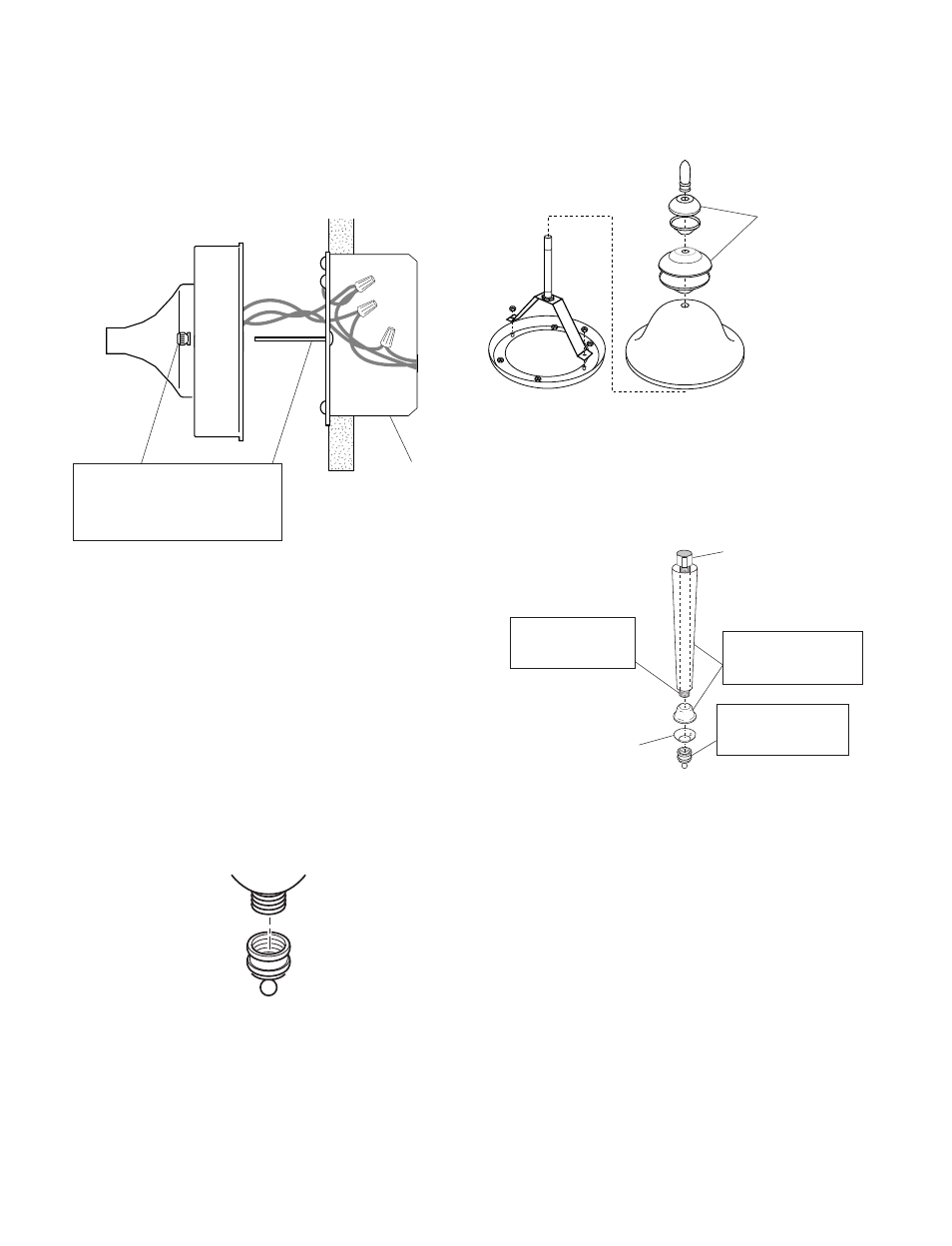

4182 Top Assembly
Larger piece
on top
❒ Caulk fixture mounting surface with
silicone weather sealant. You may want
to wait until you have completed the tests
and adjustments on page 6.
❒ Install light bulb. See fixture markings for
proper bulb type and wattage.
❒ If so equipped, install the fixture top. Secure
with decorative screws.
❒ If you will not be installing the optional tail
assembly, install the decorative nut onto
the bottom of the fixture now.
Slide the fixture onto the
mounting screws and
tighten nuts.
Junction
Box
Optional Assembly
❒ If so equipped, you may install the decora-
tive tail as shown below.
1. Screw in
extension bar.
2. Add tail piece
and trim.
3. Install
decorative nut. Bottom trim piece
has drain hole
Hex nut
COMPLETE THE INSTALLATION
❒ Stuff the wires into the junction box. Make
sure the wires from the fixture go through
the wire path, and no wires get pinched.
