SECTION 2 – DEFINITIONS

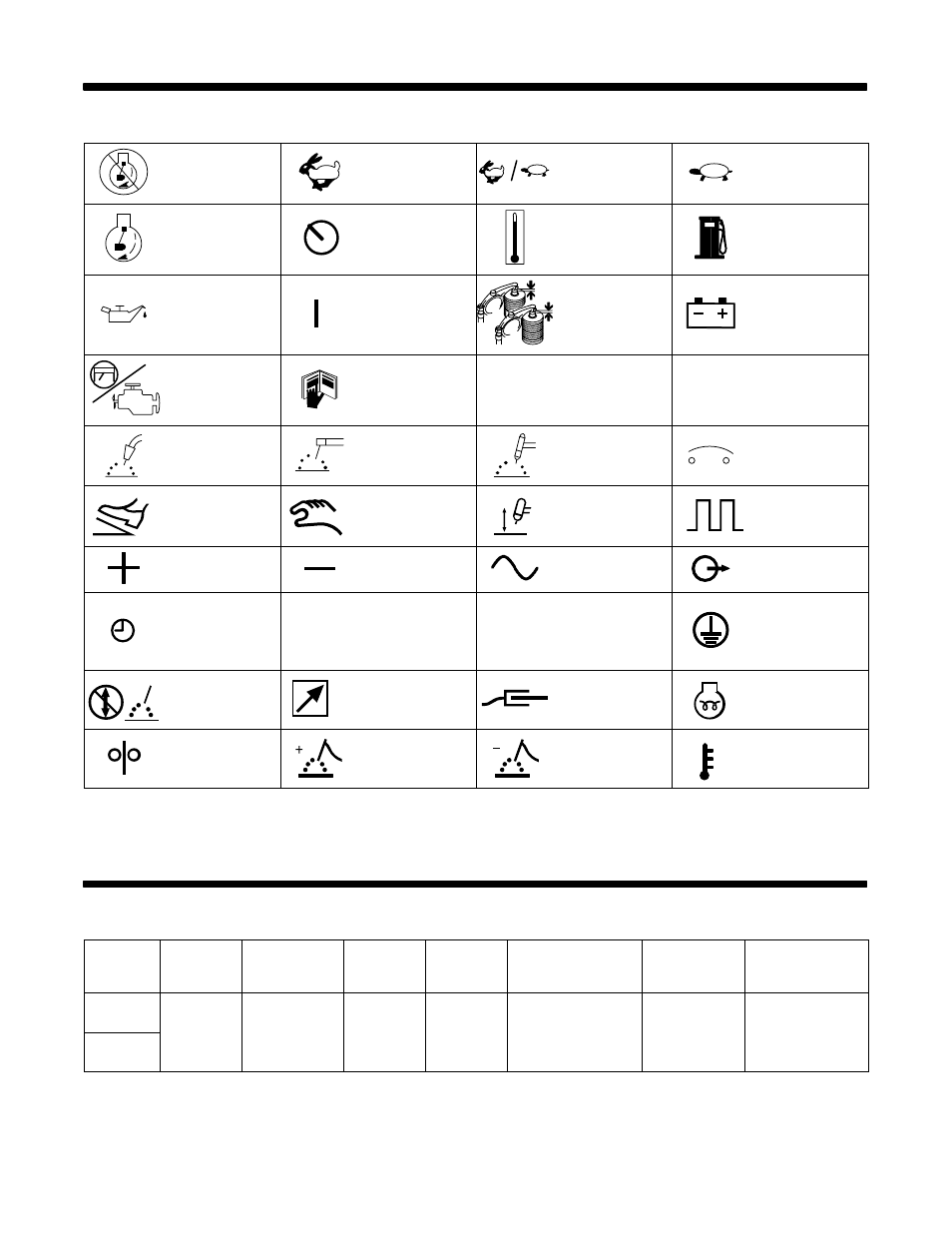

2-1. Symbol Definitions
Stop Engine
Fast
(Run, Weld/Power)
Fast/Slow
(Run/Idle)
Slow (Idle)
Start Engine Panel/Local Temperature Fuel
Engine Oil On
Check Valve
Clearance
Battery (Engine)
Engine
Read Operator’s
Manual
A
Amperes
V
Volts
MIG (GMAW),
Wire
Stick (SMAW) TIG (GTAW) Circuit Breaker
Foot Control Manual Control
Touch Start
(GTAW)
Pulsed
Positive Negative
Alternating Current
(AC)
Output
Time h Hours s Seconds
Protective Earth
(Ground)
Do not switch while
welding
14
Remote 14
Receptacle
Work Connection Glow Plug
Wire Feed
Electrode
Positive
Electrode Negative High Temperature
SECTION 3 – SPECIFICATIONS
3-1. Weld, Power, And Engine Specifications
Welding
Mode
Rated
Welding
Output
Maximum
Open-Circuit
Voltage
Amperage
Range In
CC Mode
Voltage
Range In
CV Mode
Auxiliary
Power Rating
Fuel Capacity Engine
CC/DC
300 A, 32 V,
Single-Phase,
12 kVA/kW
13 gal (49 L)
Kubota DH905
Water-Cooled,
CV/DC
60% duty
Cycle
90 5 – 375 A 10 – 34 V 100/50 A,
120/240 V AC,
60 Hz
13 gal (49 L)
Tank
Three-Cylinder,
Four-Cycle, 26 HP
Diesel Engine
