Tine assy, Repair parts – Husqvarna 500RTT User Manual

Page 24

background image

24

2

11

11

10

9

9

4

4

5

34

3

3

1

2

1

1

1

9

9

8

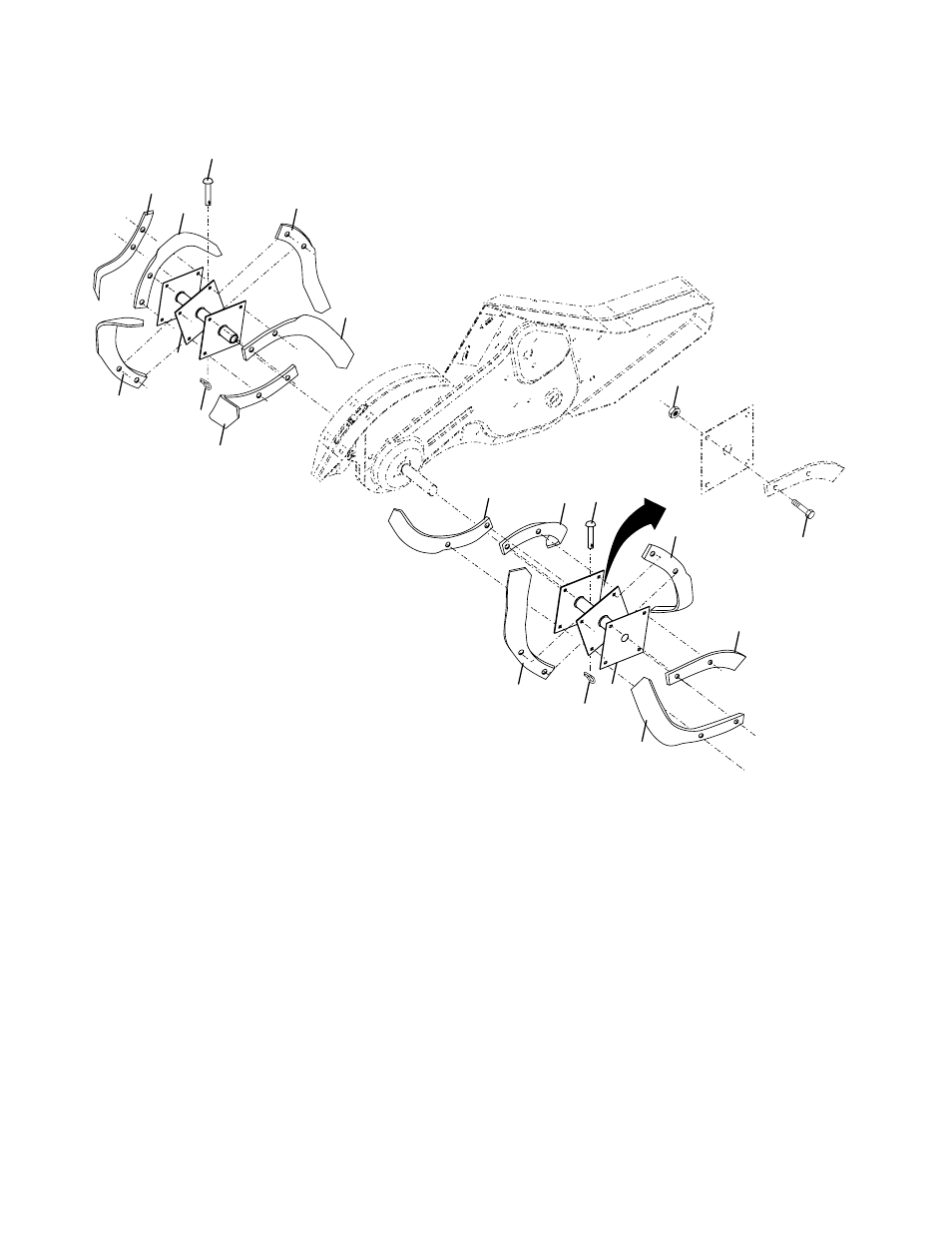

tine_ipb_1

KEY PART
NO. NO. DESCRIPTION

KEY PART
NO. NO. DESCRIPTION

1 532 00 44-59 Tine, Outer, L.H.
2 532 13 26-73 Clevis Pin
3 532 00 65-54 Tine, Inner, L.H.
4 532 12 46-60 Retainer, Spring Zinc
5 532 13 27-27 Assembly, Hub and Plate, L.H.
8 874 61 06-16 Bolt, Hex 3/8-24 x 1
9 532 00 44-60 Tine, Outer, R.H.

10 532 13 27-28 Assembly, Hub and Plate, R.H.
11 532 00 65-55 Tine, Inner, R.H.
34 873 54 06-00 Nut Crownlock 3/8-24

NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm

REPAIR PARTS

TILLER - - MODEL NUMBER 500RTT(96093000100), PRODUCT NUMBER 960 93 00-01

TINE ASSEMBLY
