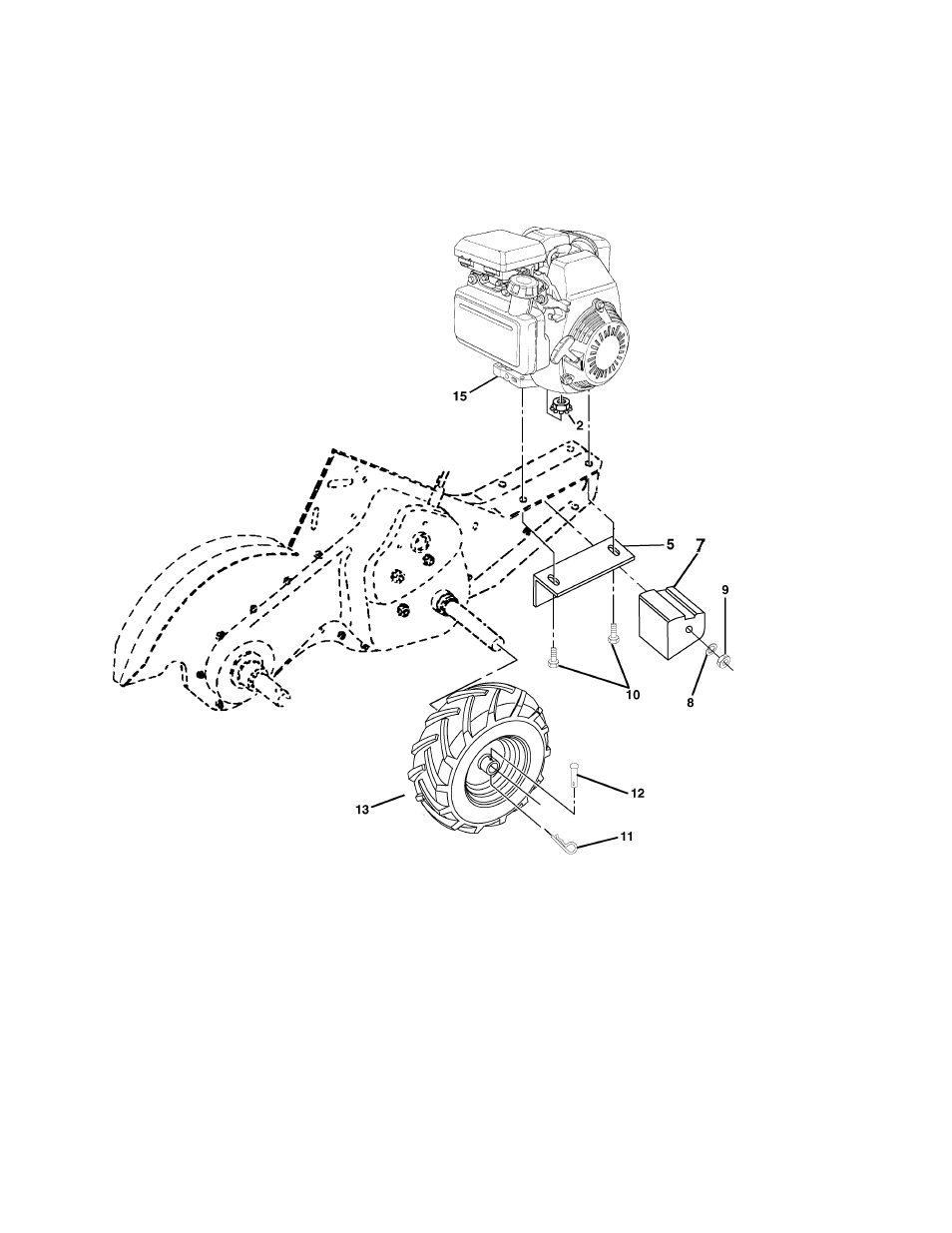

REPAIR PARTS
TILLER - - MODEL NUMBER 500RTT(96093000100), PRODUCT NUMBER 960 93 00-01
MAINFRAME, RIGHT SIDE
2 873 97 05-00 Locknut, Hex, Flange 5/16-18
5 532 10 23-32 Bracket, Reinforcement
7 532 10 21-73 Counter Weight, R.H.
8 810 04 06-00 Washer, Lock 3/8
9 873 22 06-00 Nut, Hex 3/8-16
10 874 76 05-24 Bolt, Hex 5/16-18 x 1-1/2
11 532 12 47-88 Clip, Hairpin
12 532 12 68-75 Rivet, Drilled
13 532 10 21-90 Tire
532 15 07-40 Rim
532 12 47-18 Tire Valve
15 - - - - - - - - Engine, Honda
Model No. GC160QHA2 (Order
parts from Engine Manufacturer)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
For engine service and replacement parts, call the toll free
number for your engine manufacturer listed below:
Briggs & Stratton 1-800-233-3723
Tecumseh Products 1-800-558-5402
Honda Engines 1-800-426-7701
