16

42834-01 • 02/14/12 • Hunter Fan Company

8 • Completing Your Installation With or Without a Bowl Light Fixture (Continued)

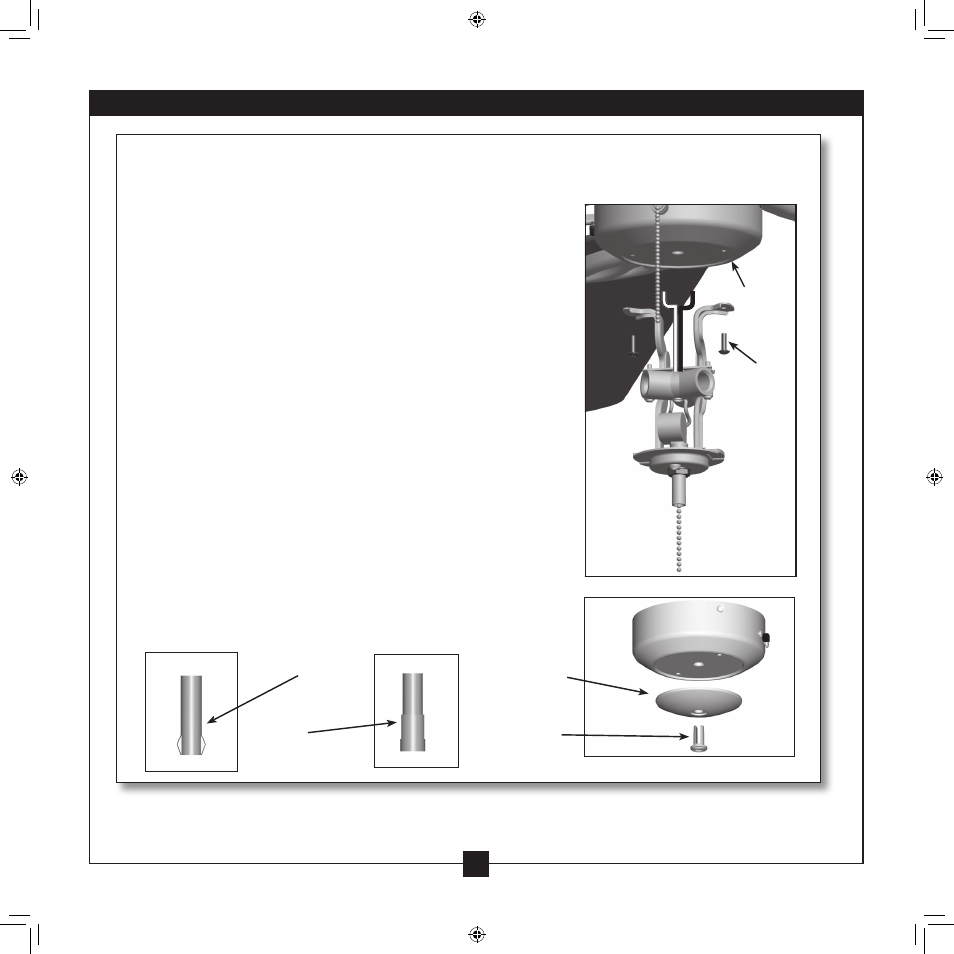

Uninstalling the Light Fixture

8-14. To uninstall the light fixture, first disconnect the plug connectors

between the black wire and the black wire with a white stripe.

8-15. Disconnect the plug connectors between the two white wires.
8-16. Remove the two screws attaching the light kit to the lower

switch housing.

8-17. Remove the light fixture from the lower switch housing, pulling

disconnected wires through the hole in the center of the lower
switch housing.

Note: When removing the wires, pull the thin plug connector
(male) through first, and then pull the other plug connector
(female) through the hole.

8-18. Install the dummy terminals (included in the sack parts) on the

two disconnected wires in the lower switch housing.

8-19. Install the switch housing cap and plug button to the lower

switch housing.

8-20. Once you have uninstalled the light fixture, continue with step

8-6.

Male Dummy

Terminal

Female Dummy

Terminal

Step 8-19

Cap

Plug Button

Step 8-17

Lower Switch

Housing

Screw
