Heat & Glo • 6000TV-OAK, 6000TV-OAK-IPI • 384-900 Rev. N • 11/05 7

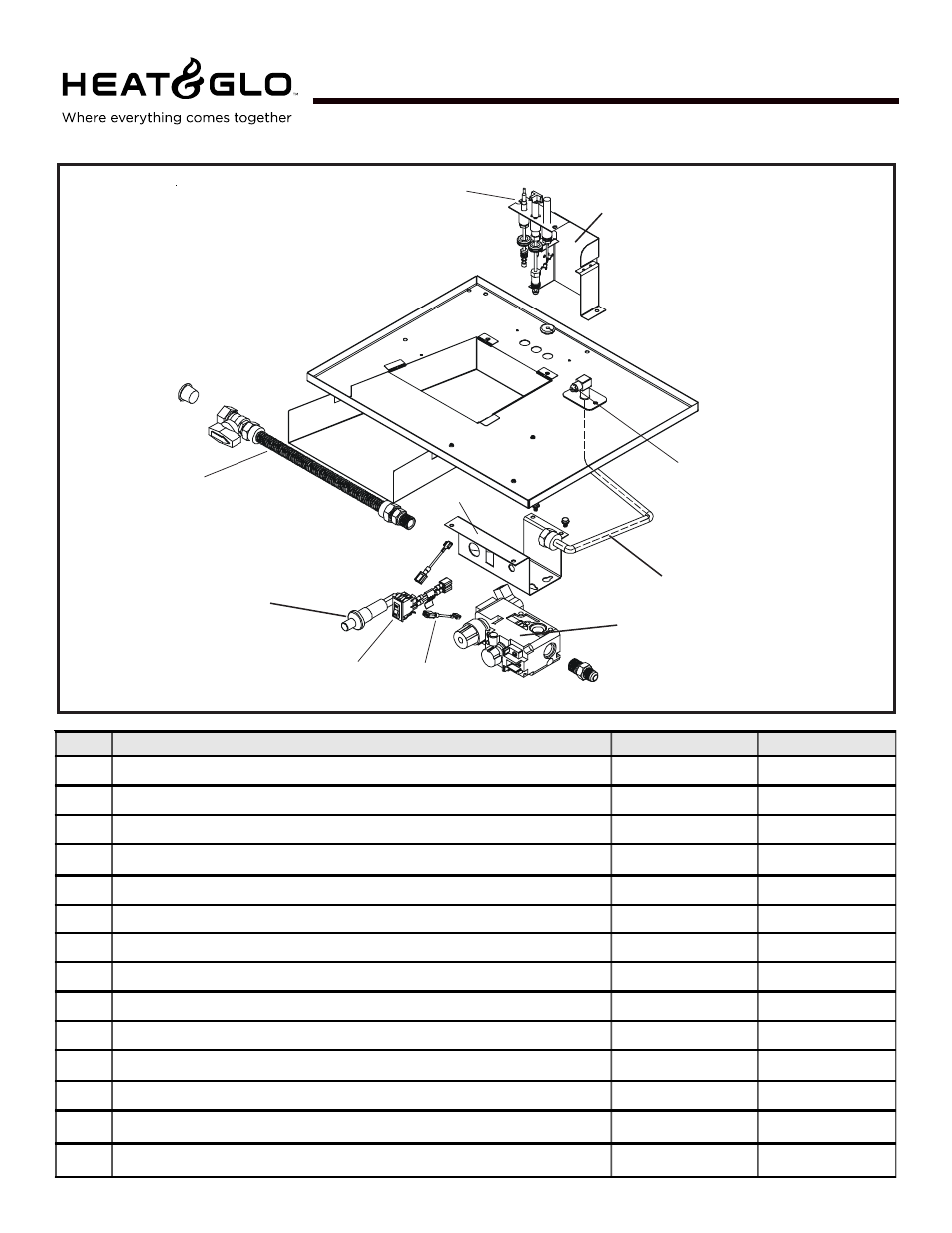

(NG, LP) Exploded Parts Diagram
Service Parts
6000TV-OAK
Beginning Manufacturing Date: 4-01
Ending Manufacturing Date: ______
Standing Pilot Ignition
Valve Assembly
5
2
9
10
3
7
1
4
8
6
ITEM DESCRIPTION SERIAL # PART NUMBER
1 ON/OFF Rocker Switch 060-521A
2 Valve NG (30 Sec) 060-522
2 Valve LP (30 Sec) 060-523
3 Flexible Gas Connector
PRE 002324021
POST 002324021 477-301A
383-302A
4 Wire Assembly 049-552A
5 Pilot Assembly NG 485-510A
5 Pilot Assembly LP 485-511A
6 Pilot Bracket 385-164
7 Burner Orifice (NG) (#40C) 582-840
7 Burner Orifice (LP) (#53C) 582-853
8 Valve Bracket
PRE 002324021
POST 002324021 550-169
2025-101
9 Flex Ball Valve Assembly 302-320A
10 Piezo Ignitor 291-513
80" Wire Assembly 522-503A
