Heat & Glo • 6000TV-OAK, 6000TV-OAK-IPI • 384-900 Rev. N • 11/05 6

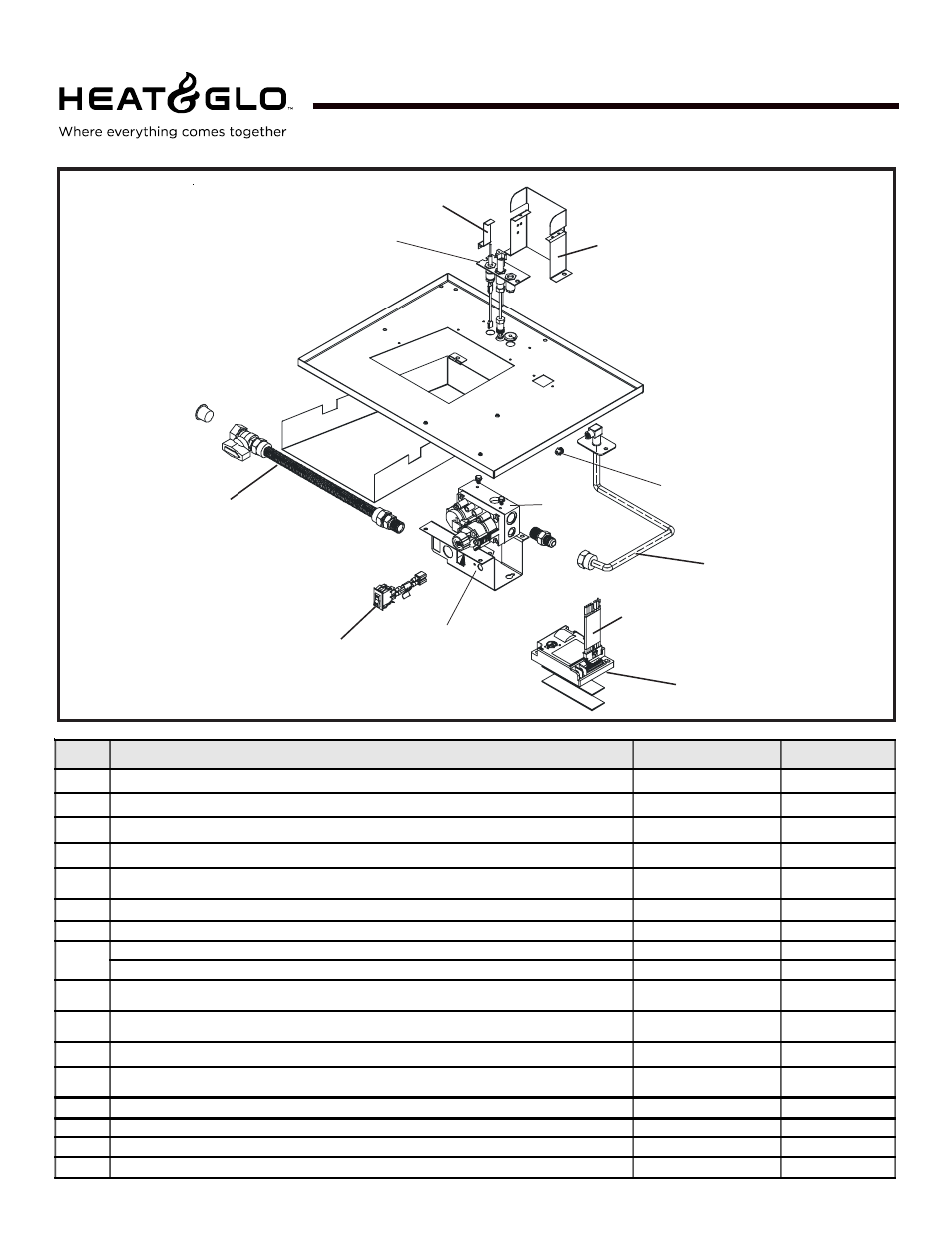

(NG, LP) Exploded Parts Diagram
Service Parts
Beginning Manufacturing Date: 4-01
Ending Manufacturing Date: ______
Intermittent Pilot Ignition
Valve Assembly
ITEM DESCRIPTION SERIAL # PART NO.
1 Flex Ball Valve Assembly 302-320A
2 ON/OFF Rocker Switch 060-521A
3 Valve NG 750-500
3 Valve LP 750-501
4 Flexible Gas Connector
PRE 002324021
POST 002324021 477-301A
383-302A
5 Module 593-592
6 Wire Assembly 593-590A
7
Burner Orifice NG (#40C) 582-840
Burner Orifice LP (#53C) 582-853
8 Pilot Assembly NG
PRE 002324021
POST 002324021 385-510A
4021-025
8 Pilot Assembly LP
PRE 002324021
POST 002324021 385-511A
4021-026
9 Pilot Bracket 385-164
10 Valve Bracket
PRE 002324021
POST 002324021 550-169
2025-101
11 Ground Strap 2025-512
3V Adaptor Plug 593-593A
Battery Pack 593-594A
72" & 80" Wire Assembly 522-504A
4
5
6
1
8
3
9
7
2
10
6000TV-OAK-IPI
11
