Heat & Glo • 6000TV-OAK, 6000TV-OAK-IPI • 384-900 Rev. N • 11/05 10

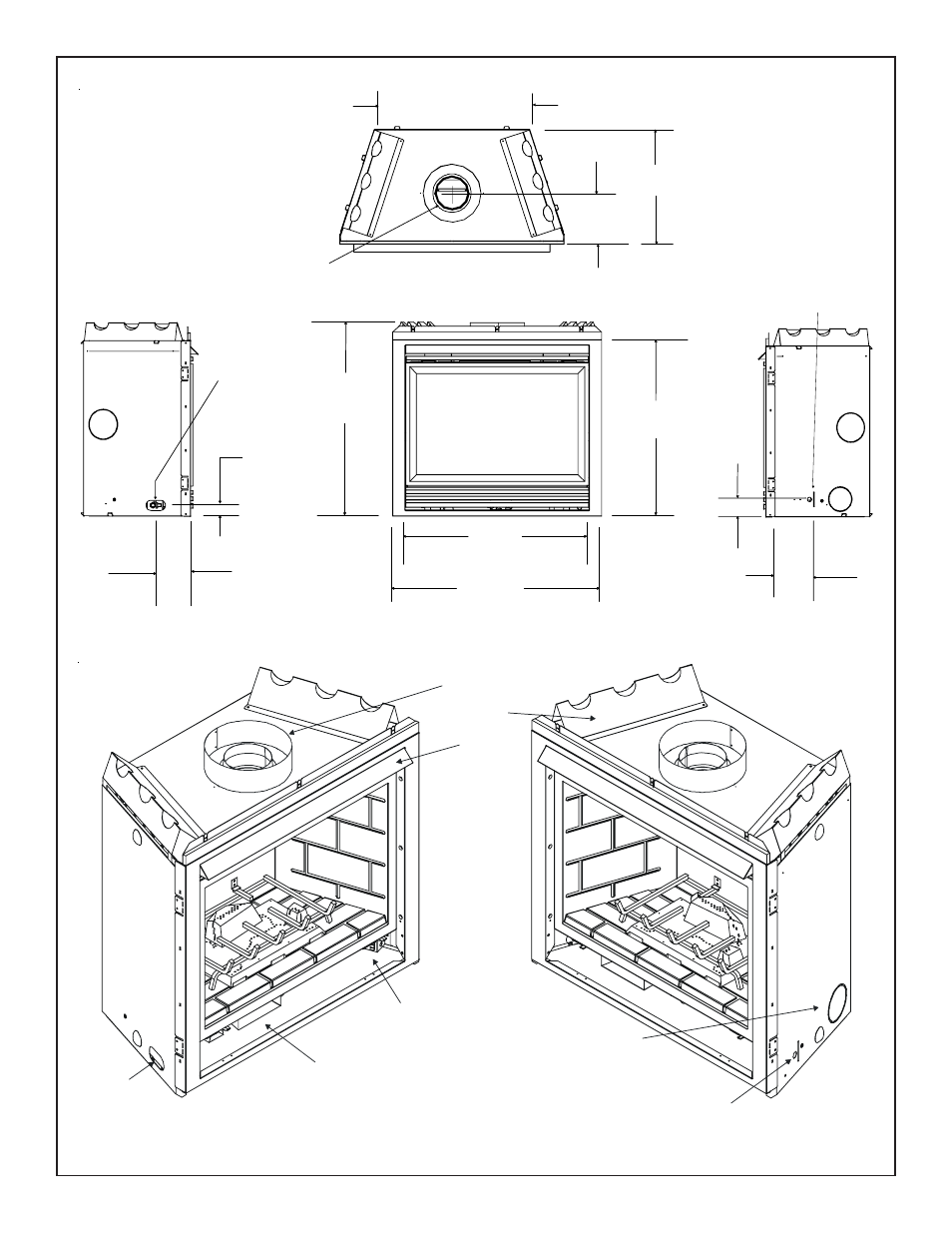

Figure 1. Diagram of the 6000TV-OAK
GAS ACCESS
GAS
CONTROLS
RATING PLATES
& LABELS
VENT COLLARS
HOOD
STANDOFFS
ACCESS
ELECTRICAL
OUTSIDE
AIR
GAS LINE
ACCESS
6-7/8
(174mm)
2-1/8
(55mm)
38
(965mm)
36-1/8
(916mm)
41
(1043mm)
34-5/8
(879mm)
ELECTRICAL
ACCESS
3-1/2
(90mm)
6-1/2
(165mm)
6” B-VENT (152mm)
9-3/8
(238mm)
21-1/2
(548mm)
28-1/2 (724mm)
