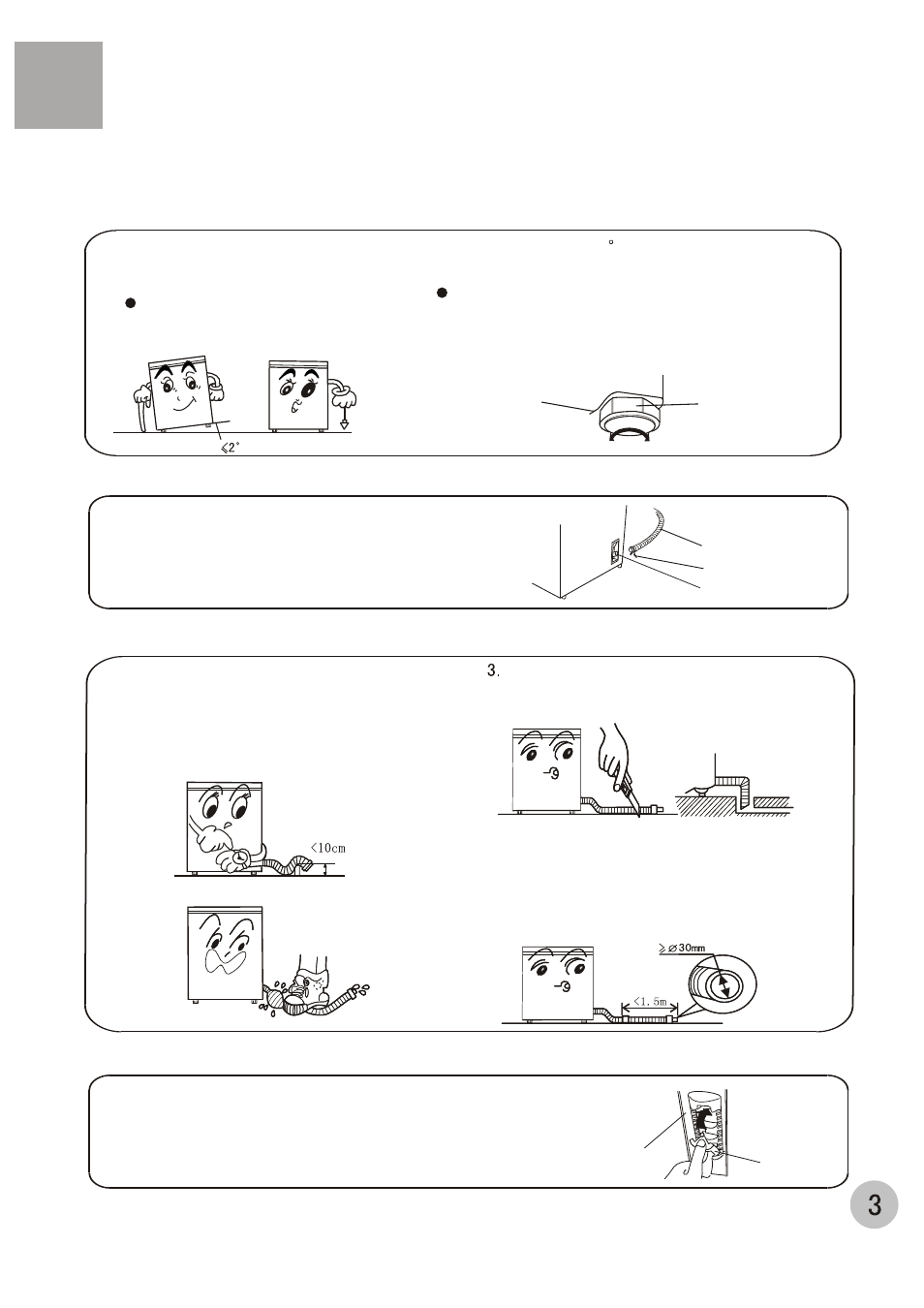

Installation and adjustment
Please install and adjust the machine according to the requirement of the manual. It is
very important to your security and correct operating the machine.
Adjust the installation position
The largest allowed slope of the base of the machine is 2 . The slanting or rough
ground will result in unstable running or stoppage of the machine. Please adjust
it with following methods:
Confirm it's horizontal:
Hang the lead line to confirm
if it is horizontal.
Adjust the adjustable foot:
1.To twist the adjustable foot, please first lift up
the side of the foot slightly, and twist the foot.
2.Fasten the nut after adjustment.
High Low
Adjustable foot
Put the drain hose clamp on the outer drain hose,
insert the outer drain hose into the joint for it, and
then clutch tightly with drain hose clamp.
Drain hose joint
Drain hose clamp
Drain hose
Install the drain hose
Usage of the drain hose
If the drain hose is too long, cut it at mid
point. To make smooth drainage, cut the
front end of the hose slantingly.
4. If extra drain hose is needed, please
make separate purchase. The inner
diameter of the extra hose shall not
less than 30mm, and the length shall
not exceed 1.5m.
1. The height of the drain hose shall be
less than 10cm, or the drainage will not
be smooth, and cost such long time that
the machine may stop at mid way.
2. Do not tramp or press the drain hose.
The drain hose shall drain smoothly
Before Using Before Using
After opening the package, please take out the lint filter
from the document bag and install it into the frame of
the inner tub. See to the right Figure.
Filter frame
Lint filter
Install the lint filter
