6–4

Maintenance and Service Guide

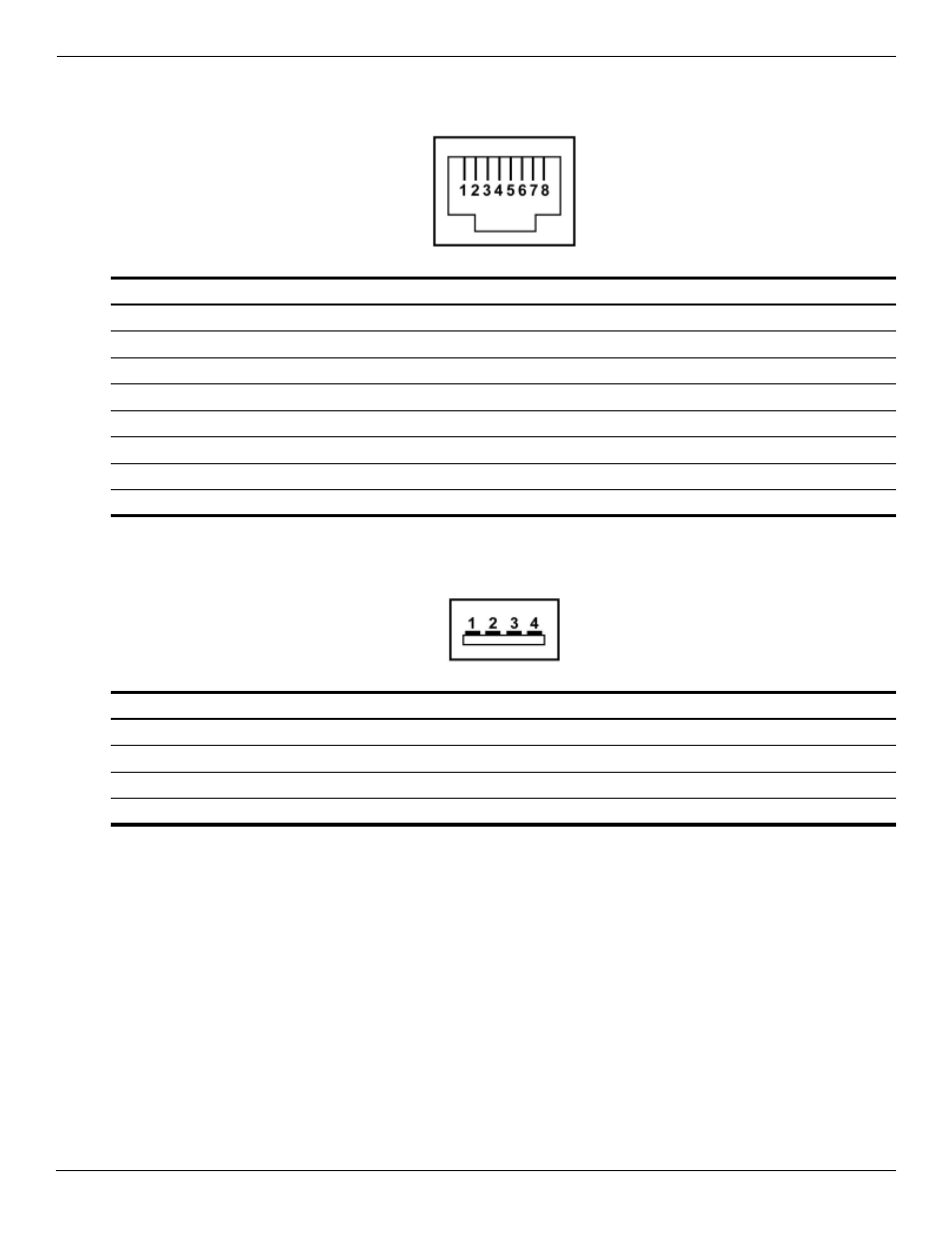

Connector pin assignments

RJ-45 (network)

Universal Serial Bus

Pin Signal

1 Transmit

+

2 Transmit

3 Receive

+

4 Unused

5 Unused

6 Receive

-

7 Unused

8 Unused

Pin Signal

1 +5

VDC

2 Data

-

3 Data

+

4 Ground
