F. Sidewalls/Surrounds
• Adjacent combustible sidewalls must be located
a minimum of 12 in. (305 mm) from the fireplace
opening.
• Combustible or non-combustible mantel legs, surrounds
and stub walls may be constructed per Figure 11.10.
B A
9 3/4 in.
[248 mm]
12 in.
[305 mm]
12 in.
[305 mm]
11
1/4 in.
[286 mm]
FLUSH FRONT
4 in.
[102 mm]
BRICK
FRONT
50° angle
39° angle

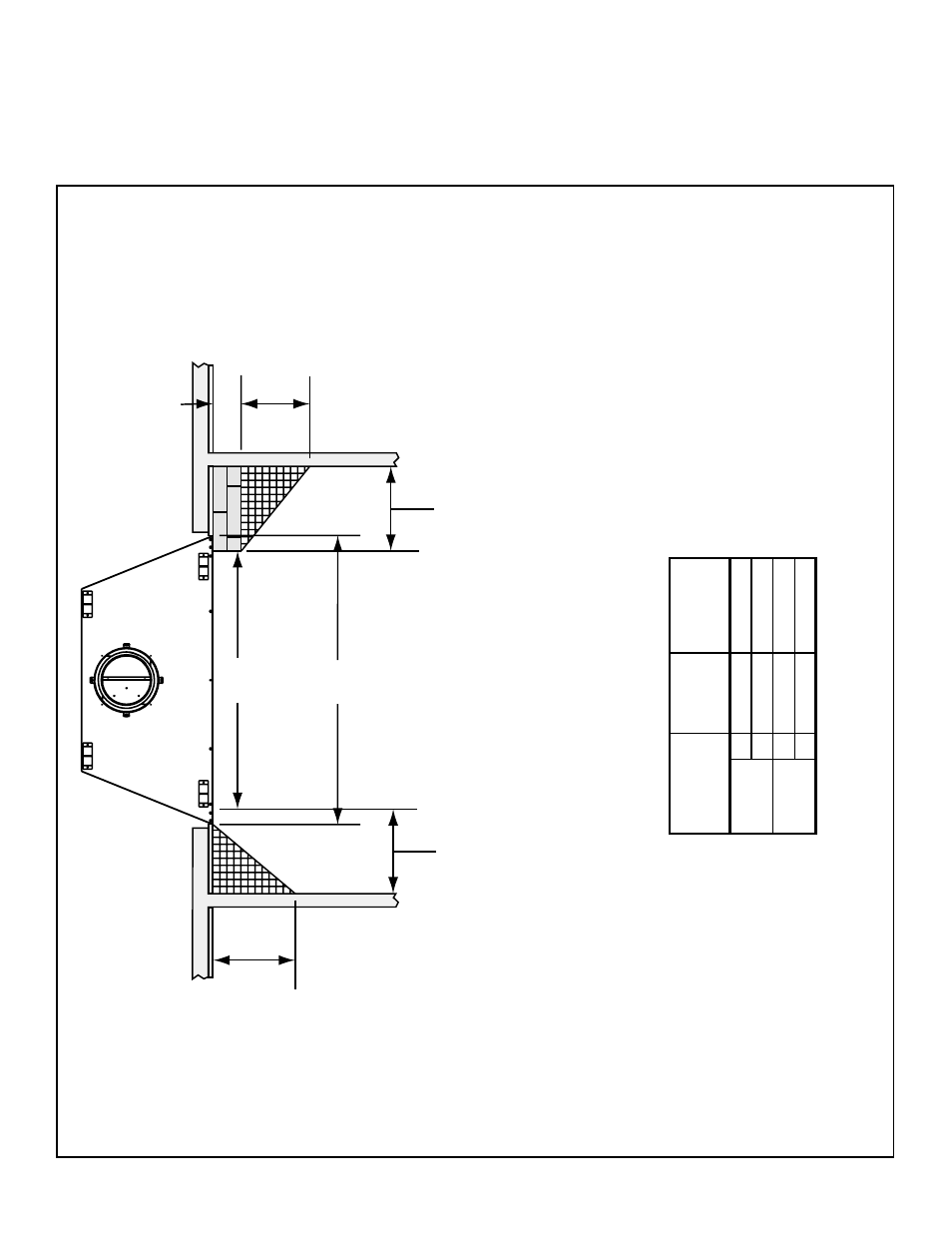

Figure 11.10 Mantel Leg or Wall Projections (acceptable on both sides of opening)
Model #
A
Fireplace Opening
B
Outside Di- mensions
EL36
in.
36
41
mm
914
1041
EL42
in.
42
47
mm
1067
1194
