Hoshizaki KM-1601MRH - Manual (Page 11)

11

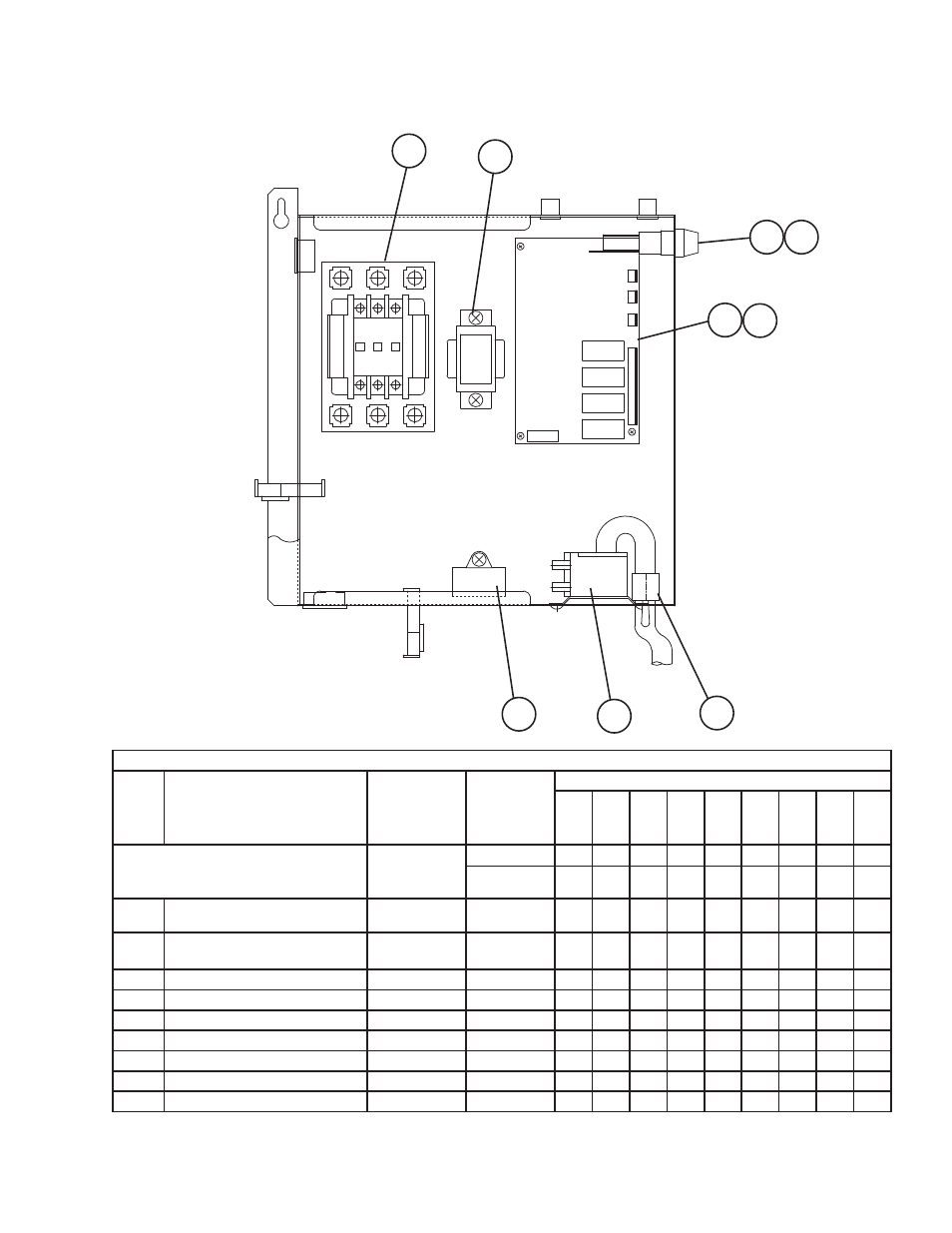

C. Control Box Assembly
KM-1601MRH/3
Q-0 to B-0
1
2
3
5 6
Title: C. Control Box Assembly Model: KM-1601MRH/3
Index
No. Description
Material or
Model Number Part Number
Required Number
Q-0
to
V-0
V-1
to
B-0
Control Box Assembly
Order Assembly Parts Individually
Assembly Number for Reference Only
2A2527A01 1 -
2A6044A01 1
1 Magnetic Contactor 4A0794-01 1 1
2 Pump Motor Capacitor 10MFD,
250VAC 443192-01 1 1
3 Control Transformer 3A0172-01 1 1
4 "E" Control Board 2A1410-01 1 1
4a Control Board Support 4A0336-03 4 4
5 Bin Control Thermostat 4A2879-02 1 1
6 Control Switch 443119-01 1 1
7 Fuse Holder 4A5443-01 1 1
8 Fuse 10A, 250V 4A0893-07 1 1
4a 4
7 8
