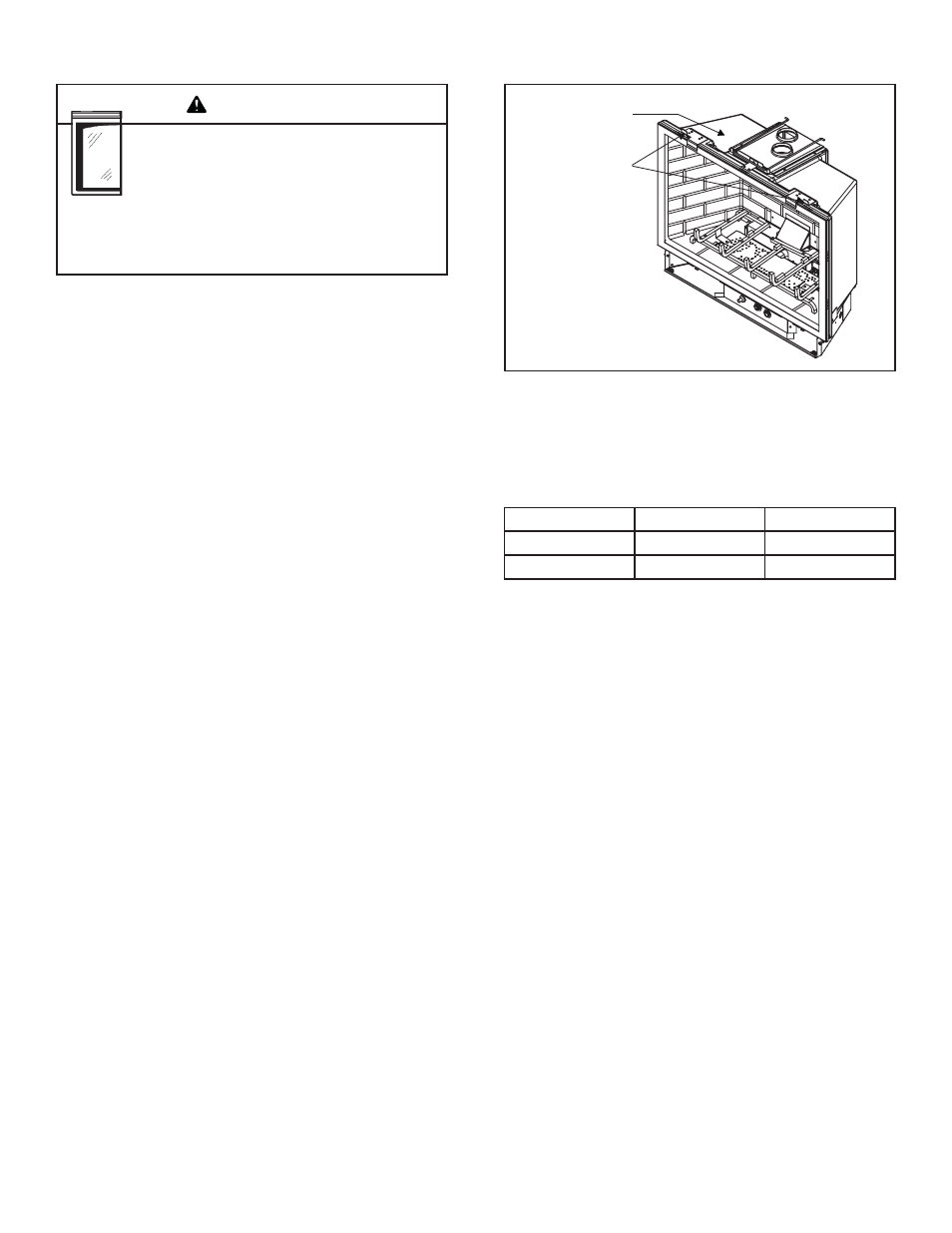

Figure 11.16 Glass Assembly
F. Glass Assembly
Removing Glass Assembly
There are two glass latches on the bottom of glass
assembly.
• To release glass assembly, pull latch forward and allow
to retract away from glass assembly.
• Remove glass assembly after both latches have been
released (see Figure 11.16).
Replacing Glass Assembly
Replace the glass door on the appliance. Fasten the latches
on the glass frame.
FIREBOX
SURROUND
LOCATING TABS
G. Air Shutter Setting
Optimal fl ame appearance is dependent on the air shutter
setting. Adjustments should be made by a qualified
technician.
Handle glass doors with care.
• Inspect the gasket to ensure it is undamaged.
• Inspect the glass for cracks, chips or scratches.
• Do NOT strike, slam or scratch glass.
• Do NOT operate appliance with glass door removed,
cracked, broken or scratched.
• Replace glass door assembly as a complete appliance.
WARNING
NG LP
FB-GRAND-S Full open Full open
FB-IN-S 1/2 in. Full open
