REPAIR PARTS
TILLER - - MODEL NUMBER 600CRT (954140070A)

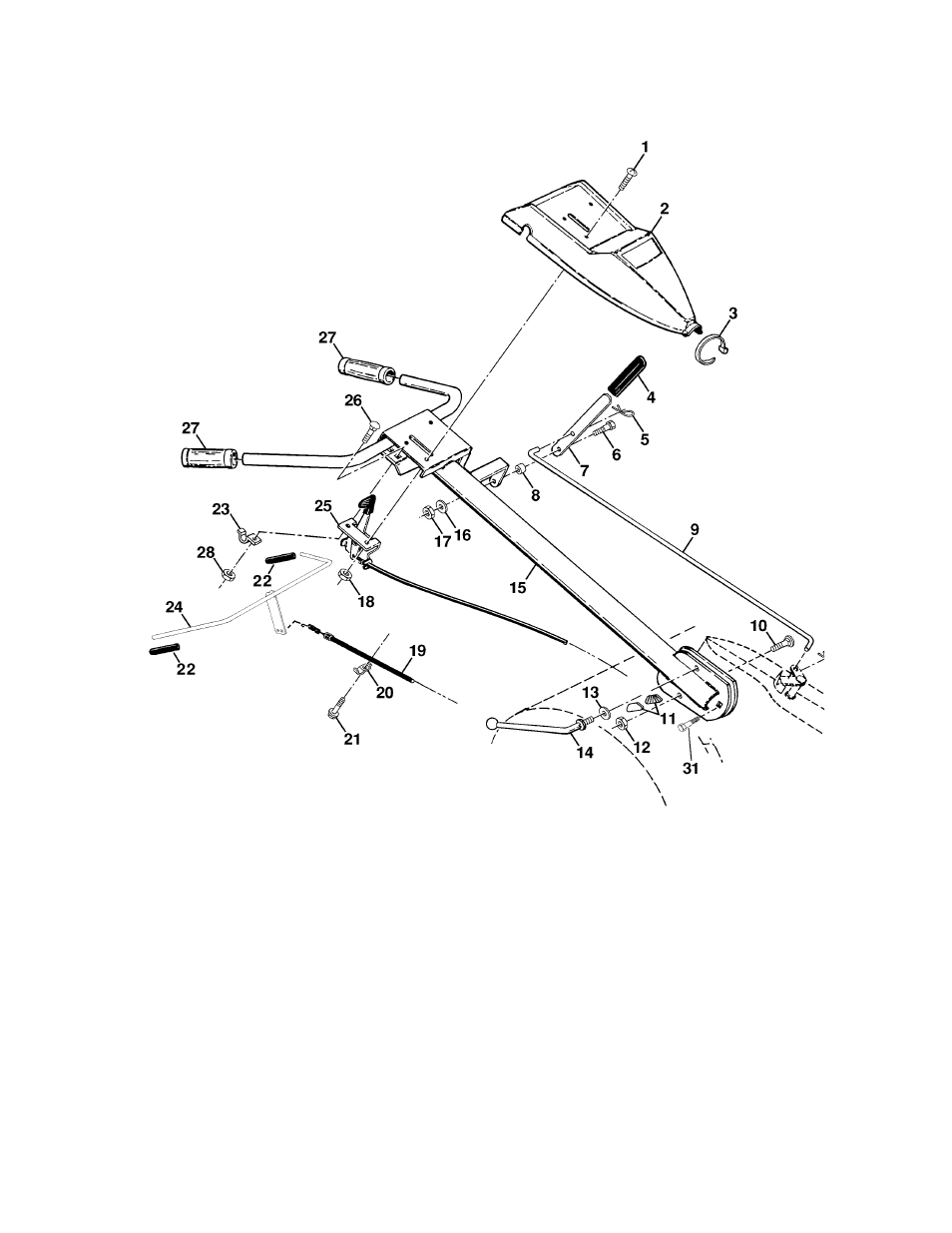

HANDLE ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
17 873220400 Nut, Hex 1/4-20
18 873731000 Nut, Keps #10-24 UNC
19 532159231 Cable, Clutch
20 532009484 Clip
21 532086777 Screw, Hex Washer Hd. Slotted
#10-24 x 1/2
22 532102604 Grip, Bar, Control
23 532102744 Clamp, Bar, Control
24 532159228 Bar Assembly, Control
25 532164743 Control, Throttle
26 872140404 Bolt, Carriage 1/4-20 UNC x 1/2
27 532009266 Grip, Handle
28 873510400 Nut, Keps Hex 1/4-20
31 532150696 Bolt, Pivot
KEY PART
NO. NO. DESCRIPTION
1 871191008 Screw, Truss Hd.
#10-24 UNC x 1/2
2 532126956 Panel, Control
3 532104164 Tie, Cable
4 532124797 Grip, Handle
5 532124788 Clip, Hairpin
6 532081328 Bolt, Shoulder
7 532109335 Handle, Shift
8 532109313 Grommet, Rubber
9 532109337 Rod, Shift
10 872110608 Bolt, Carriage 3/8-16 x 1 Gr. 5
11 532109229 Lock, Handle
12 873930600 Nut, Centerlock 3/8-16
13 819131611 Washer 13/32 x 1 x 11 Ga.
14 532109228 Lever, Lock, Handle
15 532151596 Handle
16 810040400 Washer, Lock 1/4
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
