English – 5
WHA T IS WHA T?

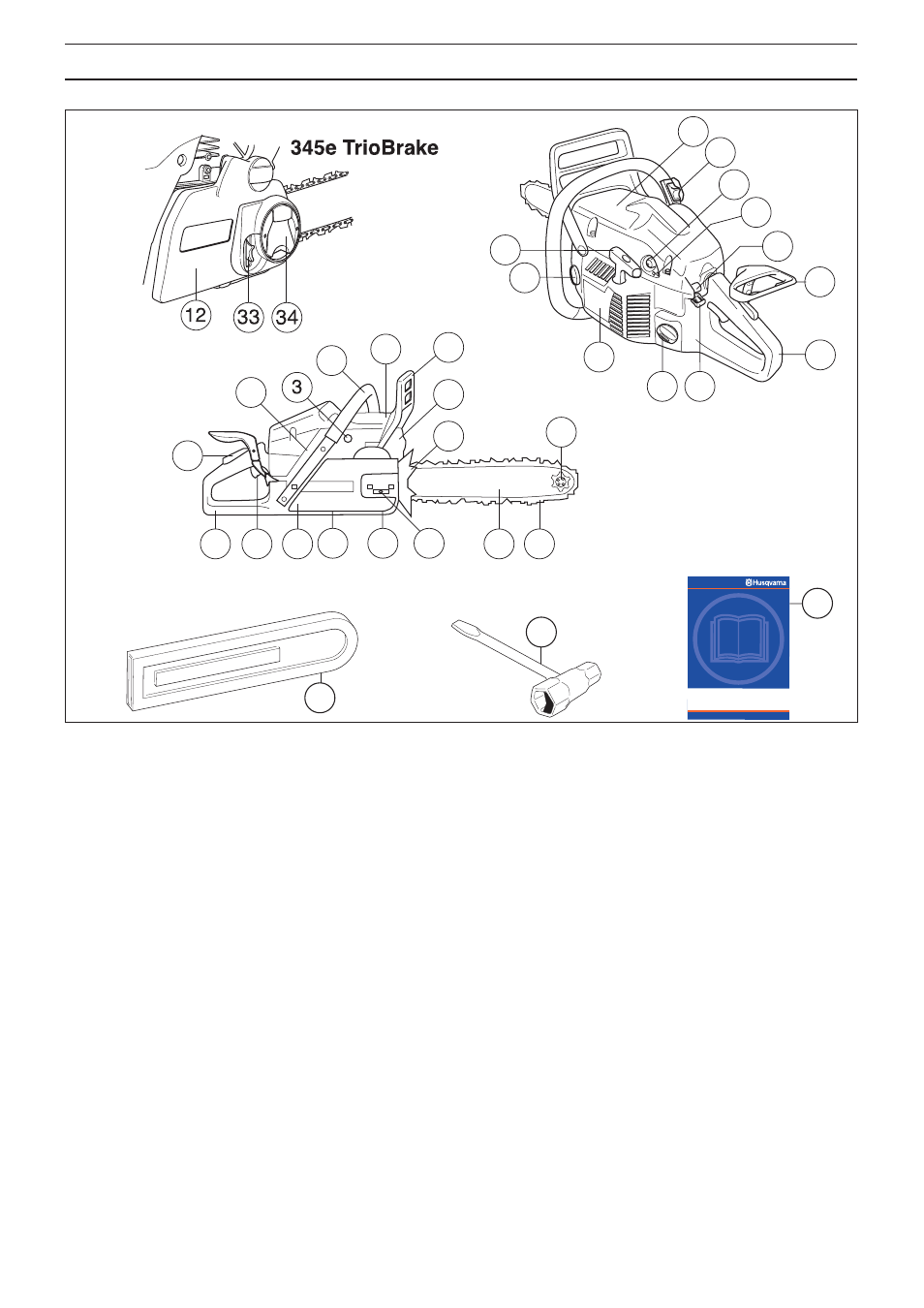

What is what on the c hain saw?
29
28
17 16 14 12 10
2
5 6
4
9
15 13 11
30
7
8
18
19
21 22
23
24
26
20
1
27
25
31
32
1 Product and serial number plate
2 Throttle lockout
3 Decompression valve (345e TrioBrake, 353 TrioBrake)
4 Front handle
5 Cylinder cover
6 Front hand guard
7 Muffler
8 Spike bumper
9 Bar tip sprocket
10 Rear handle with right hand guard
11 Throttle control
12 Clutch cover
13 Oil pump adjustment screw
14 Chain catcher
15 Chain tensioning screw
16 Bar
17 Chain
18 Starter handle
19 Chain oil tank
20 Starter
21 Fuel tank
22 Choke control/Start throttle lock
23 Rear handle
24 Stop switch
25 Adjuster screws carburettor
26 Air purge (345e TrioBrake)
27 Information and warning decal
28 Bar guard
29 Combination spanner
30 Operator ′ s manual
31 Right-hand brake trigger
32 Switch for heated handle (346XPG TrioBrake, 353G
TrioBrake)
33 Knob (345e TrioBrake)
34 Chain tensioner wheel (345e TrioBrake)
