ASSEMBLY
S Push the attachment into the coupling until
the attachment snaps into place.
S Before using the unit, tighten the knob se-
curely.
NOTE: Make sure unit is assembled cor-
rectly as shown in this manual.

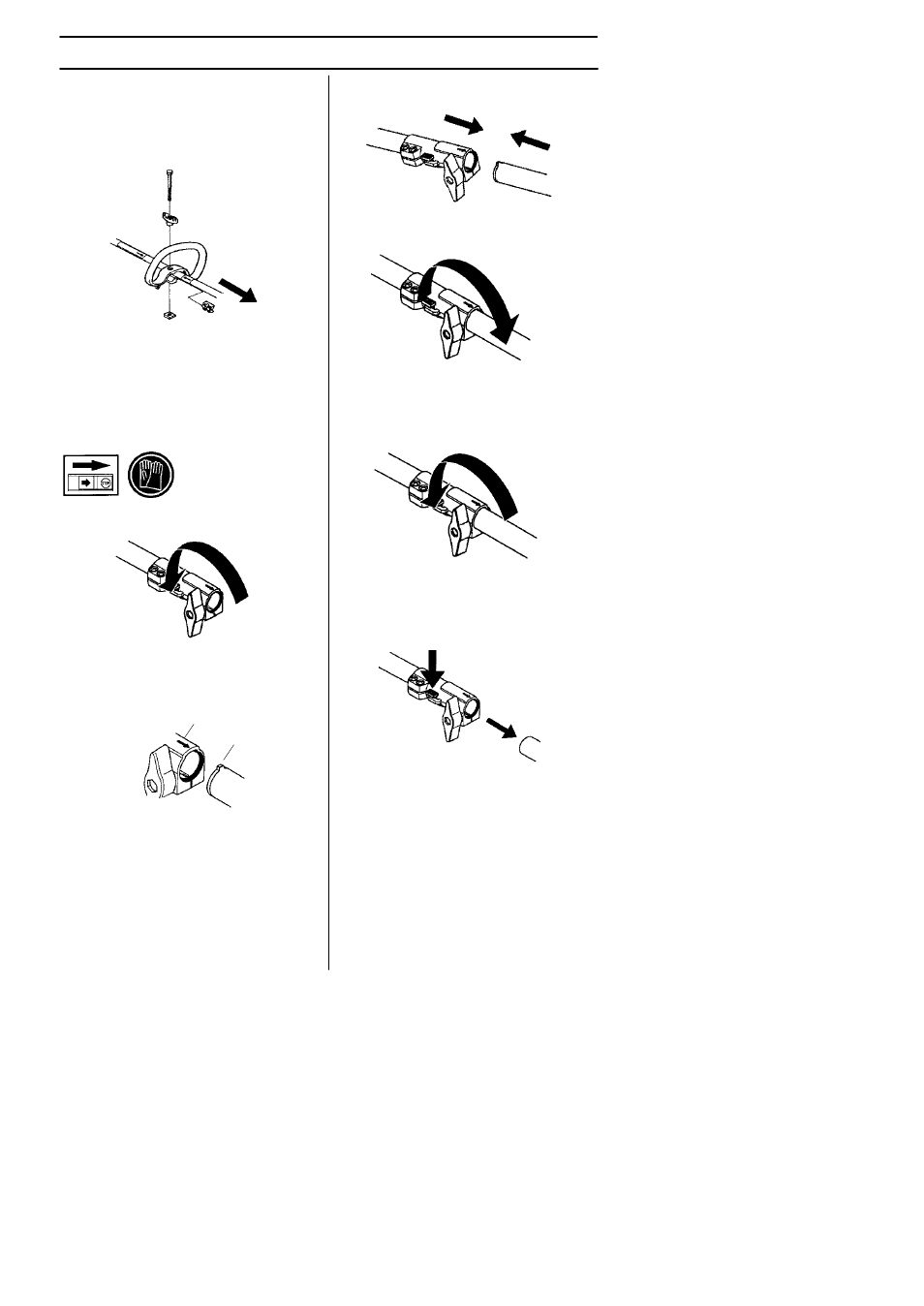

Fitting the loop handle
S Clip the loop handle onto the shaft. Note
that the loop handle must be fitted be-
tween the arrows on the shaft.
S Slide the spacer into the slot in the loop
handle.
S Fit the nut, knob and screw.
S Make a final adjustment of the loop
handle to a comfortable working position.
Tighten the knob (do not overtighten).
Assembling and dismantling
the two--piece shaft
Assembly:
S Loosen the coupling by turning the knob.
S Align the tab of the attachment (A) with
the arrow on the coupling (B).
B
A
Dismantling:
S Loosen the coupling by turning the knob
(at least three times).
S Push and hold the button (C). While
securely holding the engine end, pull the
attachment straight out of the coupling.
C
ENGINE
