English---10 115299326 Rev. 2 7/15/10
ASSEMBLY

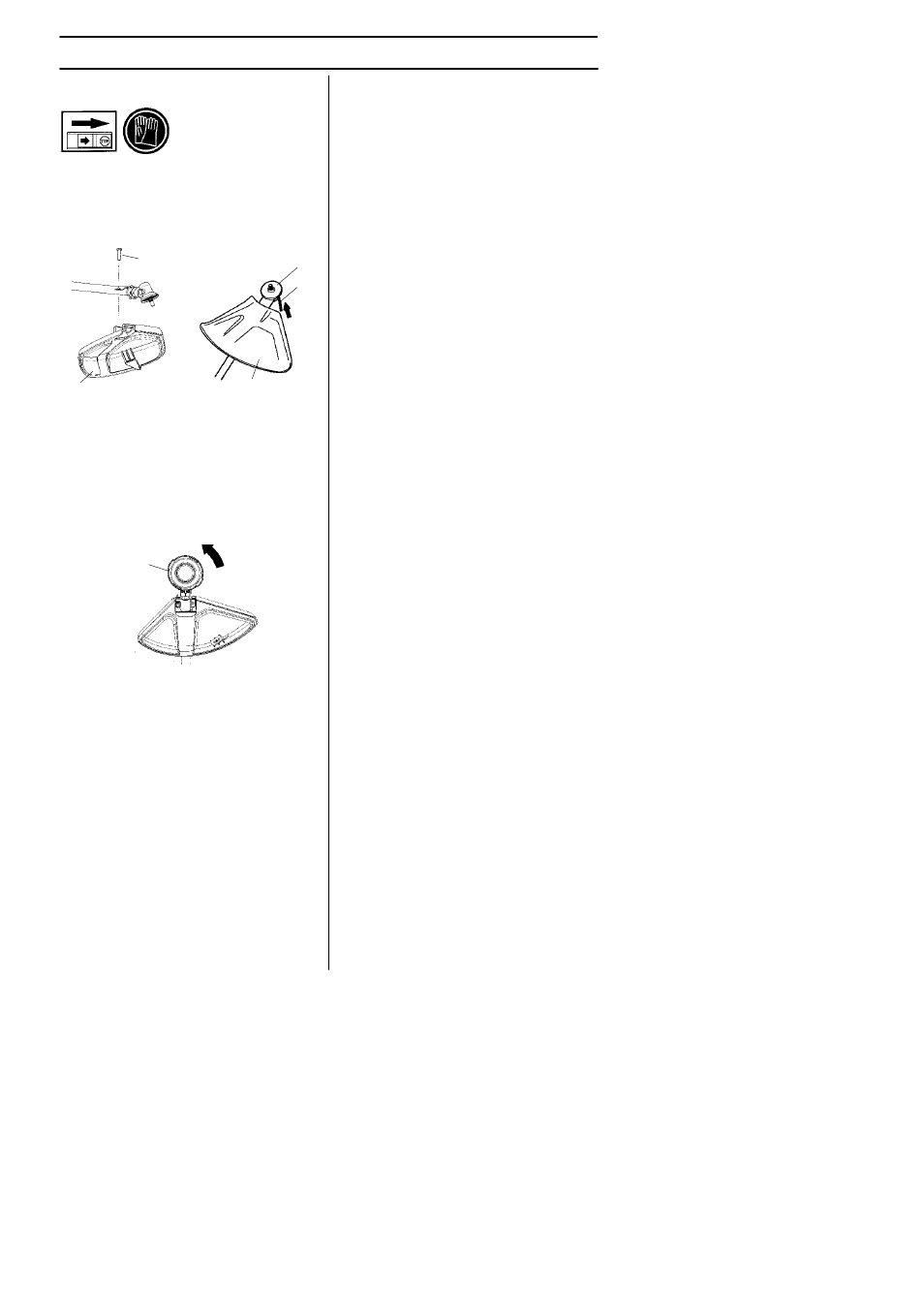

F itting the trimmer guard and
trimmer head
S Fit the correct trimmer guard (D) for use
with the trimmer head. Hook the trimmer
guard/combination guard onto the fitting
on the shaft and secure with the bolt (E).
S Fit the drive disc (F) on the output shaft.
S Turn the shaft until one of the holes in the
drive disc aligns with the corresponding
hole in the gear housing.
S Insert hex wrench (G) in the hole to lock
the shaft.
S Screw on the trimmer head (H) in the op-
posite direction to the direction of rota-
tion.
D
E
D
F
G
H
S To dismantle, follow the instructions in
the reverse order.
