ASSEMBLY
11 1740274

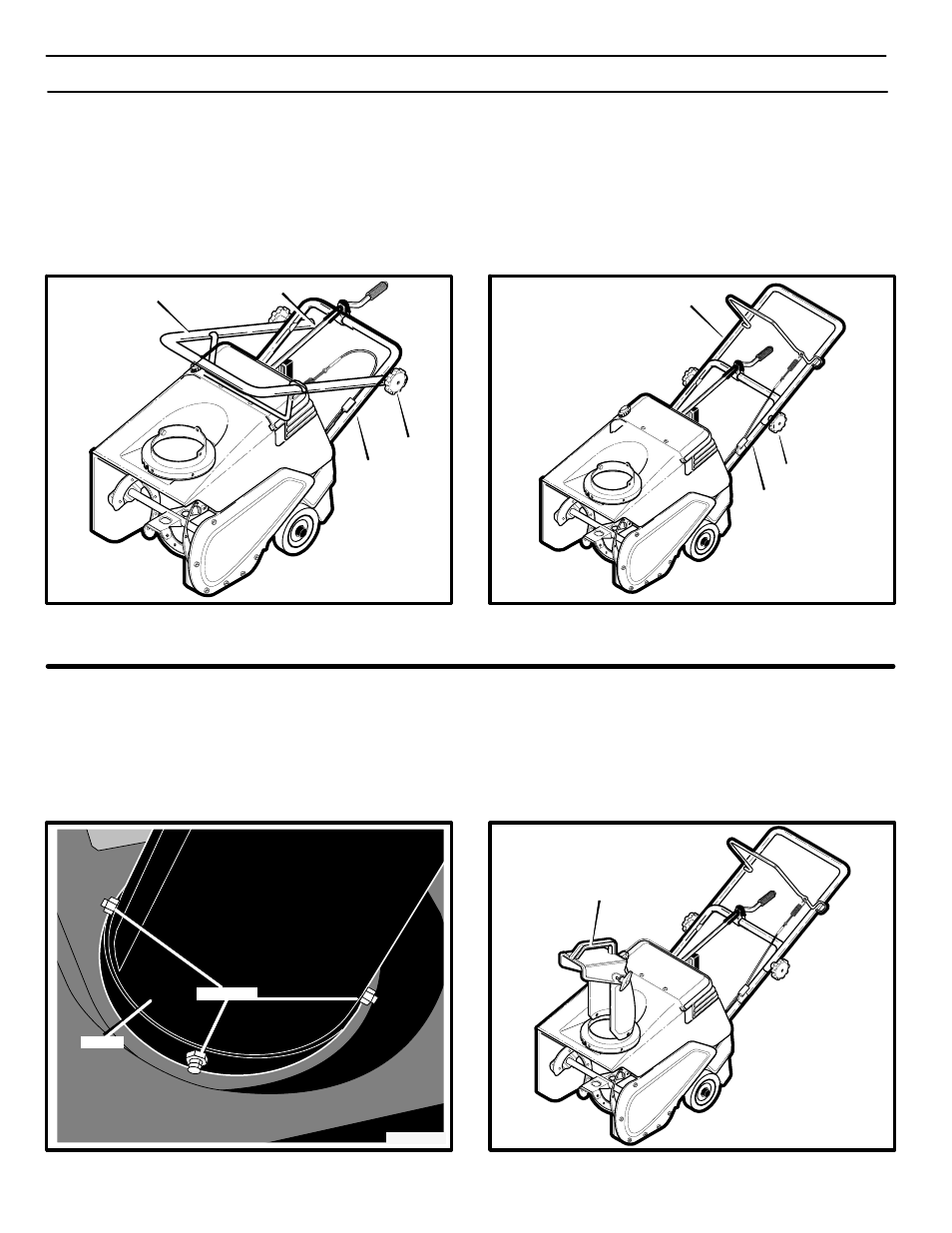

HOW TO ASSEMBLE THE HANDLE
1. Remove the packing material from the upper and lower
handles.
2. Loosen the knobs on each side of the handle. (See
Figure 3)
3. Raise the upper handle to the operating position (see
Figure 4). Hold the upper handle apart to prevent
scratching the lower handle.
NOTE: Make sure the cables are not caught between
the upper and lower handle.
4. Tighten the knobs.
Upper Handle
Knob
Figure 3
Lower Handle
Chute Crank Rod
Upper Handle
Knob
Figure 4
Lower Handle
HOW TO INSTALL THE CHUTE
1. Remove the three bolts and lock nuts from the chute
base (see Figure 5).
2. Install the chute with the bolts and locknuts. Make sure
the locknuts are to the outside as shown. Tighten
securely.
Figure 5
Locknuts
Chute
Chute
Figure 6
