F. Sidewalls/Surrounds
• Adjacent combustible sidewalls must be located a
minimum of 24 in. (305 mm) from the fi replace opening.
• Combustible mantel legs, surrounds and stub walls may
be constructed per Figure 12.12.
60-7/8 in.
50 in.
18 1/2 in. [470 mm]
19 3/4 in. [500 mm]
4 in.
[102 mm]
50° angle
39° angle
24 in.
[610 mm]
BRICK FRONT
FLUSH FRONT
24 in.
[610 mm]
22 3/8 in. [568 mm]
Note: Grid depicts 1 inch squares.

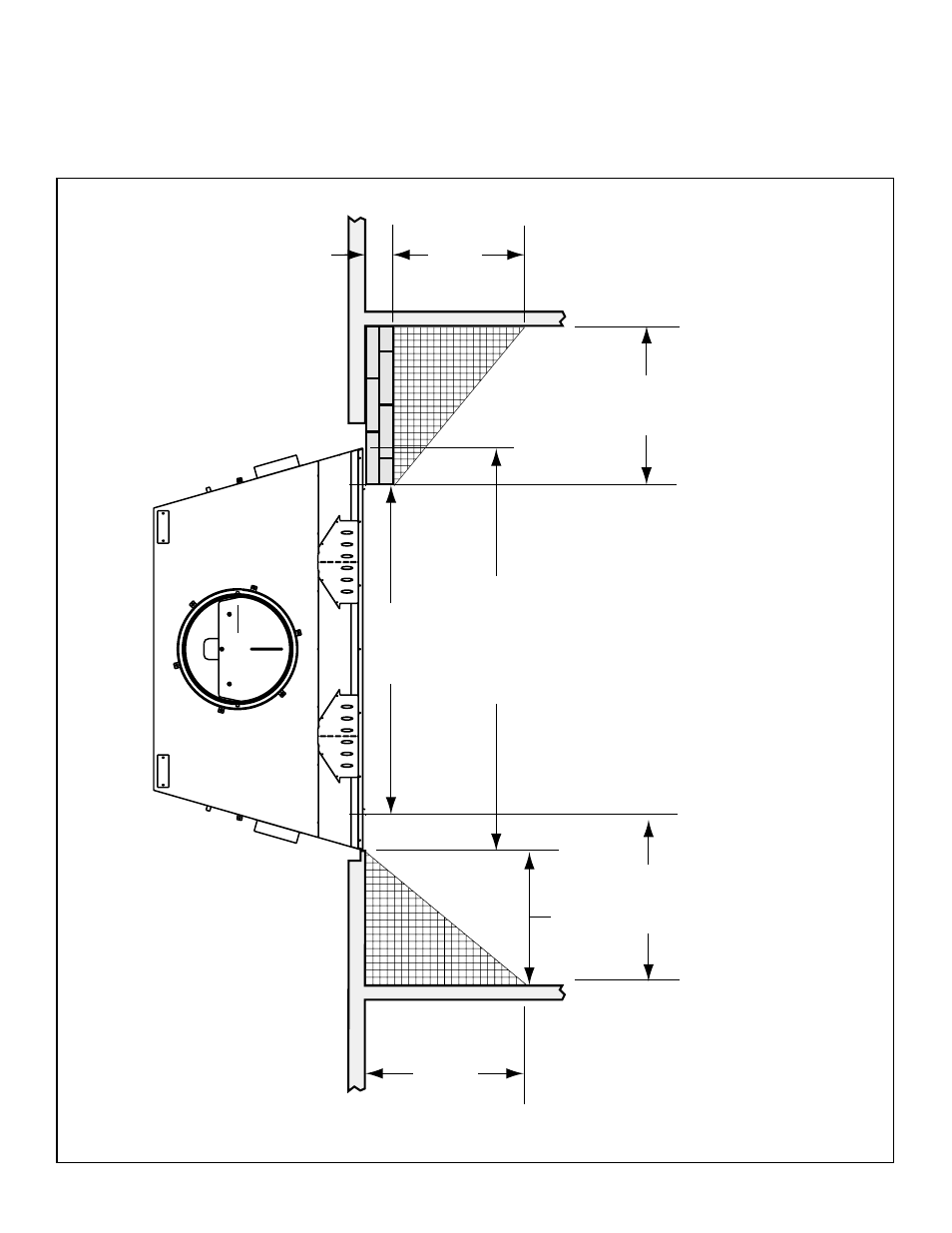

Figure 12.12 Combustible Mantel Leg or Wall Projections (Acceptable on both sides of opening)
Heat & Glo • RUTHERFORD-50 • 4059-333 Rev D • 07/08
