Keypad Navigation Map
You can use the inverter’s front panel keypad to navigate to any parameter or function.

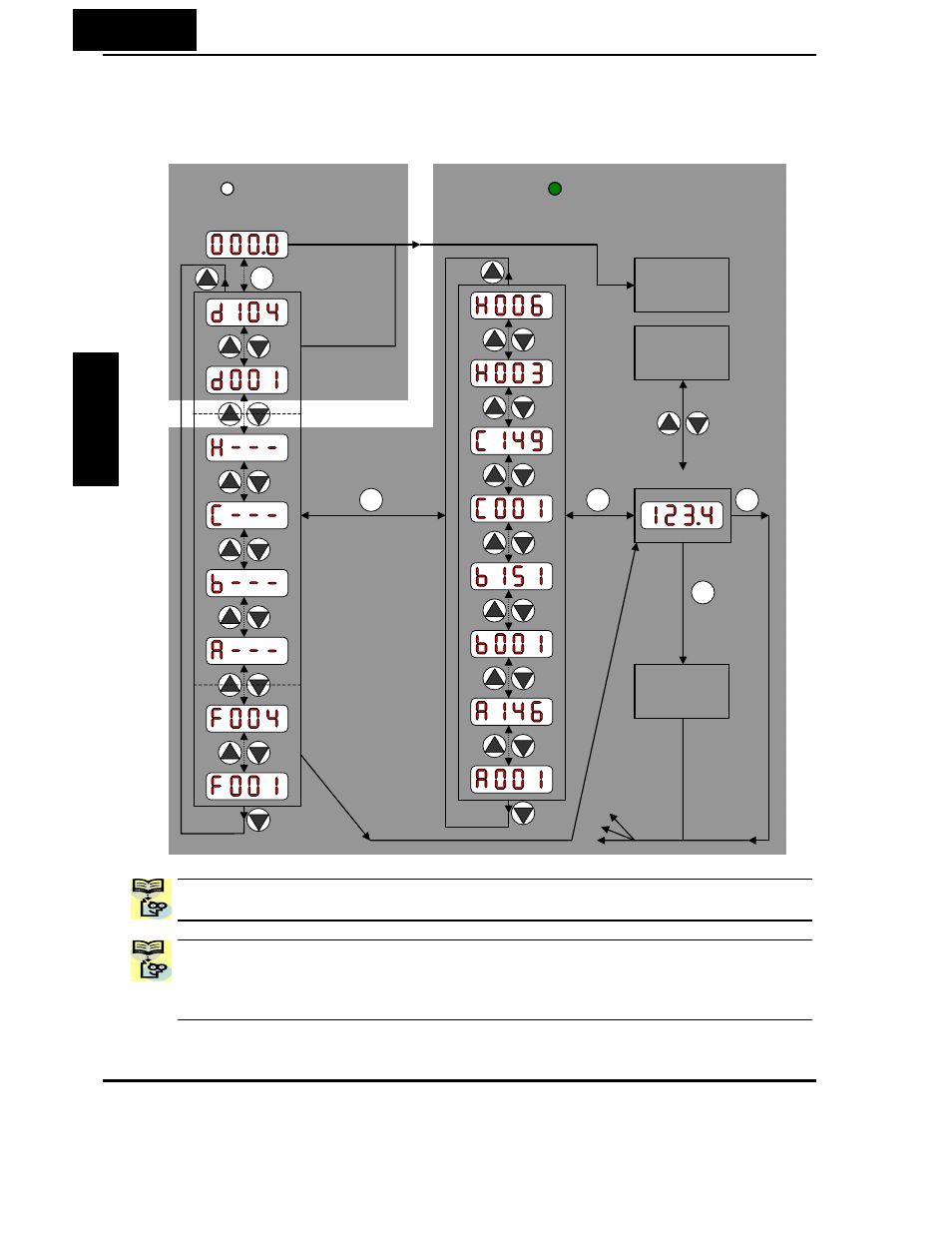

The diagram below shows the basic navigation map to access these items.
NOTE: The inverter 7-segment display shows lower case “b” and “d”, meaning the same
as the upper case letters “B” and “D” used in this manual (for uniformity “A” to “F”).
NOTE: The Store Key saves the edited parameter (shown in the display) to the
inverter’s EEPROM. Upload or download of parameters to/from external device is
accomplished through a different command–do not confuse
Store with Download or
Upload .
3−4
Confi
guri
ng Driv
e
Parameters
1 2
STR
Monitor Mode
PRG LED=OFF
Programming Mode
PRG LED=OFF
Display Data
FUNC
1 2
1 2
1 2
1 2
1 2
1 2
2
1
Select
Function or
Group
Power down
1 2
1 2
1 2
1 2
1 2
1 2
1 2
2
1
FUNC FUNC
Store as
powerup
default
Increment/
decrement
value
1 2
Edit
FUNC
Write
data to
EEPROM
Return to
parameter
list
Select parameter Edit parameter
