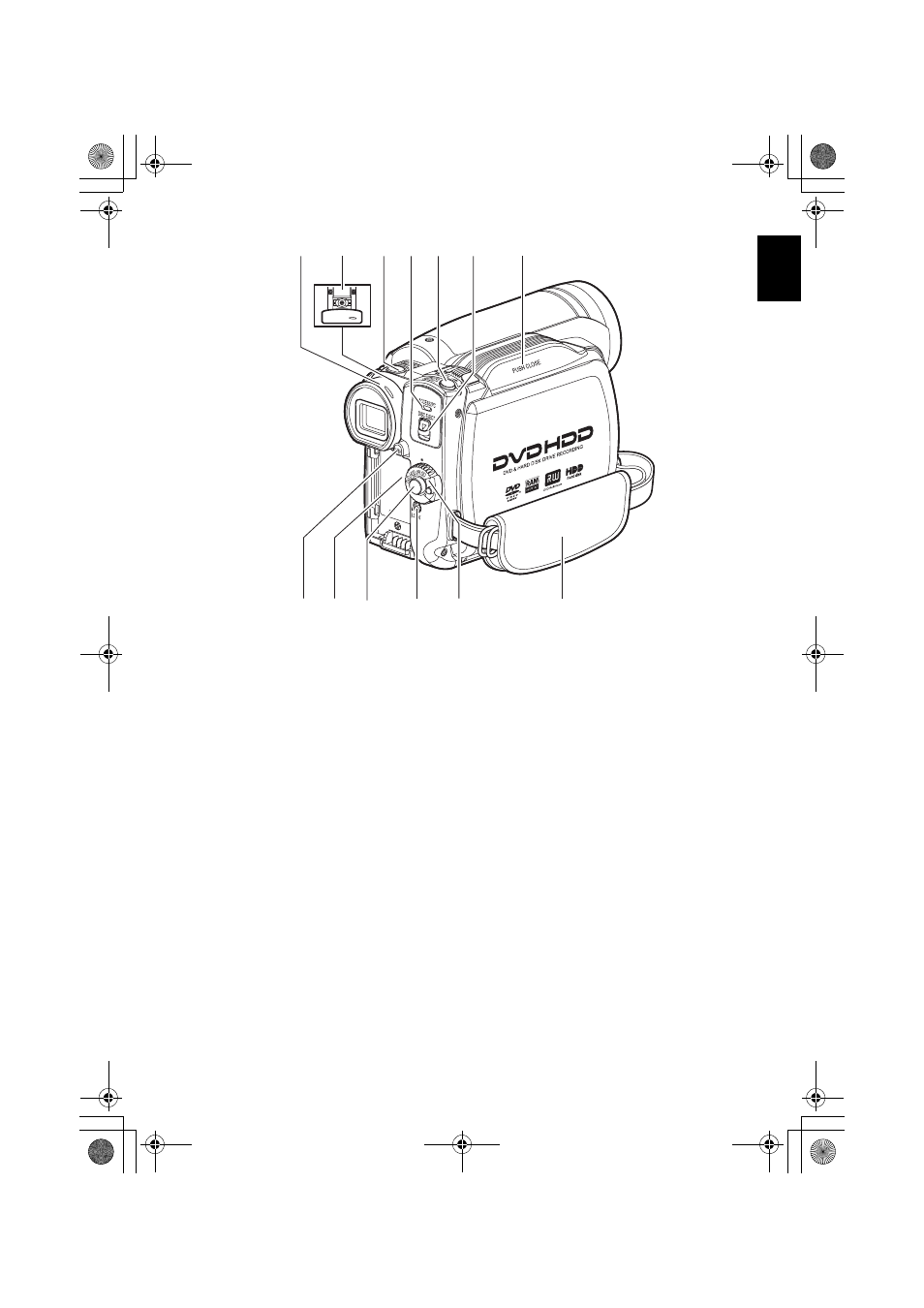

9 Viewfinder ( p. 32 )
10 Diopter control ( p. 32 )
To adjust the focus of image appearing in the
viewfinder. (Pull out the viewfinder.)
11 SLEEP/RESTART button ( p. 43 )
To switch the sleep/restart status between
ON and OFF.
12 ACCESS/PC indicator ( p. 8, 41 )
Will blink or light when the HDD/DVD is
accessed (write or read), or the DVD video
camera/recorder is connected to a PC.
13 PHOTO/SELECT button ( p. 42, 75, 93 )
14 DISC EJECT button ( p. 38 )
Press down and release this button to open
the cover of DVD insertion block.
15 DVD insertion block ( p. 38 )
16 BATTERY EJECT button ( p. 28 )
Press this button when removing the battery.
17 Battery attachment platform ( p. 28 )
18 Record button (REC) ( p. 41 )
19 LOCK switch ( p. 41 )
It is recommended that you set the LOCK
switch to L (to the upper position) to prevent
the power switch in the “HDD” position
from accidentally moving to “DVD”.
20 Power switch ( p. 31 )
21 Hand strap ( p. 21 )
