31
CONNECTIONS
Video Game Device
Video Disc Player
Satellite Receiver
When switching voltage comes into the Scart-Pin 8 during viewing a TV program, the current mode will be
switched to Scart mode.

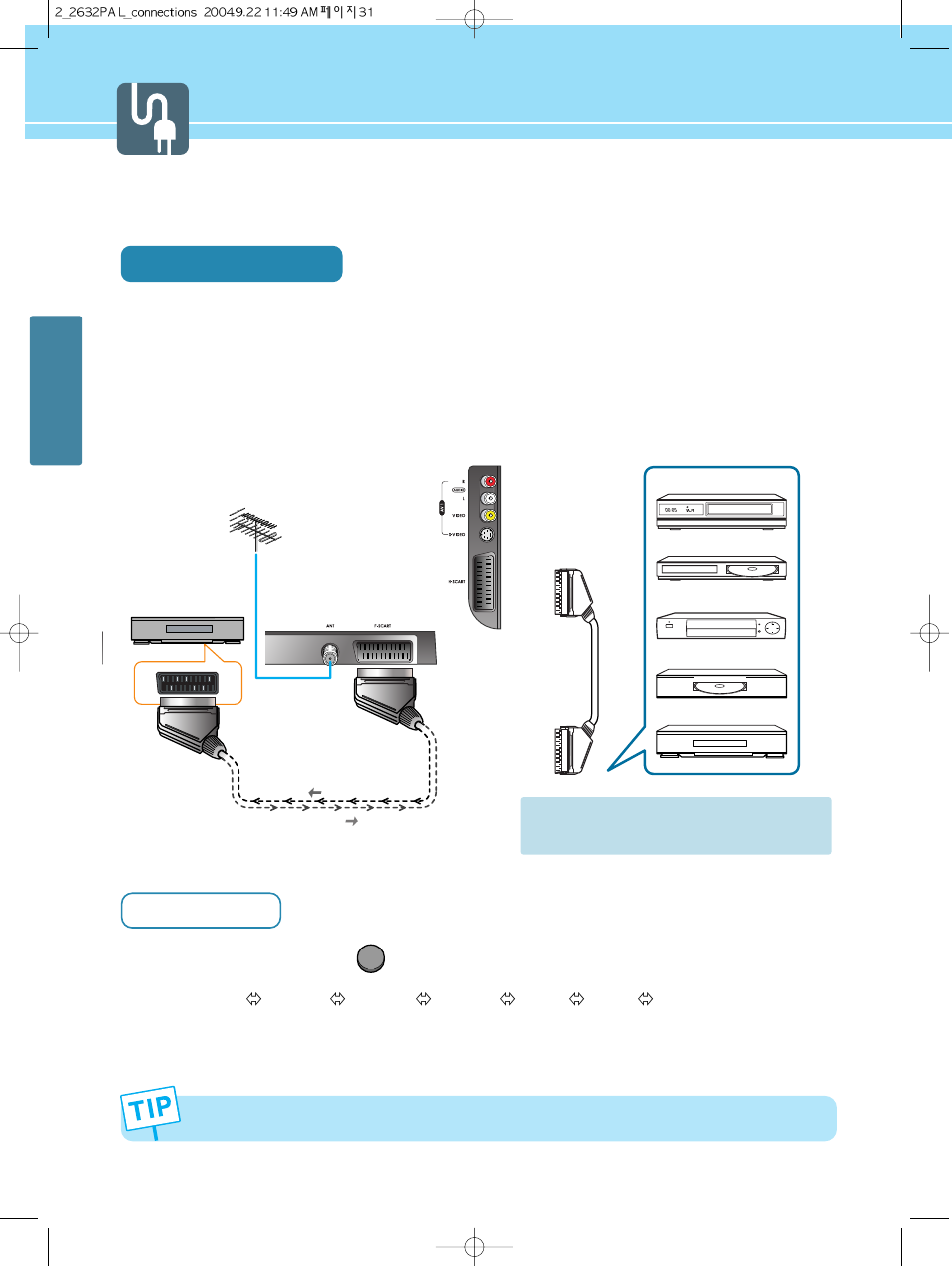

Scart Connection to the External Input/Output
Connection Method
This end can be fitted with : A Scart connector
If you have a second VCR and wish to copy a cassettes tape, connect the source VCR to “F Scart” and the
target VCR to “H Scart” so that you can redirect the signal from “F Scart” to “H Scart”.
“F Scart” sends the TV broadcast signal received through an antenna to a set-top box and it receives that
broadcast signal that the set top box has descrambled, which allows you to view the TV broadcast in AV
Mode.
How to Watch
Turn on your LCD TV and press on remote control unit.
You can select AV2 VIDEO AV1 S-VHS AV1 VIDEO SCART2 SCART1 TV in order.
Read a user manual of VCR, DVD, Satellite Receiver and other etc. for more details.
- F Scart Input : RGB, CVBS - F Scart Output : CVBS
- H Scart Input : CVBS - H Scart Output : CVBS
1
2
1
2
DVD
VCR
VIDEO
SET TOP BOX
VIDEO(CVBS) + Audio(L/R)
F SCART
TV OUT
TV IN
