HYUNDAI LCD TV HQL260WR/320WR
CONNECTIONS
26

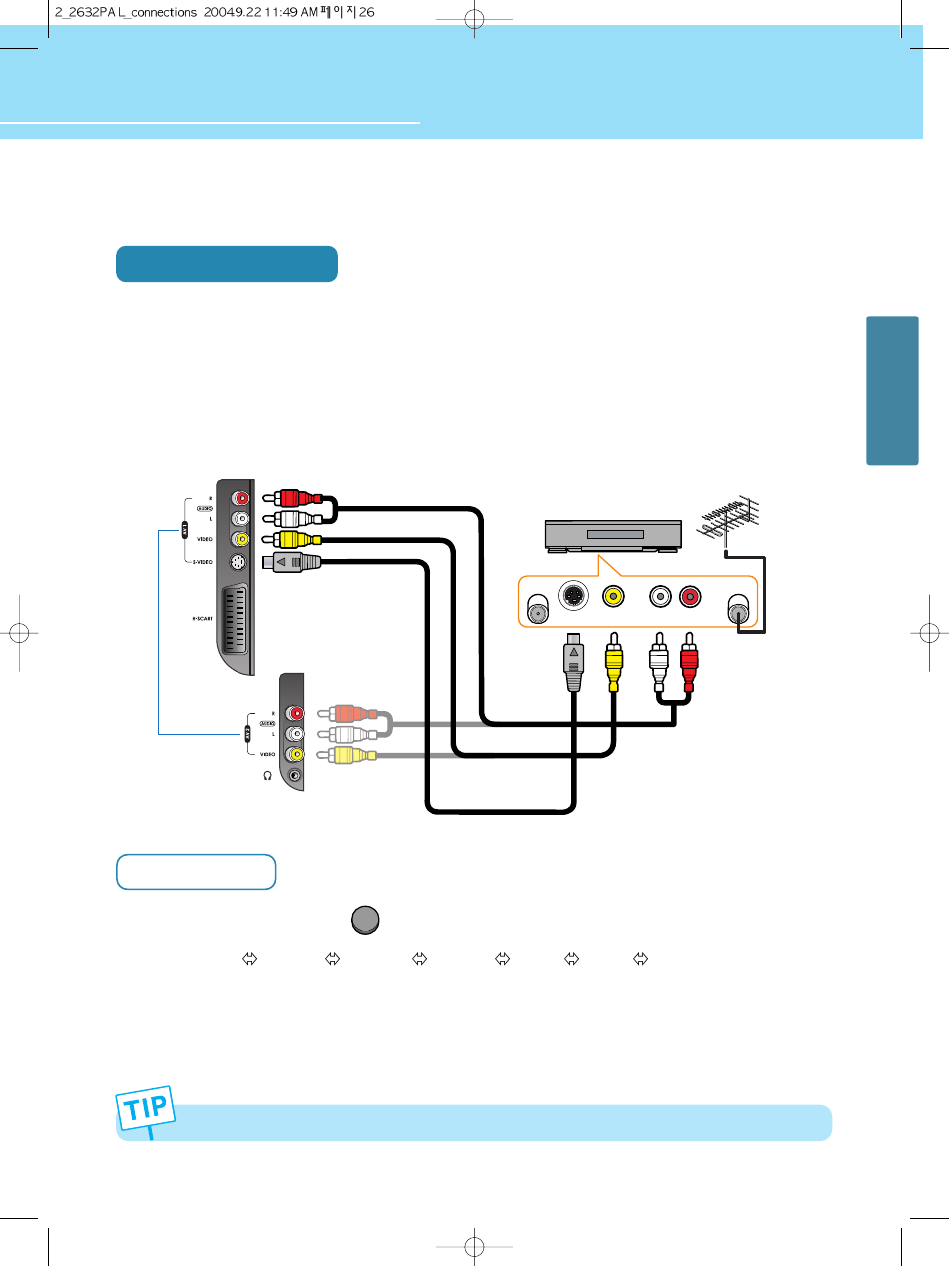

Connecting a VCR, Cable/Satellite Receiver
Connection Method
Connect Video/S-Video cable between Video/S-Video output terminal of VCR or Cable/Satellite receiver and
Video/S-Video input terminal of LCD TV.
(Connect cables and terminal in the same colors)
Connect Audio cable (left:white color, right:red color) between Audio output terminal of VCR or cable/satellite
receiver and Audio input terminal of LCD TV.
(Connect cables and terminal in the same colors)
How to Watch
Turn on your LCD TV and press on remote control unit to select Video or S-Video.
You can select AV2 VIDEO AV1 S-VHS AV1 VIDEO SCART2 SCART1 TV in order.
VCR play : Turn on the VCR and insert a tape and play it.
Cable/Satellite receiver play : Turn on the receiver and select a channel.
Read a user manual of VCR, Cable/Satellite Receiver for more details.
1
2
1
2
Use S-video cables for better picture quality.
VIDEO
)=,17 >1,-7 ;>1,-7
: 4
)6<16 )6<7=<
OR
Audio Cable
VIDEO Cable or
S-VIDEO Cable
VCR/Cable Receiver
