HP ProCurve 2626-PWR Configurations
The tables in the two example configurations contain entries that show the
PoE power available when the 2626-PWR is used alone. When used with the
HP 600 RPS/EPS unit, PoE power is available to the PoE ports should the
internal PoE power supply fail. Table entries show the PoE power available
when the HP 600 RPS/EPS alone provides PoE power.

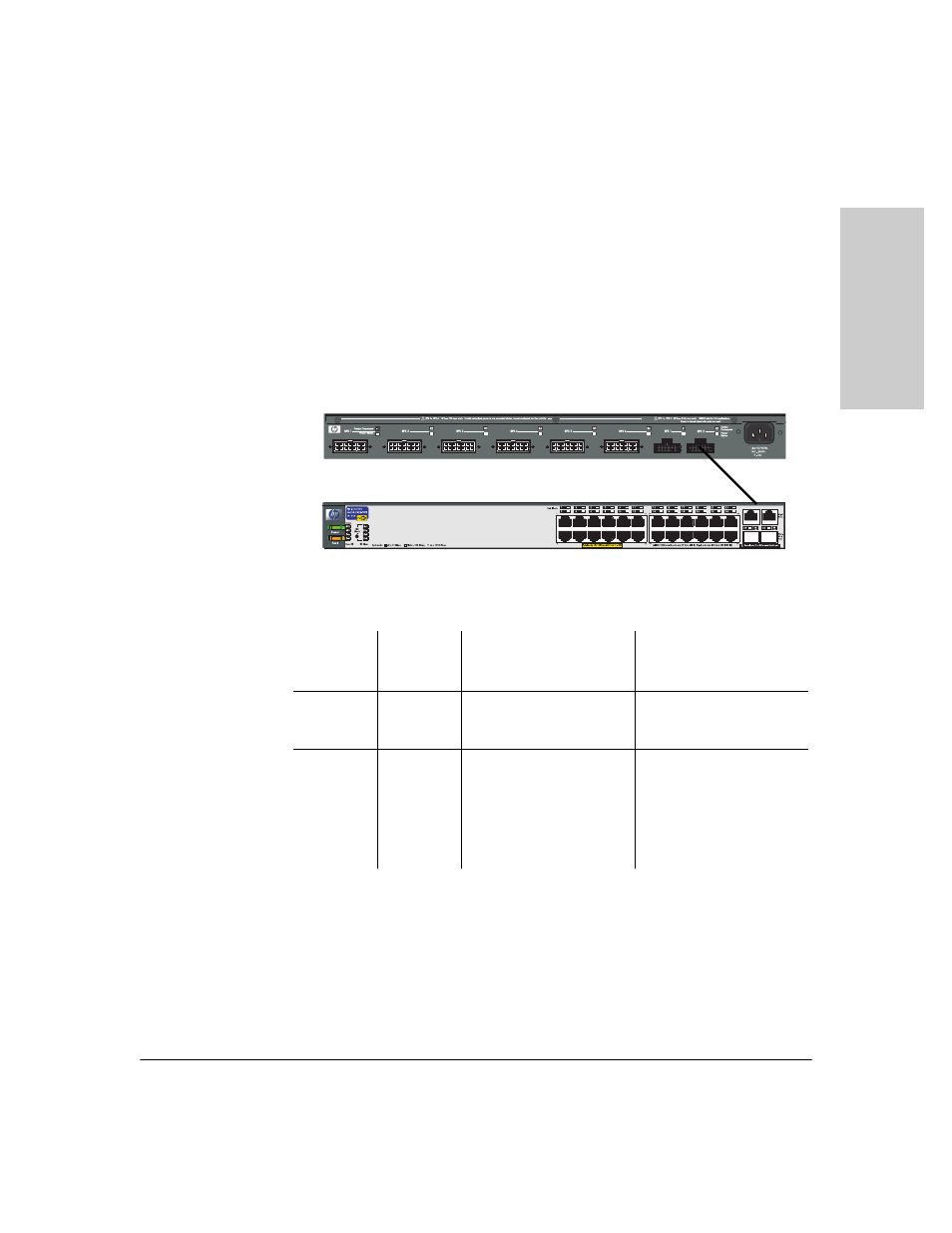

With an HP 600 RPS/EPS Powering One Switch
■
A single 2626-PWR switch with a dedicated HP 600 RPS/EPS unit has fully
redundant PoE power for all 24 ports at 15.4 W per port.
Source of
Power
Watts
Available
# of Ports Powered and
Average Watts/Port
Redundant # of Ports
Powered and Average Watts/
Port
Internal PoE
Power
Supply
406
24 @ average 15.4 W each
External PoE
Power
Supply
(Failed
Internal PoE
Power
Supply)
368
24 @ average 15.4 W each
