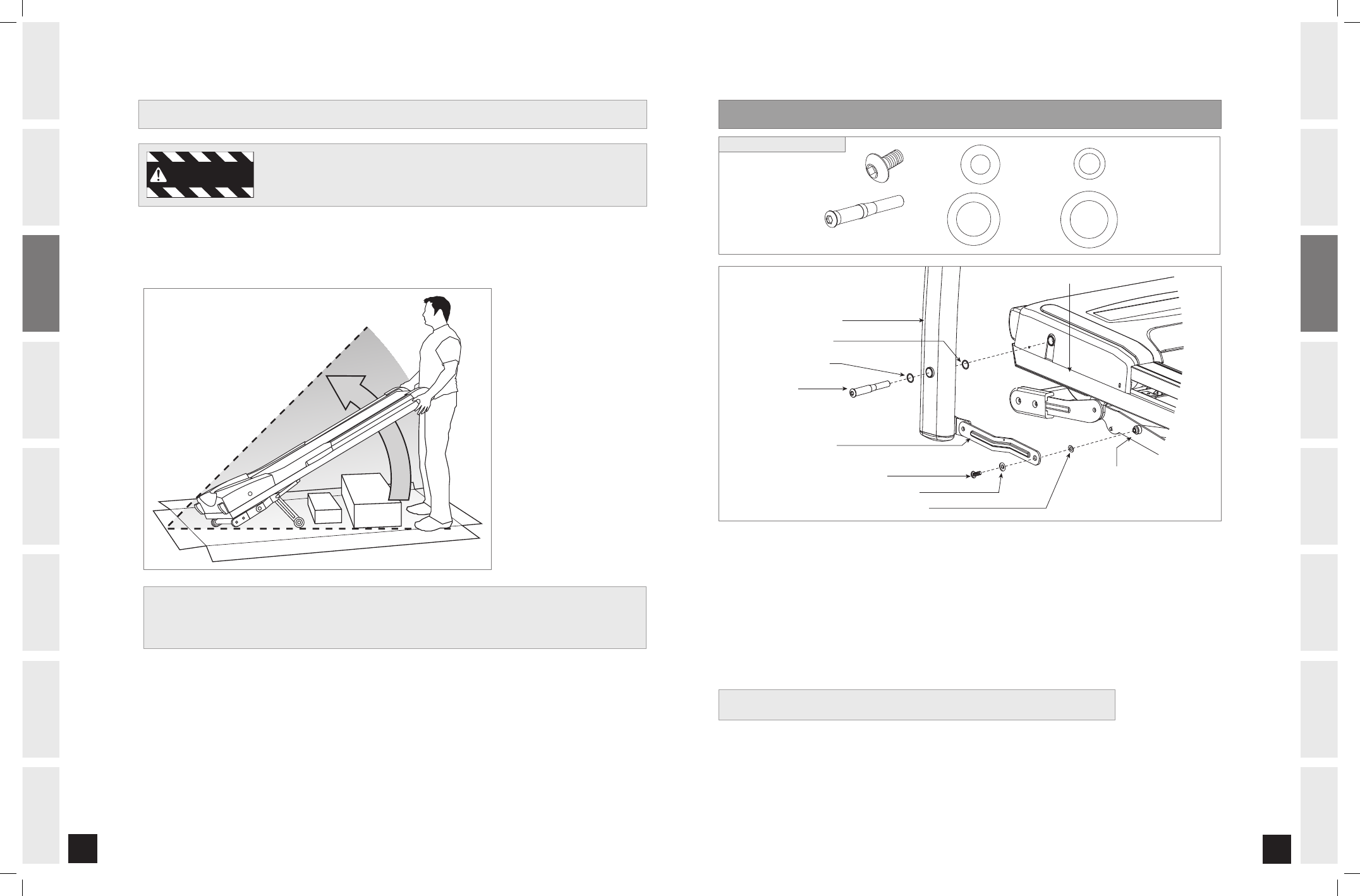

PRE-ASSEMBLY ASSEMBLY STEP 1
FLAT WASHER (B)
20 mm
Qty: 1
WAVY WASHER (F)
29 mm
Qty: 1 BOLT (D)
Qty: 1
BOLT (A)
15 mm
Qty: 1 TEFLON WASHER (C)
18 mm
Qty: 1
FLAT WASHER (E)
27 mm
Qty: 1
HARDWARE BAG 1 CONTENTS :
TEFLON WASHER (C)
FLAT WASHER (B)
BOLT (A)
LEFT CONSOLE MAST
BOLT (D)
MAIN FRAME
LEFT LINKAGE ARM
FLAT WASHER (E)
WAVY WASHER (F)
ELEVATION FRAME
DO NOT ATTEMPT TO LIFT THE TREADMILL!* Do not move or lift
treadmill from packaging until specified to do so in the assembly instructions.
Failure to do so may result in injury! Remove plastic wrap from console masts.
NOTE: During each assembly step, ensure that ALL nuts and bolts are in place and partially threaded in
before completely tightening any ONE bolt. NOTE: A light application of grease may aid in the installation
of hardware. Any grease, such as lithium bike grease is recommended.
WARNING
Open HARDWARE BAG 1.
Move LEFT LINKAGE ARM into position. Insert 1 BOLT (A) and 1 FLAT WASHER (B) into LEFT LINKAGE
ARM followed by 1 TEFLON WASHER (C) and attach to ELEVATION FRAME.
Lift LEFT CONSOLE MAST into upright position. Be sure to hold the
console mast firmly, as it will not stay in the upright position on its own.
Insert 1 BOLT (D) and 1 FLAT WASHER (E) through LEFT CONSOLE
MAST followed by 1 WAVY WASHER (F) and attach to MAIN FRAME.
A
B
C
D
NOTE: Do not completely tighten any screws or bolts until step 6 is complete!
* NOTE: If you have lifted the treadmill deck too far or attempted to move the machine and it has
sprung open and cannot be assembled, refer to the troubleshooting section in order to restore the
treadmill to its proper position.
DO NOT
EXCEED
45
DEGREES!
Cut the yellow banding
straps.
Raise the deck slightly
– NO MORE THAN
DEGREES – to remove
all contents from
underneath the deck.
A
B
