Heat & Glo • PIER-HV-IPI, ST-HV-IPI, L&R-COR-HV-IPI • 2005-900 Rev. M • 9/08 12
Valve Assembly Parts List
Service Parts L&RCOR-HV-IPI
Beginning Manufacturing Date: June 2003
Ending Manufacturing Date: ______
PIER-HV-IPI, ST-HV-IPI
NOTE: Replacement bulbs to be supplied by homeowner. Recommended replacements: Sylvania Mini Candelabra 75 watts.
ITEM DESCRIPTION SERIAL # PART NUMBER
Pilot Assembly NG 385-510A Y
Pilot Assembly LP 385-511A Y
2 Ground Strap 385-512 N
3 Pilot Assembly Support 385-120 N
4 Pilot Bracket 2005-118 N
5 Ember Box Assembly 2005-114 N
6 Flexible Gas Connector 2005-009 Y
7 Valve Bracket 2005-120 N
8 On/Off Rocker Switch 060-511 Y
9 Flex Ball Valve Assembly 302-320A Y
10 On/Off Wire Assembly 060-521A Y
Valve NG 750-500 Y
Valve LP 750-501 Y
12 Module 593-592 Y
13 Module Wire Assembly 593-590A Y
Battery Pack 593-594A Y
3 Volt Transformer 593-593A Y
Light Bulb 700-540 Y
Orifice NG (#32) 582-832 Y
Orifice LP (#50) 582-850 Y
Stocked
at Depot
1
11
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement
parts for your appliance please provide model number and serial number. All parts listed
in this manual may be ordered from an authorized dealer.

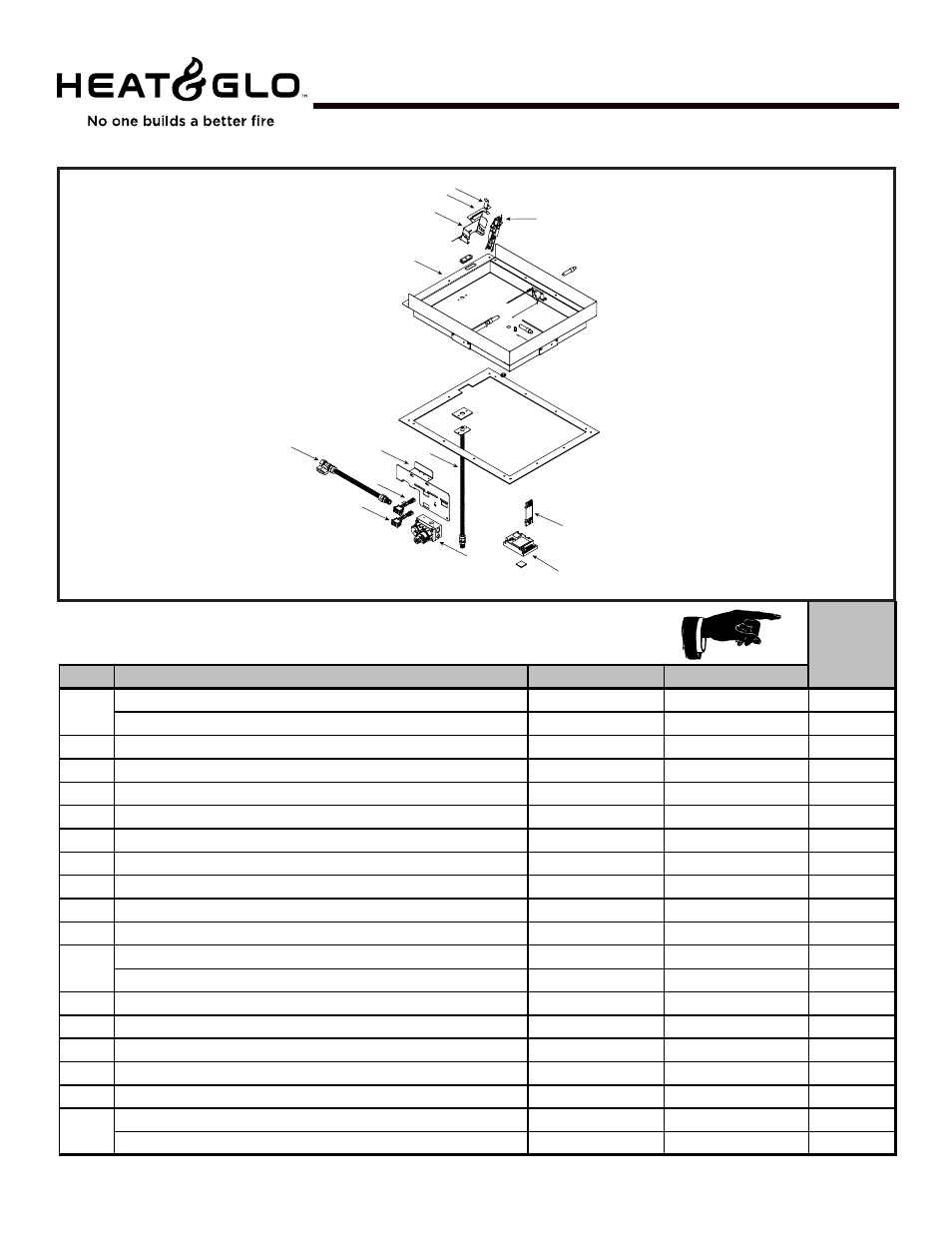

IPI Valve Assembly 1
2
3
4
5
6 7
8
9
10
11
13
12
