WHA T IS WHA T?

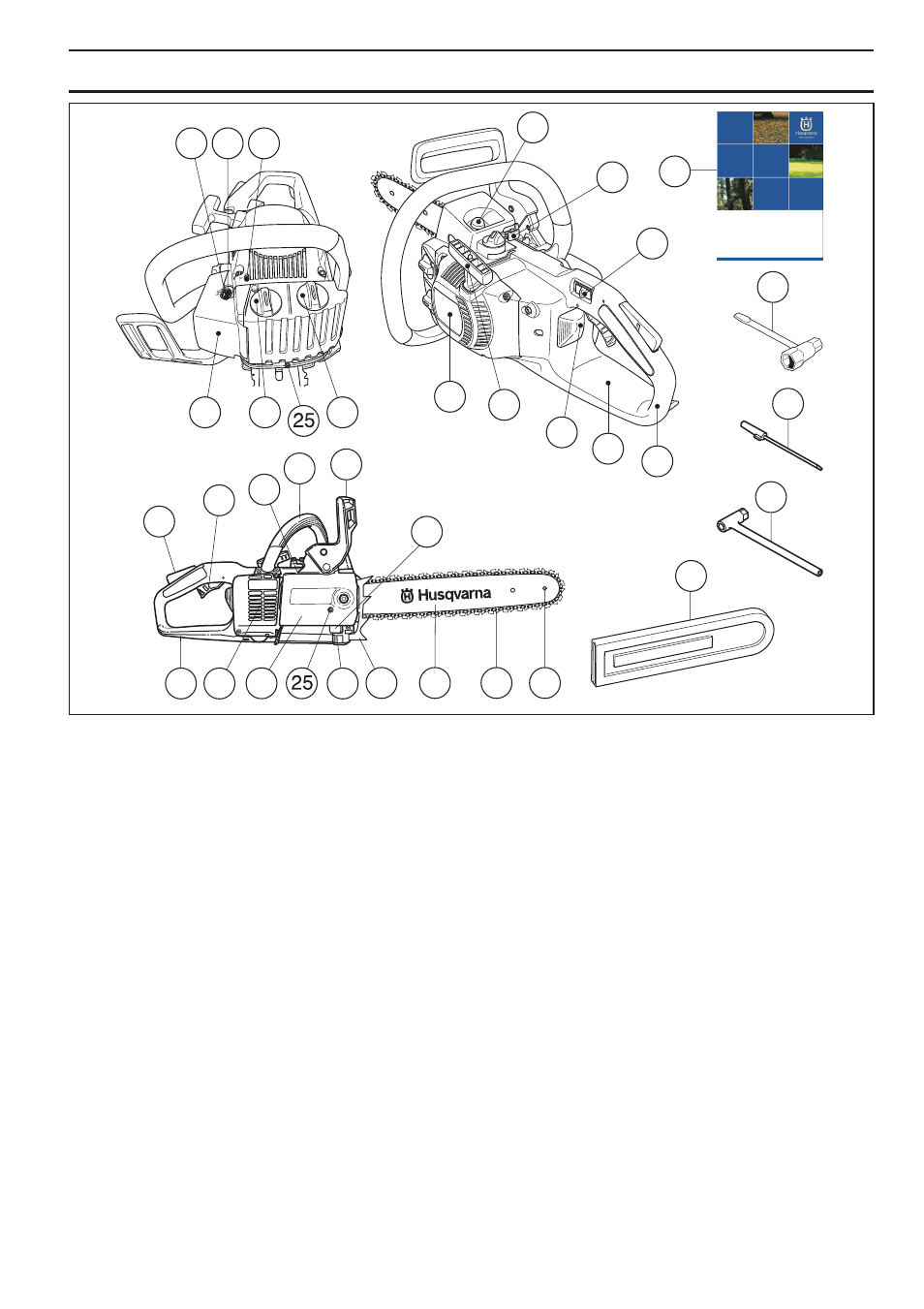

What is what on the c hain saw?
8 8 8
6 12 1
3
4
14 15 16 30 18 19 20
21
22
28
13
32
26
24
23
29
27
17
10
5
7
2
9
11
31
1 Filter cover
2 Air purge
3 Front handle
4 Front hand guard
5 Starter
6 Chain oil tank
7 Starter handle
8 Adjuster screws carburettor
9 Choke control
Choke control/Start throttle lock
Working position
10 Rear handle
11 Stop switch (Ignition on/off switch.)
12 Fuel tank
13 Muffler
14 Bar tip sprocket
15 Chain
16 Bar
17 Spark plug cap
18 Chain catcher
19 Clutch cover with built-in chain brake.
20 Rear handle with right hand guard
21 Throttle control
22 Throttle lockout
23 Screwdriver
24 Combination spanner
25 Chain tensioning screw
26 Operator
′
s manual
27 Transport guard
28 Oil pump adjustment screw
29 Spark plug spanner
30 Spike bumper (Available as an accessory.)
31 Information and warning decal
32 Product and serial number plate
