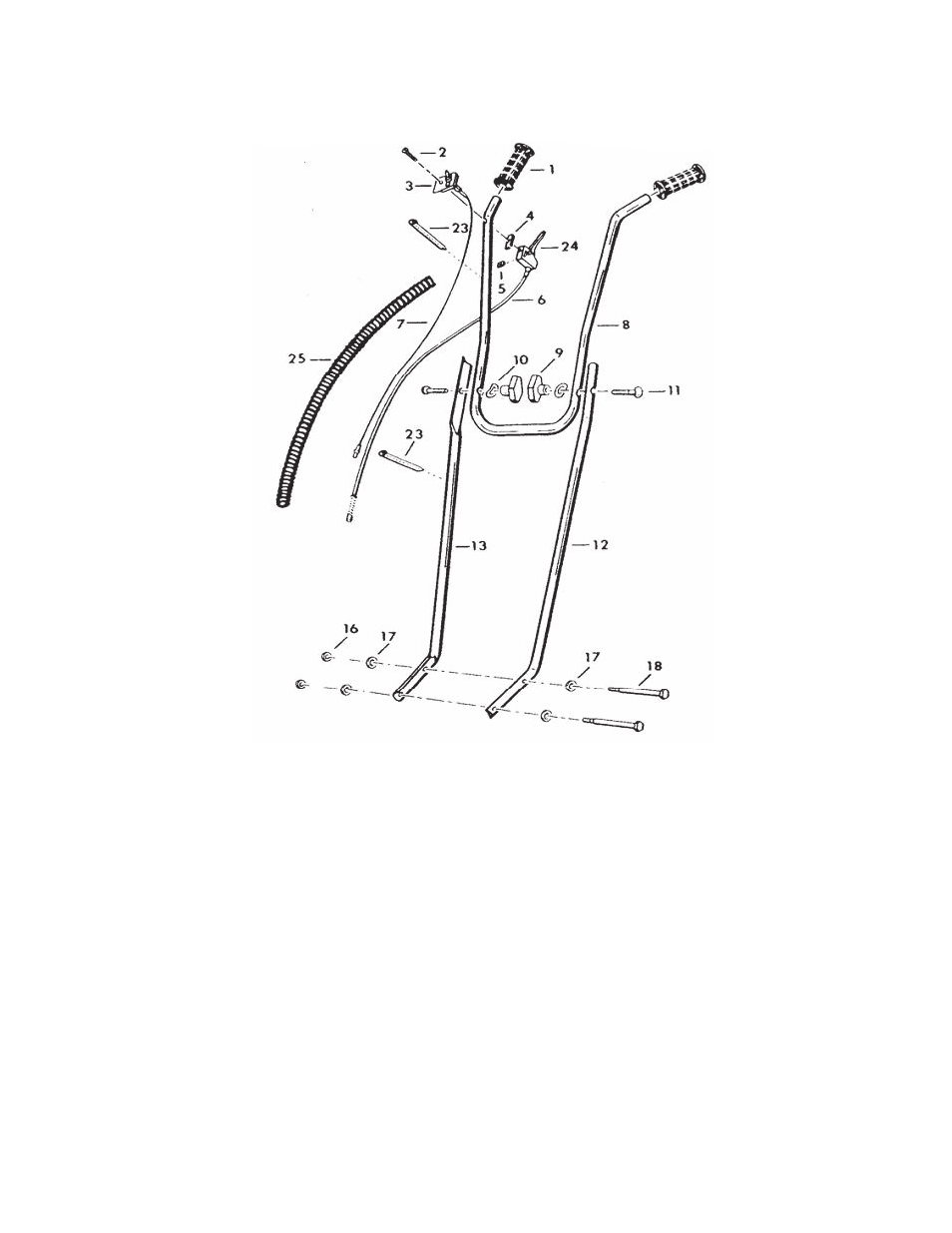

HANDLEBARS/GRIP/ON-OFF SWITCH/

THROTTLE CONTROL/THROTTLE CABLE

ITEM ORDER

NO. NO.

DESCRIPTION

QTY. REQ.

1

505

29

00-01

Grip,

Handlebar

2

2

505 29 00-02 Screw, #10-24 x 1 3/8

1

3

505 29 00-03 Switch Assy, w/Mtg Plate

1

4

505

29

00-04

Isolator

1

5

505 29 00-05 Nut, Throttle/Switch Assy

1

6

505

29

00-06

Throttle

Cable

1

7

505

29

00-07

Wire

Assembly

1

8

505 29 00-08 Handlebar, Upper

1

9

505 29 00-09 Knob, Plastic, Handlebar

2

10

505 29 00-10 Washer, Curved Knob

2

11

505 29 00-11 Screw, Curved Hd 5/16-18 x 1 1/2

2

12

505 29 00-12 Handlebar, Lower L.H.

1

13

505 29 00-13 Handlebar, Lower R.H.

1

16

505

29

00-14

Nut,

1/4-20

2

17

505

29

00-10

Washer,

Curved

4

18

505 29 00-15 Screw, 1/4-20 x 4 1/2

2

23

505

29

00-59

Tie

Strap

2

24

505

29

00-16

Throttle

Trigger

1

25

505 29 00-17 Housing, Wire Assy & Thrl Cable

1
