Assembly and Installation SB2040 Snowblower

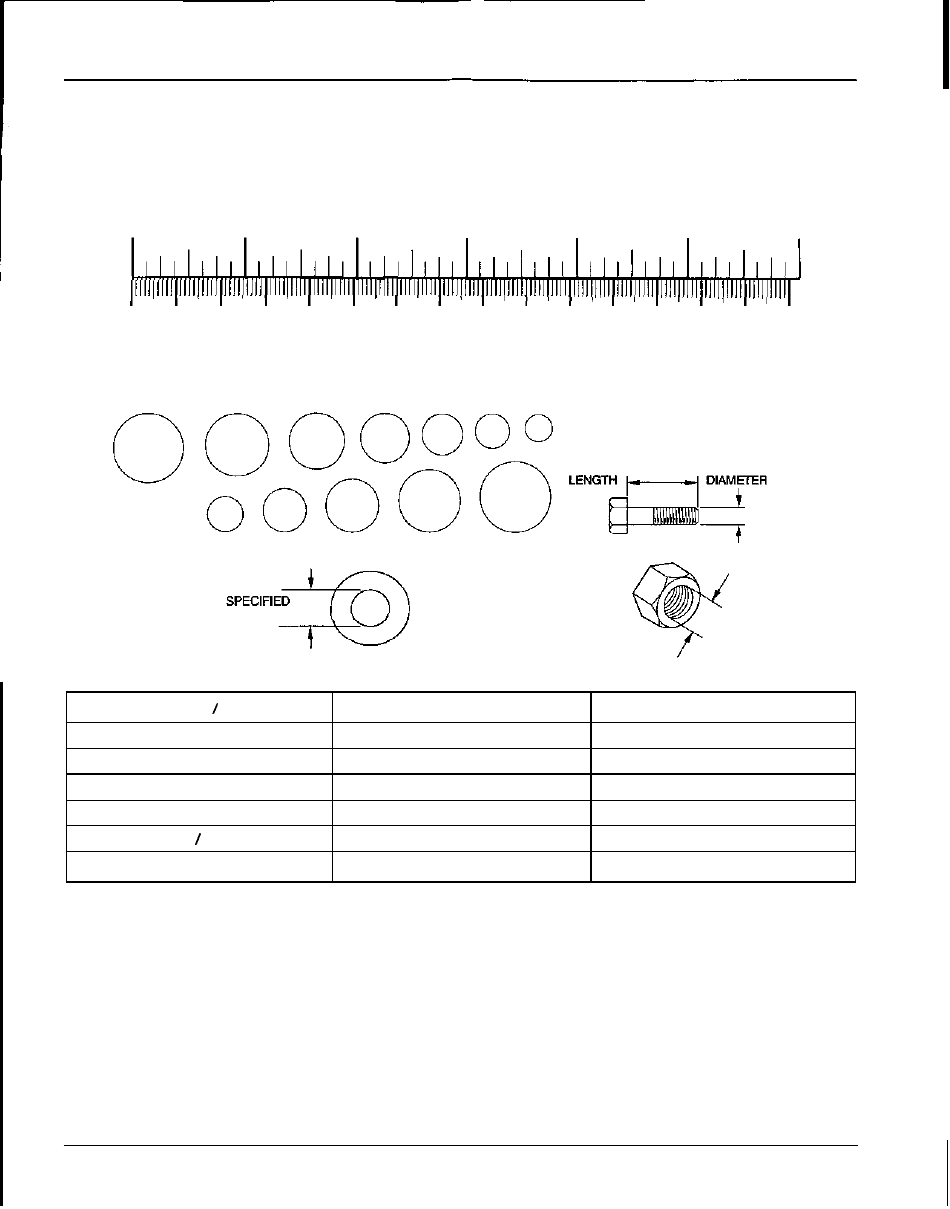

Hardware Measuring Chart
How to measure hardware and components:
INCHES
0 1 2 3 4 5 6
I I I I I I I I I I I I I I I I
0 1 0 20 30 4 0 50 60 70 80 90 1 0 0 1 1 0 1 2 0 1 3 0 1 4 0 1 5 0
MILLIMETERS
5/8 In 9/1 6 In 1/2 In 7/16 In 3/8 In 5/16 In 1/4 In
0 0
5 m m 6 m m 8 m m 10mm 12mm 14 rnm 16 rnm
INSIDE
DIAMETER
WASHERS ARE NUTS ARE SPECIFIED
BY INSIDE DIAMETER BY INSIDE DIAMETER
(AT THREAD DEPTH)
Torque Values
Fastener Size
45-52 61 -70 Hex nut bolt, 1/2"
30-35 41 -47 Hex nut I bolt, 7/1 6"
20-23 27-31 Hex nut I bolt, 3/8"
10-12 14-16 Hex nut I bolt, 5/1 6"
5-6 6.8-8.1 Hex nut I bolt, 1/4"
ft-lb. Nom
8 x 25 mm flange bolts 9-1 9 7.2- 14
8
POP 52152 (9610)
