Page 36 August 1, 2008 Heat & Glo · Tiara I B & Tiara II B · 7010-149M
SPEED CONTROL
LOCK NUT
AND STEM
Figure 8.31 Remove the knob and lock nut from the speed
control. Install speed control onto access panel with stem
sticking out the pre-punched hole. Attach the lock nut tightly
and reattach the knob on the stem.
Attach blue and black wires routed through orange grommet
in fan housing to the speed control. Reinstall access
panel.

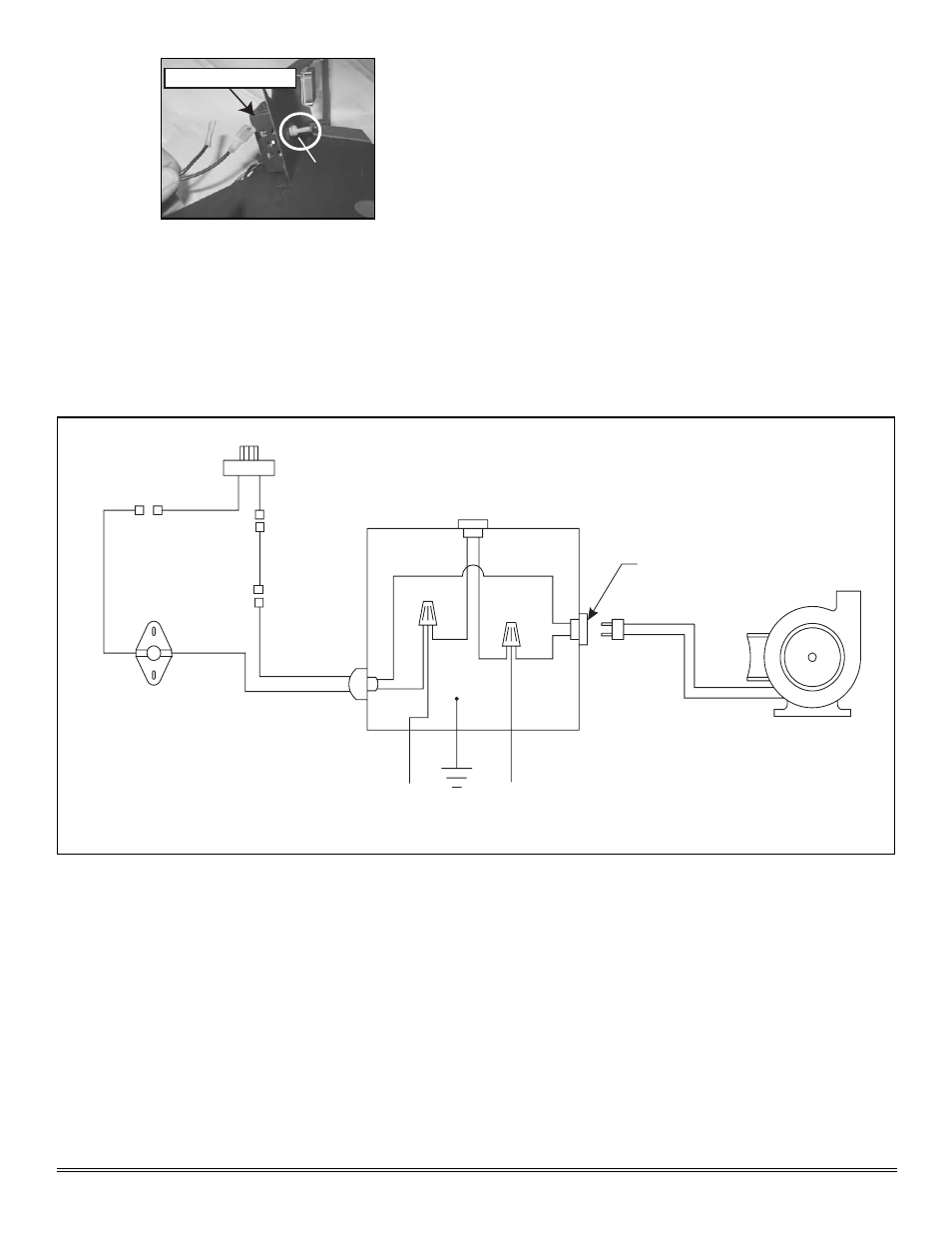

TEMPERATURE SENSOR SWITCH
BLACK
BLACK
BLACK
BLACK
BLACK
VARIABLE SPEED CONTROL
JUNCTION BOX
GROUND
110 - 120 VAC
GREEN
WHITE
WHITE
BLOWER RECEPTACLE
BLOWER
POWER SUPPLY
WHITE
BLACK
BLACK
BLACK BLACK
BLACK
BLACK
Figure 8.32
