51
EM-485T
Beginning Manufacturing Date: Sept 2000
Ending Manufacturing Date: Active

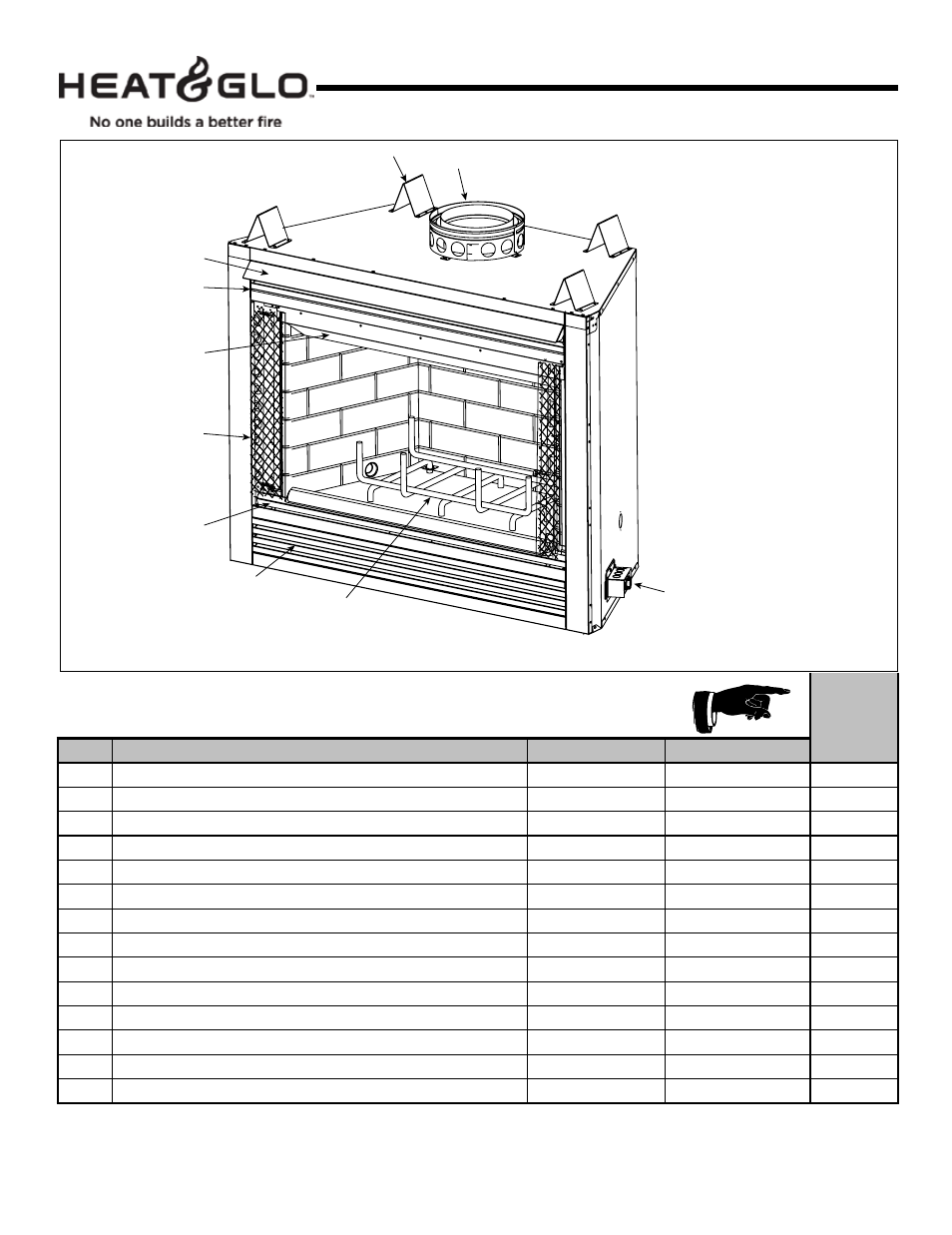

42 in. Master Circulating Fireplace
Service Parts
1
2
3
4
5
6
10
9
8
7
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement
parts for your appliance please provide model number and serial number. All parts listed
in this manual may be ordered from an authorized dealer.
Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
1 8 in. Starter Section Assembly 22069B Y
2 Top Standoff Qty. 4 req 4044-111
3 Hood 31683
4 Upper Grille Assembly 31697 Y
5 Smoke Shield 35221
6 Firescreen Assembly Qty. 2 req 29246 Y
Firescreen Ring Qty. 9 req 11857B
Firescreen Handle 10002
7 Hearth Filler 30332
8 Lower Grille Assembly 31680
9 Grate GR24 Y
10 Junction Box 21878 Y
Installation Manual 33056
Additional service parts on following page
Heat & Glo • EM-415, EM-485 • 33056 • Rev AF 7/12
•
D. Service Parts Continued
