49
1
2
3
4
5
6
10
9
8
7

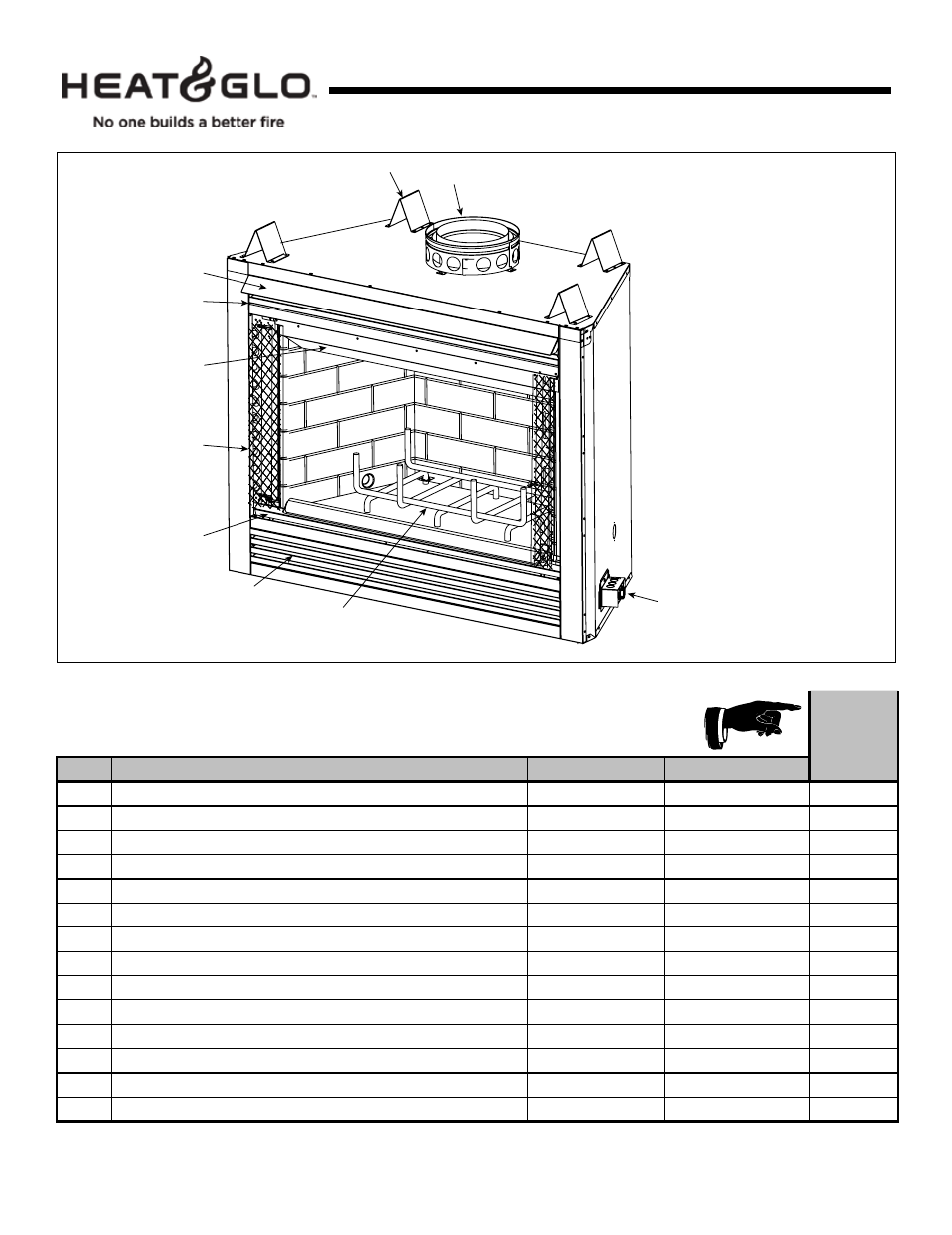

Service Parts Diagram
36 in. Energy Master Circulating Fireplace
EM-415
Beginning Manufacturing Date: Aug 1999
Ending Manufacturing Date: Active
Service Parts
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement
parts for your appliance please provide model number and serial number. All parts listed
in this manual may be ordered from an authorized dealer.
Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
1 8 in. Starter Section Assembly 22069B Y
2 Top Standoff Qty. 4 req. 4044-111
3 Hood 31682
4 Upper Grille Assembly 31696
5 Smoke Shield 31191
6 Firescreen Assembly Qty. 2 req. 26053 Y
Firescreen Ring Qty. 8 req. 11857B
Firescreen Handle 10002
7 Hearth Filler 30331
8 Lower Grille Assembly 31679
9 Grate GR23 Y
10 Junction Box 21878 Y
Installation Instructions and Owner’s Manual 33056
Additional service parts on following page
Heat & Glo • EM-415, EM-485 • 33056 • Rev AF 7/12
•
D. Service Parts
