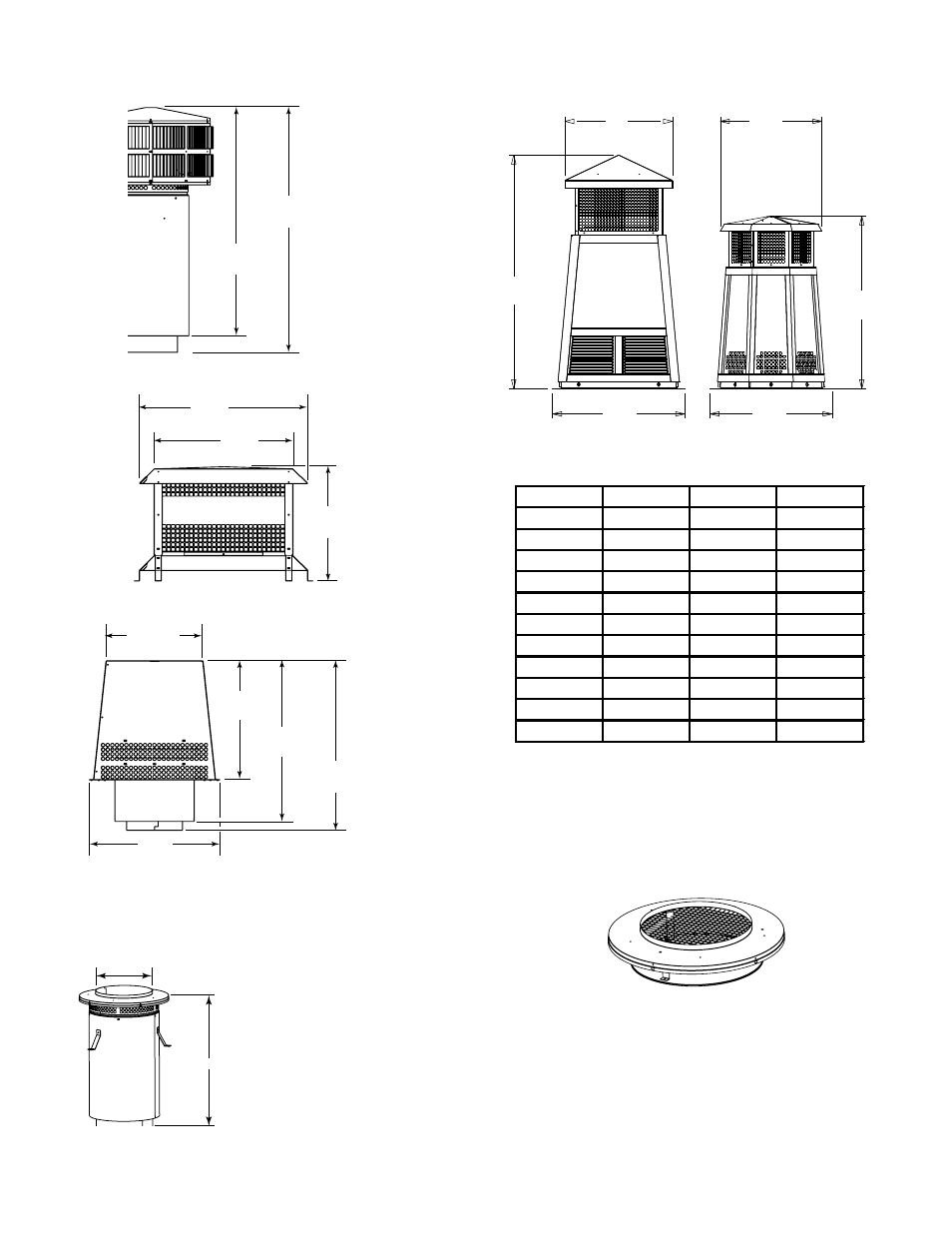

C. Chimney Components
Heat & Glo • EM-415, EM-485 • 33056 • Rev AF 7/12
•
TR342 Round Telescoping Termination Cap
34-3/4 in.
(883 mm)
32-1/2 in.
(826 mm)
ST375 Square Termination Cap
23 in.
(584 mm)
19 in.
(483 mm)
15-5/8 in.
(397 mm)
TS345/TS345P Square Termination Cap
13 1/4 in.
(337 mm)
18 in.
(457 mm)
16 1/4 in.
(413 mm)
26 1/2 in.
(673 mm)
28 5/8 in.
(727 mm)
26 in.
7 3/4 in.
CT-3A
TR-TVK
DTO134 A B C
in 34 20 24
mm 864 508 610
DTO146
in. 46 22.7 26
mm 1168 576 660
DTS134
in 34 21.18 24
mm 864 538 610
DTS146
in 46 21.18 26
mm 1168 538 660
B
C
B
A
C
A
DTO134/DTO146 DTS134/DTS146 Decorative Caps

