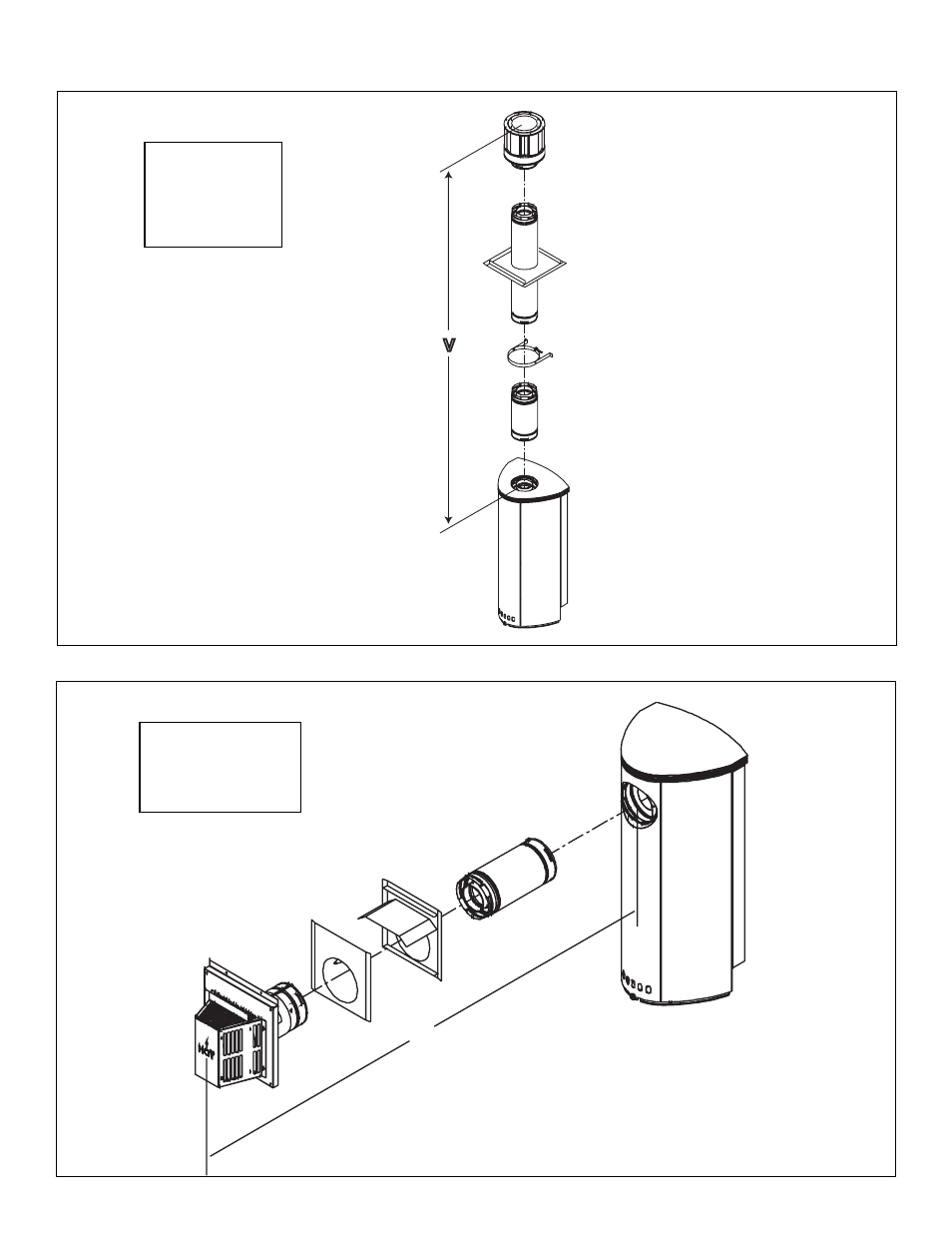

Figure 4.2

Figure 4.3

V

H

STRAIGHT UP

VERTICAL FLUE

V

3.6M Minimum

11.8M Maximum

STRAIGHT OUT

HORIZONTAL FLUE

H

610 mm Maximum

For Natural and Propane Gases.

For Natural and Propane Gases.

D. Flue Diagrams
