LEFT SUB
LFE OUT
+ – + –
+ –
+ –
+ –
+ –
+ –
RIGHT
SURROUND FRONT CENTER
88 9
Use this installation method for receivers and preamp/processors that have a dedicated
subwoofer output with low-pass filtering (also called bass management). If the dedicated
subwoofer output does not have low-pass filtering, follow the instructions in Connecting
the Subwoofer to a Receiver or Preamp/Processor With Line Outputs, on page 9.
Use the LFE (purple) connector of the supplied combination LFE and trigger cable to
connect the HKTS200SUB’s Line-Level LFE In Jack
5 to the dedicated subwoofer output
(or LFE output) of your receiver or preamp/processor.
Connect each satellite speaker and the center speaker to the corresponding speaker
terminals on your receiver or amplifier.
In your receiver or preamp/processor’s setup menu, configure it for Subwoofer ON, and
set the front left, front right, center, and surround speakers to Small. After you have made
and verified all connections, plug the HKTS200SUB’s AC Power Cord
8 into an active AC
outlet.

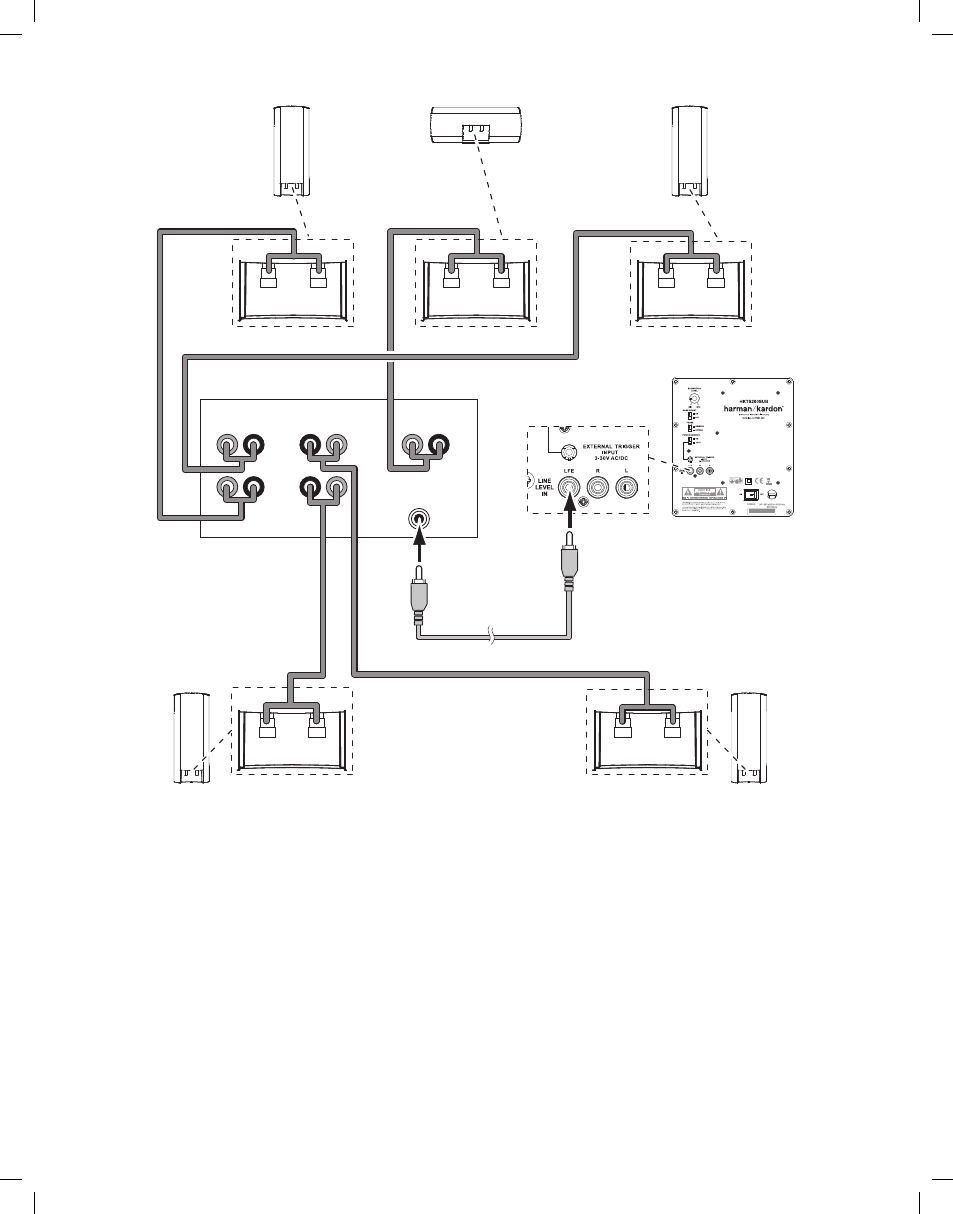

Connecting the Subwoofer to a Receiver or Preamp/Processor With a Dedicated Subwoofer Output
Left Front
Receiver
Left
Surround
Right
Surround
Subwoofer
Center Right Front
Front Left
Speaker Cable
(White Bands)
LFE/Trigger Cable
(Purple Ends)
Surround Right
Speaker Cable
(Gray Bands)
Surround Left
Speaker Cable
(Blue Bands)
Center
Speaker Cable
(Green Bands)
Front Right
Speaker Cable
(Red Bands)
