PL0004-01001
LEFT LFE SUB
OUTPUT
12V
TRIGGER
OUTPUT
+ – + –
+ –
+ –
+ –
+ –
+ –
RIGHT
SURROUND FRONT CENTER
10 10 11

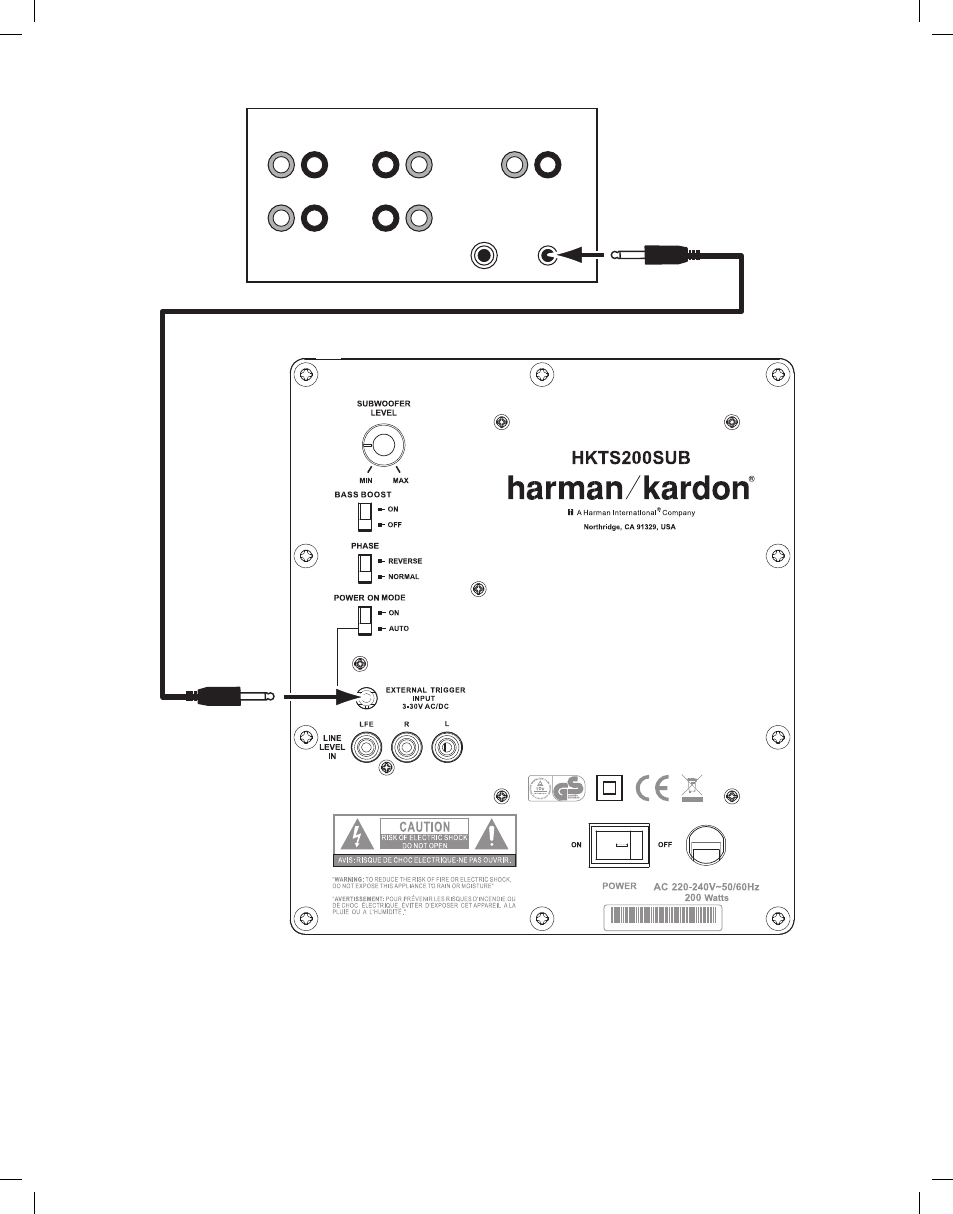

If your preamp/processor or another audio/video component has a trigger voltage
connection that supplies between 3 and 30V (AC or DC), connect it to the HKTS200SUB’s
External Trigger Input Connector
4 . If the component’s trigger voltage connection has
a 3.5mm mini jack you can use the supplied combination LFE/trigger cable to make the
connection.
Connecting to a Trigger Voltage Source
Receiver
Subwoofer
Trigger Cable
(Black Ends)
